Sony DCR-PC103E - Board

2-7
DCR-PC103E/PC104E/PC105/PC105E

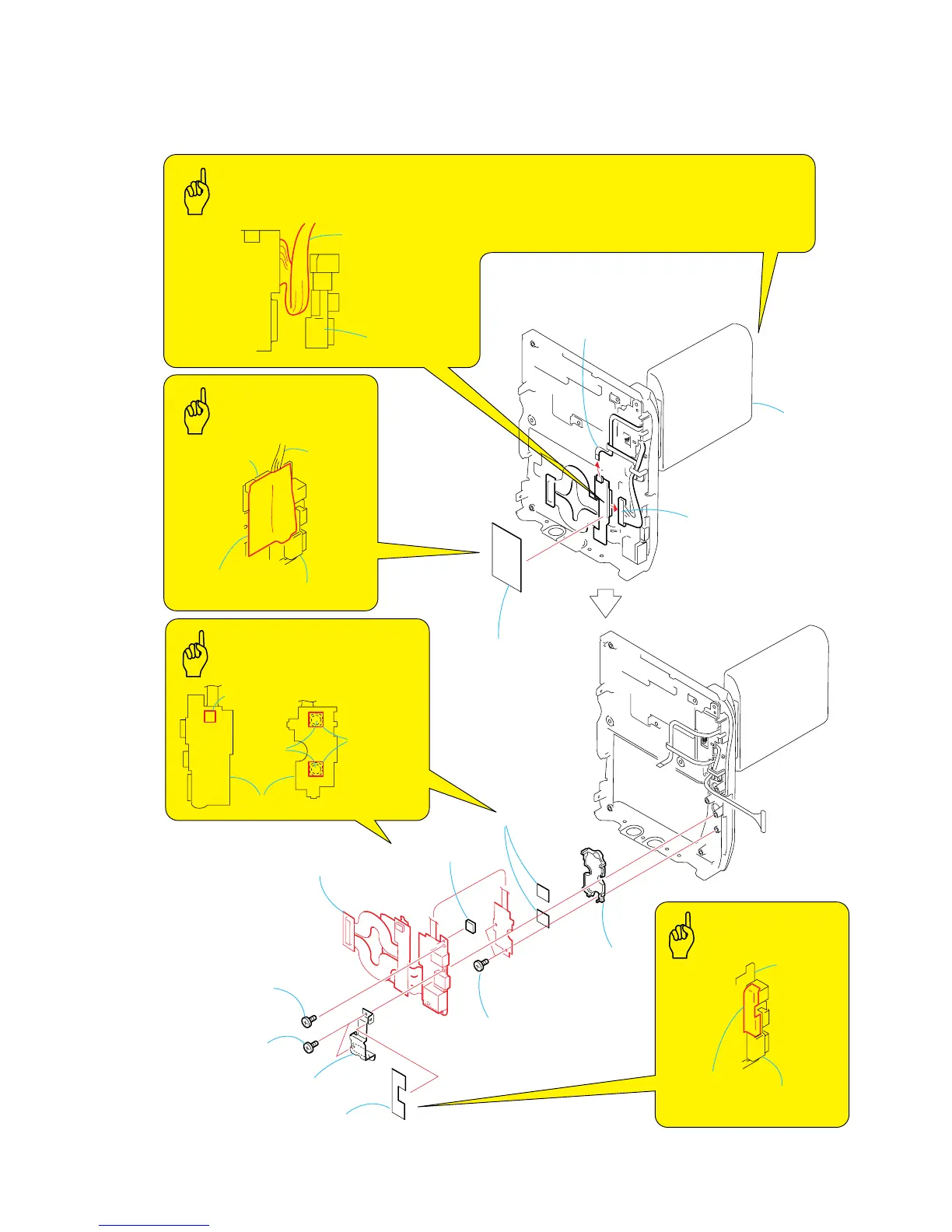

2-8. BJ-004 BOARD
6 Fixed DC connector plate
2 Harness
fixed sheet
3 Harness (PB-052)
(20P)
LCD unit
4 Harness protection sheet
Cushion (CF)
Fixed DC
connector plate
Switch
block
Harness
Harness
Harness fixed sheet
Fixed DC connector plate
Fixed DC
connector plate
When attaching the harness flixed sheet, insert the harness
in the groove in between the fixed DC connector plate and the
BJ-004 board.
This attachment work must be executed while the LCD unit is
in the opened condition.
9 CF button
0 Muffle sheet
(small)
qa Cushion (CF)
qs BJ-004 board
Caution
Caution
Caution
1 FP-697 flexible board
(6P)
BJ-004 board
BJ-004
board
BJ-004 board
Muffle sheet
(small)
BJ-004
board
8 Two screws
(M1.7
× 2.5),
lock ace, p2
5 Two screws
(M1.7
× 2.5),
lock ace, p2
7 Screw
(M1.7
× 2.5),
lock ace, p2
Caution
Harness protection
sheet
