1-1. SERVICE NOTE
1. POWER SUPPLY DURING REPAIRS
In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4V), the power is shut off so
that the unit cannot operate.
This following two methods are available to prevent this. Take note of which to use during repairs.
Method 1.
Use the AC power adaptor (AC-L10, AC-VQ800 etc.).
Method 2.
Connect the servicing remote commander RM-95 (J-6082-053-B) to the LANC jack, and set the commander switch to the “ADJ” side.
2. TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
1 Only for DCR-PC105/PC105E, open the flash.
2 Only for DCR-PC105/PC105E, refer to “3. DISCHARGING OF THE FLASHLIGHT POWER SUPPLY CAPACITOR” to discharge
the flash power supply capacitor.
3 Refer to 2-2., 2-3. and 2-4. to remove the cabinet (front) assembly, cabinet (G) assembly and cabinet (L).
4 Refer to 2-6. to remove the cabinet (R) section.
5 Refer to 2-13. and 2-14. to remove the cabinet (rear), control switch block (PS4400).
6 Refer to 2-15., 2-16. and 2-17. to remove the ST-084 board and LENS/EVF/ST section.
7 Refer to 2-28., 2-29. to remove the VC-319 board and mechanism deck (Z100).
8 Supply +4.5V from the DC power supply to the loading motor and unload with a pressing the cassette compartment.
3. HOW TO OPEN THE FLASH WHEN THE FLASH DOSEN’T OPEN (DCR-PC105/PC105E)
1 Refer to 2-3. and 2-4. to remove cabinet (G) assembly and cabinet (L).
2 Push the part pointed out with the arrow in the direction of the arrow.

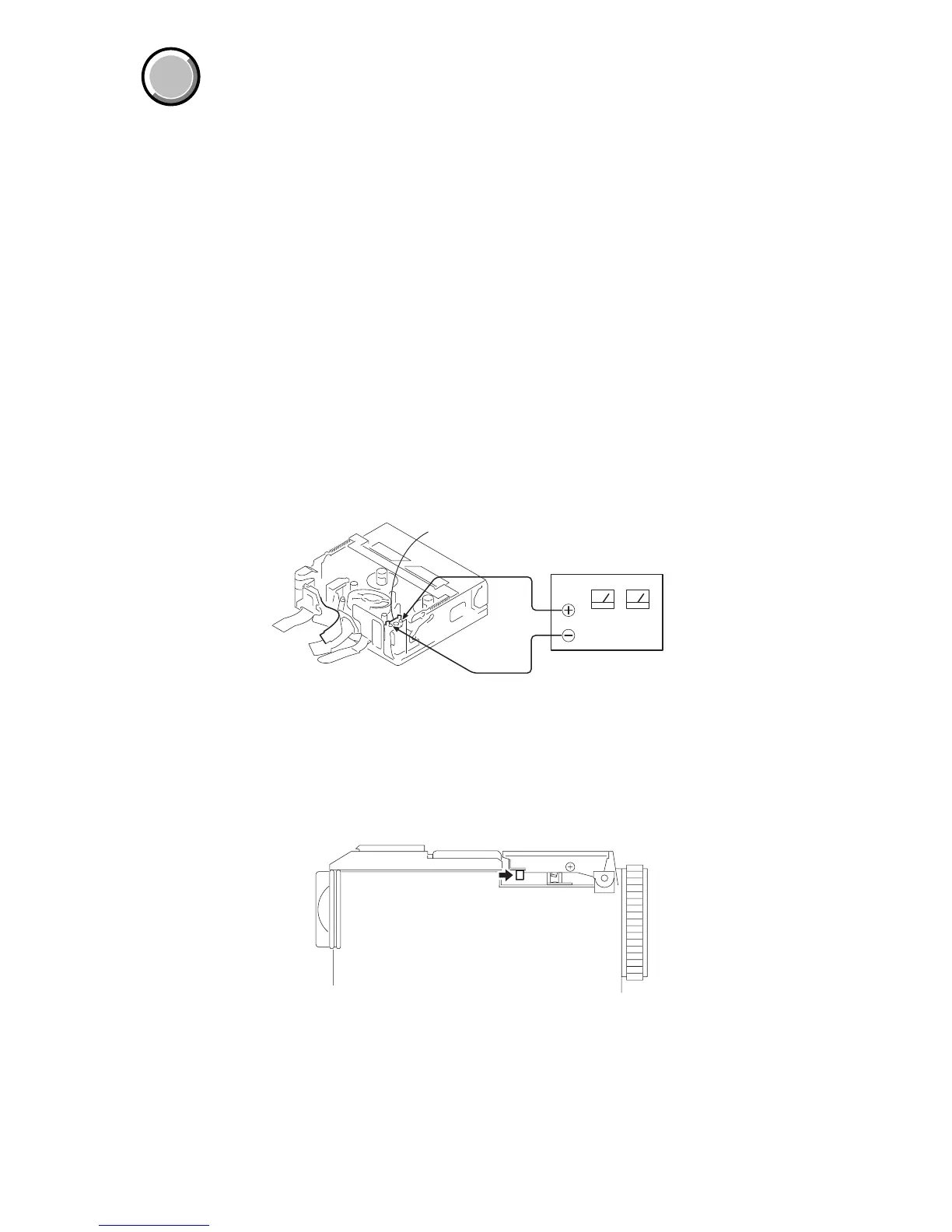

DC power supply (+4.5Vdc)
Loading motor
