Sony DCR-PC103E - Hinge Section

2-9
DCR-PC103E/PC104E/PC105/PC105E

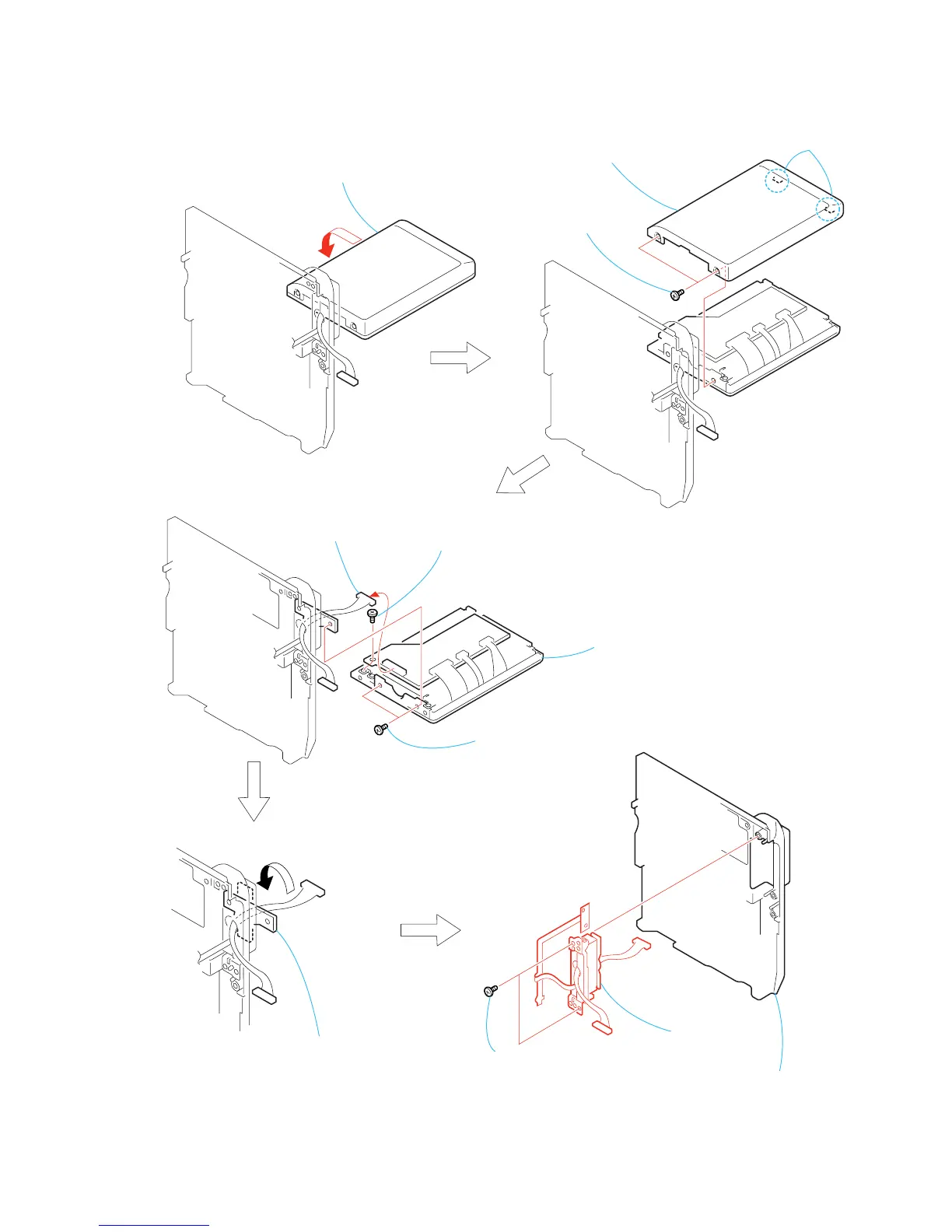

2-10.HINGE SECTION
PD-193
PD-193
qs Hinge section
9 Turn over the LCD hinge assembly
in the direction of the arrow.
qa Cabinet (R)
assembly
1 Remove the LCD unit
in the direction of the arrow.
4 LCD cabinet (R)
8 LCD cabinet section
3 Two claw
s
2 Two screws
(M1.7
× 2.5),
lock ace, p2
6 Two screws
(M1.7
× 2.5),
lock ace, p2
0 Two screws
(M1.7
× 4),
lock ace, p2
5 Screw
(M1.7
× 2.5),
lock ace, p2
7 Harness (PB-052)
(20P)
