Sony DCR-PC103E - Cabinet (R) Section-1

5-8
DCR-PC103E/PC104E/PC105/PC105E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

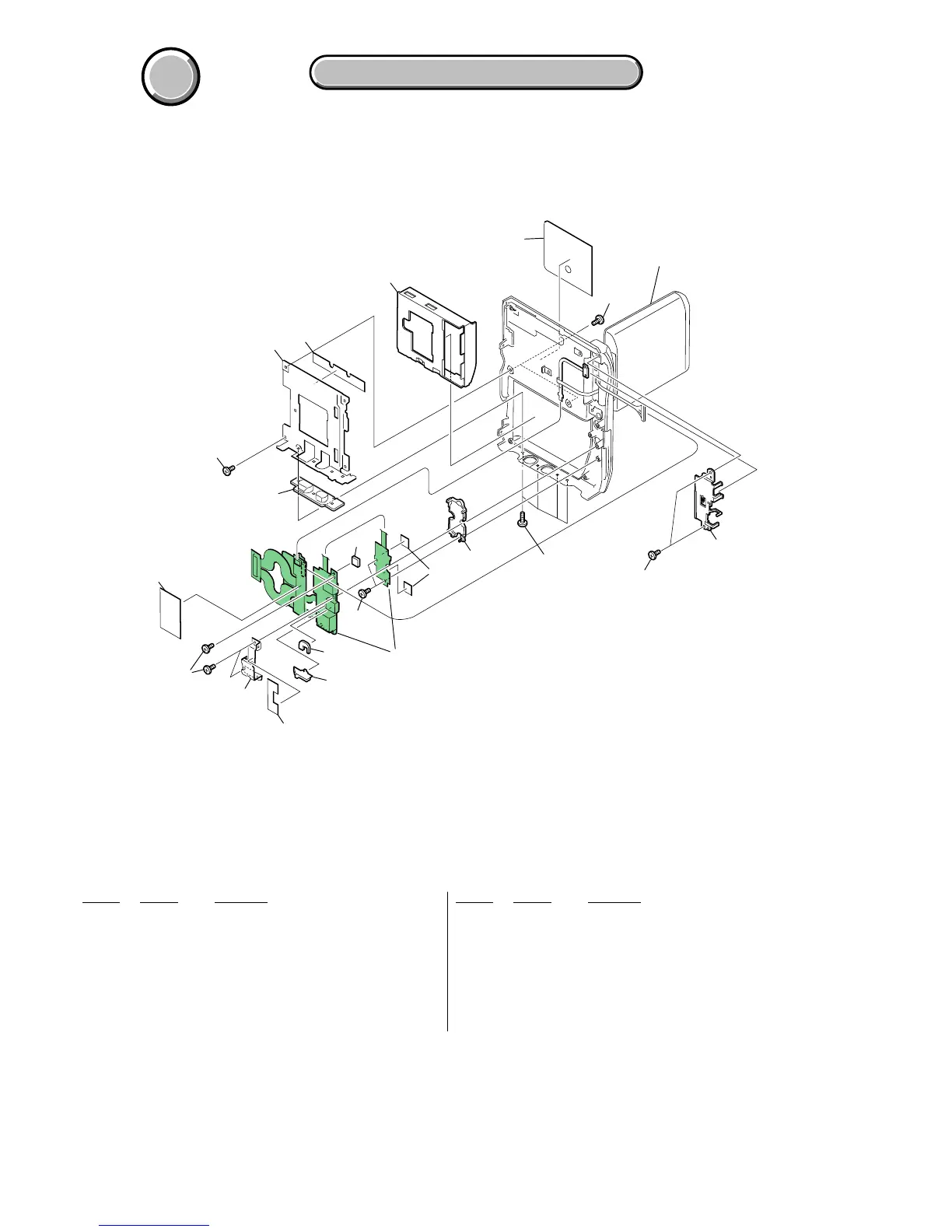

5-1-6. CABINET (R) SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
251 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
252 3-082-526-01 PLATE, FIXED, DC CONNECTOR
253 A-7016-629-A BJ-004 BOARD, COMPLETE
254 3-082-482-01 SCREW
255 3-082-523-01 BRACKET, BATTERY
256 3-082-524-02 HOLDER, BATTERY
257 3-076-228-01 SHEET (SMALL), MUFFLE
258 3-082-480-01 BUTTON, CF (PC105/PC105E)
258 3-082-480-11 BUTTON, CF (PC103E/PC104E)
259 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
260 X-3953-360-2 PLATE ASSY, BLIND
261 3-082-531-11 SHEET, GUARD
262 X-3953-489-1 GUIDE ASSY, LIGHT, LED
263 3-084-055-02 CUSHION (CF)
Cabinet R section-2
(See page 5-9)
ns
ns
263
ns
251
262
259
258
257
251
254
251
252
251
255
256
253
251
261
260
ns
