2-15
DCR-PC103E/PC104E/PC105/PC105E

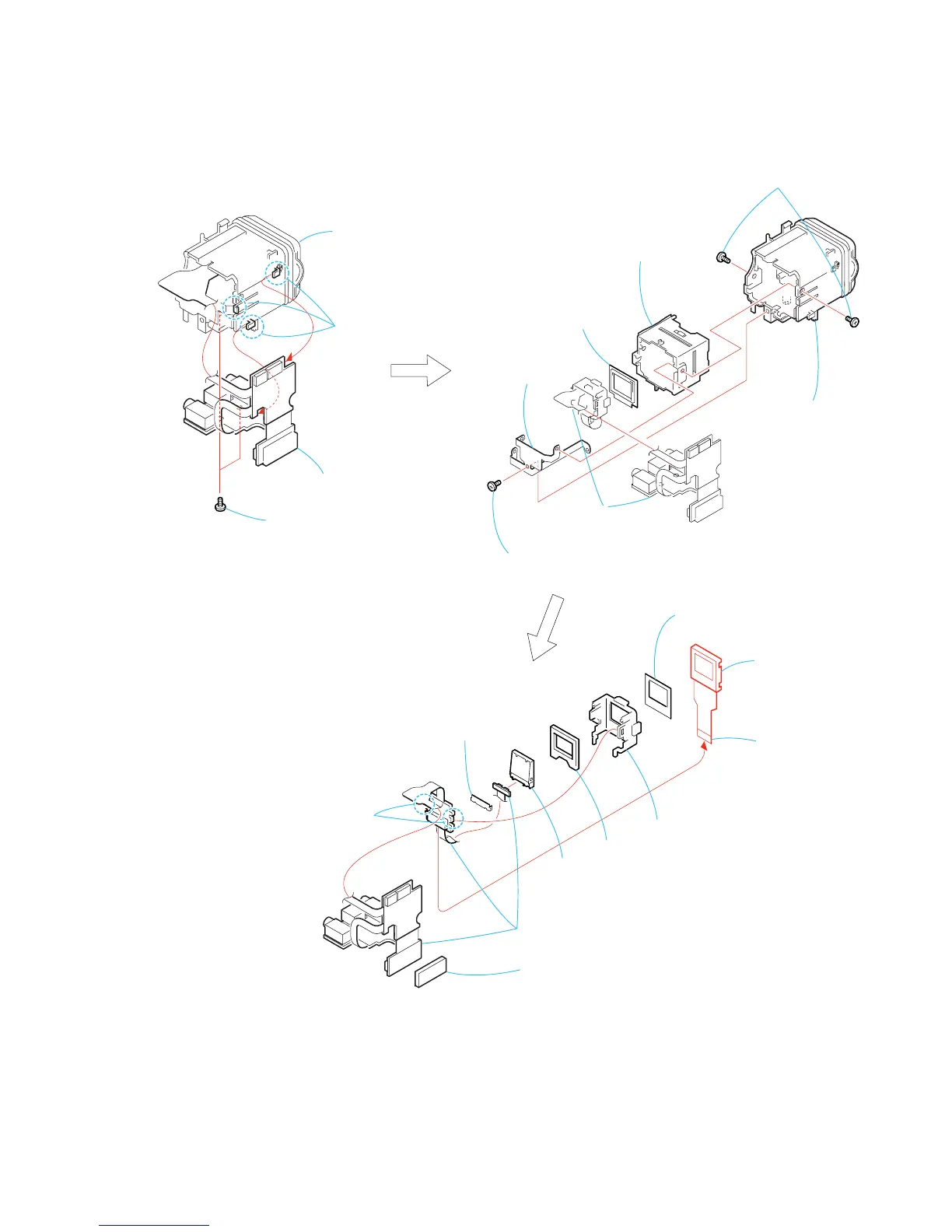

2-19. VF-156 BOARD
qa Two claws
qs LCX032AN-5
(16P)
qd LCX032AN-5
qk BL cushion B
qf Connector retainer cushion
1 Two tapping screws
(M1.7 × 4)
4 Tapping screw
(M1.7 × 4)
7 VF sleeve
guide assembly
8 VF assembl
y
6 VF fixed palate
2 Three claws
9 LCD cushion
3 VF-156 board,
Connector retainer cushion
w; BL cushion L
qj Light guide plate block (0.44)
ql BL unit
qg VF-156 board
qh BL retainer
sheet metal
5 Two screws
(M1.7 × 2.5),
lock ace, p2
0
EVF section
