Sony DCR-SR190E - LCD Block Disassembly

2-8E
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
EXPLODED VIEW
HARDWARE LIST

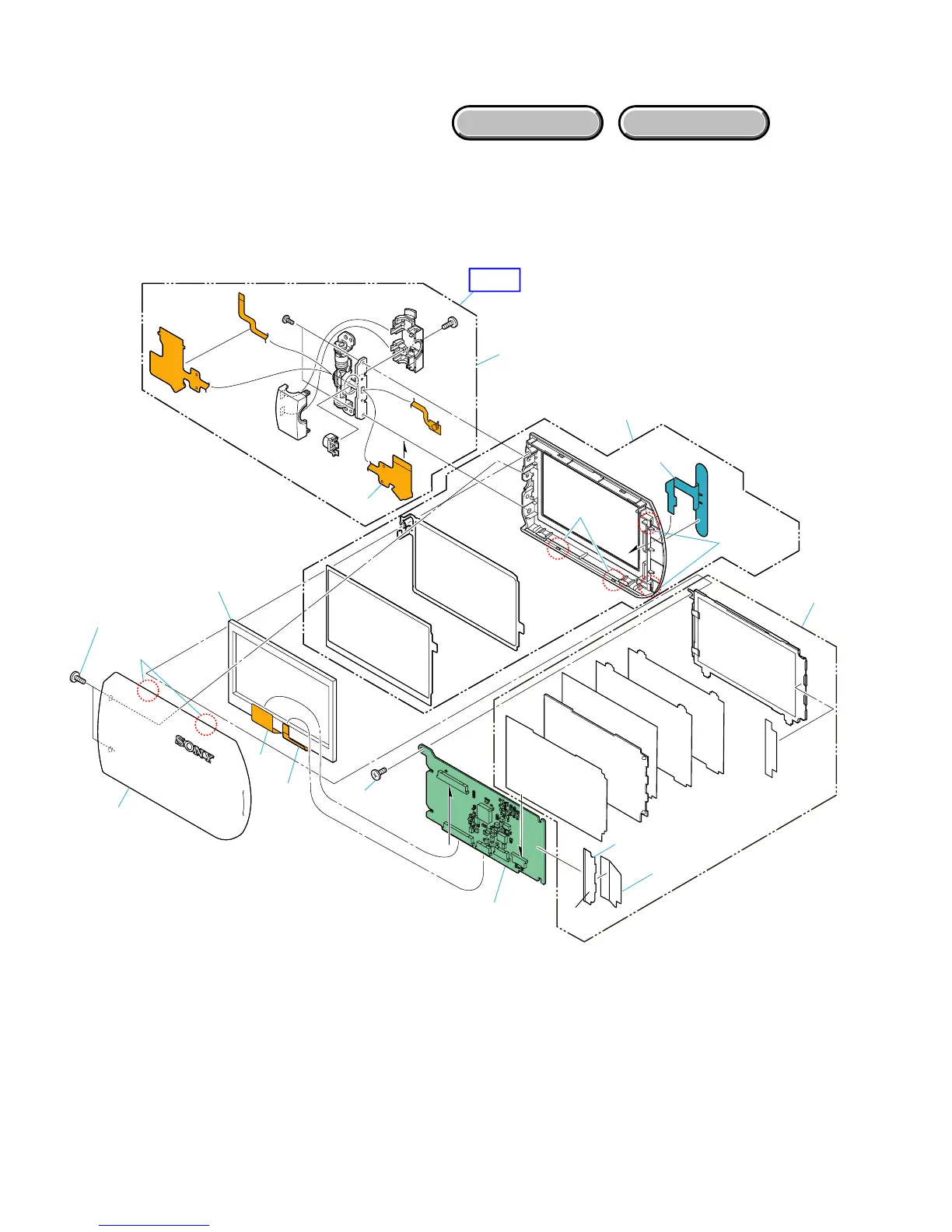

2-1-7. LCD BLOCK
A
B
A
B
1 Hinge Block
2 LCD
3 PD-324 Board
1-1 (#2)
1-2 (claw)
2-4 (#11)
2-3
2-2
2-5
2-1
3-3
3-1
3-2
1-5
1-3 (claw)
1-4 (claw)
1-6
HELP
Follow the disassembly in the numerical order given.
1 Hinge Block (1-1 to 1-6)
2 LCD (2-1 to 2-5)
3 PD-324 Board (3-1 to 3-3)
