DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
HELP
Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.

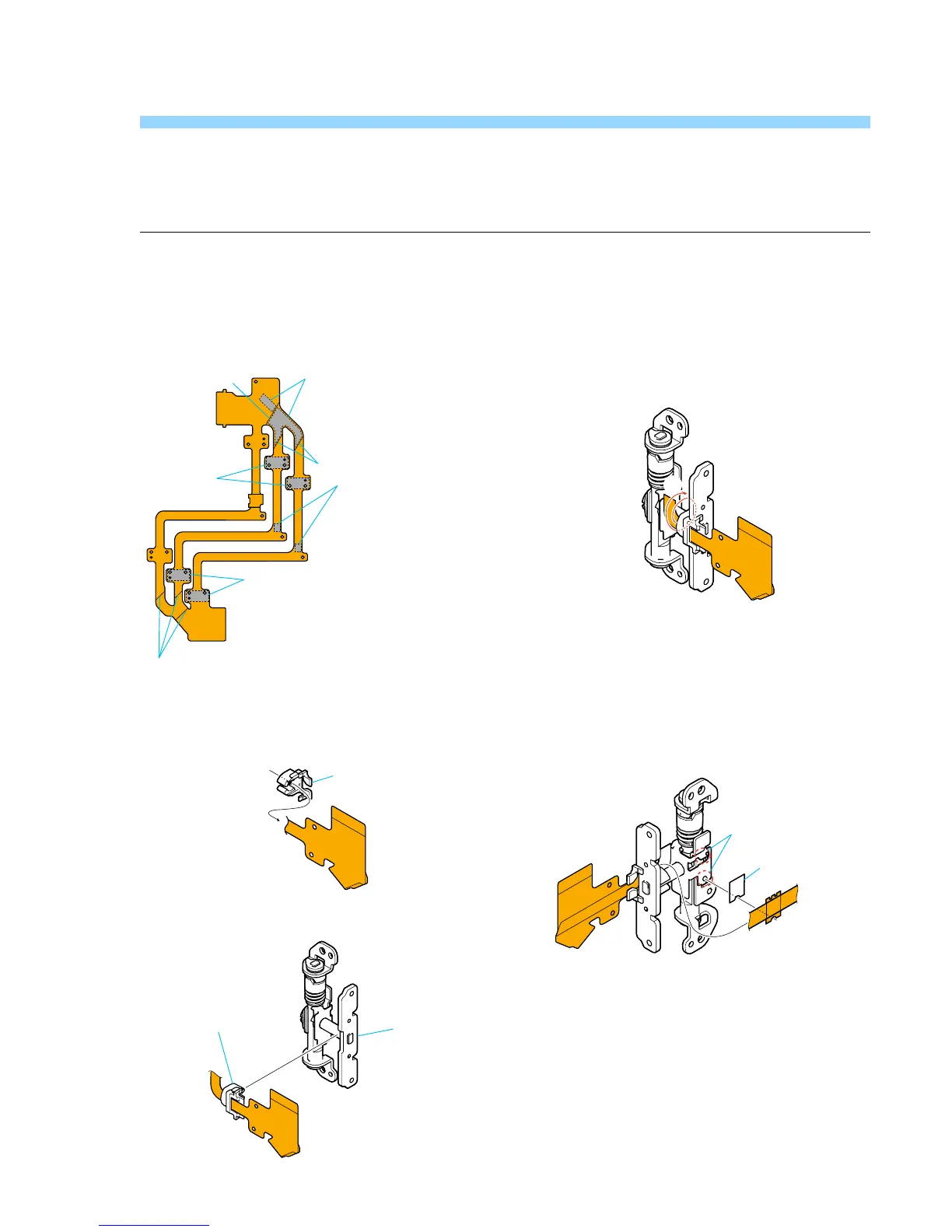

THE METHOD OF ATTACHMENT OF FP-610 FLEXIBLE BOARD AND FP-621
FLEXIBLE BOARD
Adhesive tape
Adhesive tapeAdhesive tape
1 Fold dotted line parts of the FP-610 flexible board
as shown in figure.
5 Put the adhesive sheet and FP-610 flexible
board on the hinge assy according to the
position of the boss.
Fold
Boss
Hinge assy
2 Pass the FP-610 flexible board through
the flexible clamp.
3 Install the flexible clamp in the hinge assy.
Flexible clamp
Flexible clamp
4 Roll the the FP-610 flexible board 1.5 times,
in the direction of arrow
A .
Fold
Fold
Adhesive tape
Adhesive tape
A
