DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2

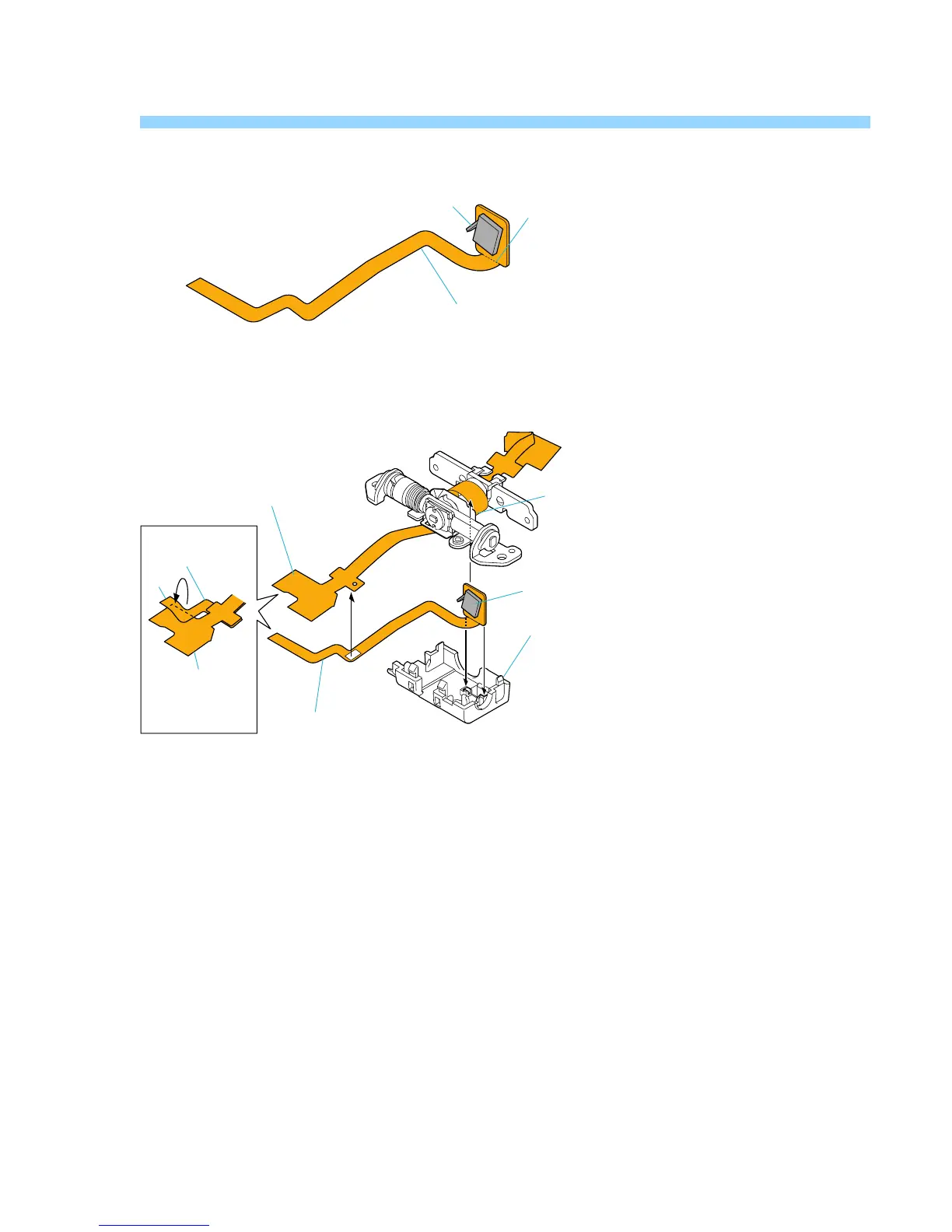

6 Fold dotted line parts of the FP-621 flexible board as shown in figure.
7 Install the FP-621 flexible board in the hinge cover (C) as shown in figure.
8 Install the hinge cover (C) in the hinge assy as shown in figure.
Valley fold
Switch
Hinge cover (C)
FP-610 flexible board
Switch
Plate of hinge
FP-621 flexible board
FP-610 flexible
board
Fig.1
FP-621 flexible
board
a
FP-621 flexible board
9 Place the end (a) of FP-621 flexible board on the FP-610 flexible board as shown in Fig.1
