Sony DCR-SR190E - LCD Block

5-8
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-887-999-01 FRONT FRAME (2.7J)
252 2-666-807-02 AG SHEET (2.7)
253 2-666-802-01 PRISM SHEET V (2.7)
254 2-666-803-01 PRISM SHEET H (2.7)
255 2-666-804-01 DIFFUSION SHEET (2.7)
256 2-666-801-01 LIGHT GUIDE (2.7)
257 2-894-347-01 REFLECTION SHEET (2.7J)
* 258 3-106-126-01 SHEET (2370), P
* 259 2-638-780-01 CLIP
260 A-1244-660-A PD-324 BOARD, COMPLETE
261 A-1246-461-A CABINET (C (SR-190)), (P) (SR190E)
261 A-1246-460-A CABINET (C (SR-200)), (P)
(SR200/SR200C/SR200E)
261 A-1246-459-A CABINET (C (SR-290)), (P) (SR290E)
261 A-1246-458-A CABINET (C (SR-300)), (P)
(SR300/SR300C/SR300E)
263 3-098-648-01 CUSHION (2.7 (211)), TP
* 264 3-098-244-01 PLATE (2370), LCD GROUND
265 3-098-633-01 CABINET (M (2370)), P (SR300: J)
265 3-098-633-11 CABINET (M (2370)), P (EXCEPT SR300: J)
266 1-479-926-11 SWITCH BLOCK, CONTROL (SB22100)
267 3-098-256-01 COVER (M), HINGE
268 X-2108-475-1 HINGE ASSY
269 2-668-087-01 CLAMP, FLEXIBLE
270 3-098-263-01 COVER (C), HINGE
(SR290E/SR300/SR300C/SR300E)
270 3-098-263-11 COVER (C), HINGE
(SR190E/SR200/SR200C/SR200E)
271 A-1244-634-A FP-621 FLEXIBLE BOARD, COMPLETE (Note)
272 1-871-457-11 FP-610 FLEXIBLE BOARD (Note)
* LCD901 A-1202-066-A TP BLOCK ASSY (27ESTMG07)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
A
B
A
B
266
265
271
(Note)
267
268
269
270
272
(Note)
264
263
261
#2
#2
LCD901
#14
to CK-175 Board
CN6411
()
to CK-175 Board
CN6409
()
#11
251
252
253
254
255
256
257
258
259
260
Note : FP-610フレキシブル基板,FP-621フレキシブル基板取
付時はヘルプを必ずお読み下さい。
Note : Be sure to read “HELP” when you install the FP-610
flexible board and FP-621 flexible board.

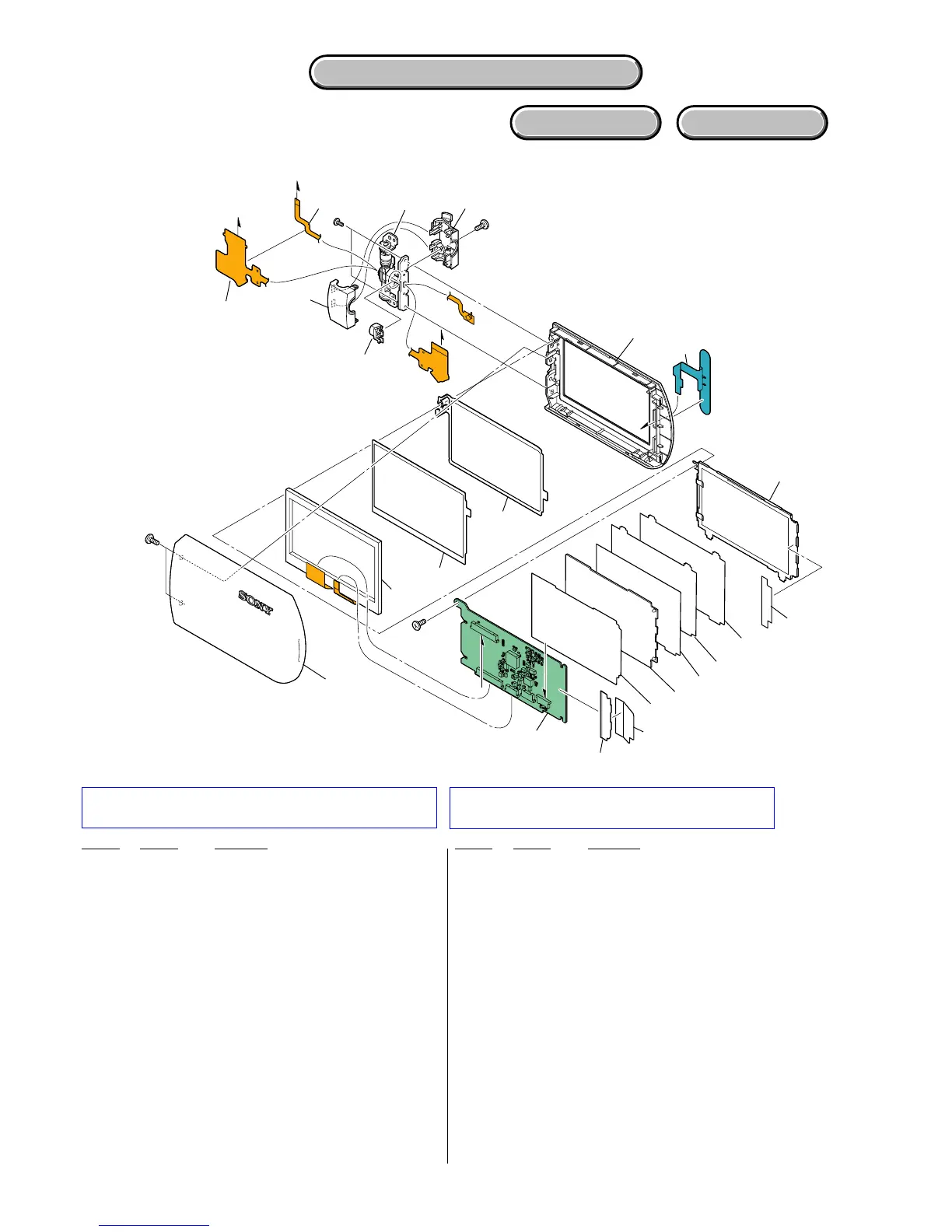

5-1-7. LCD BLOCK
DISASSEMBLY
HARDWARE LIST
