Sony DCR-SR190E - Switch Block

5-9
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2

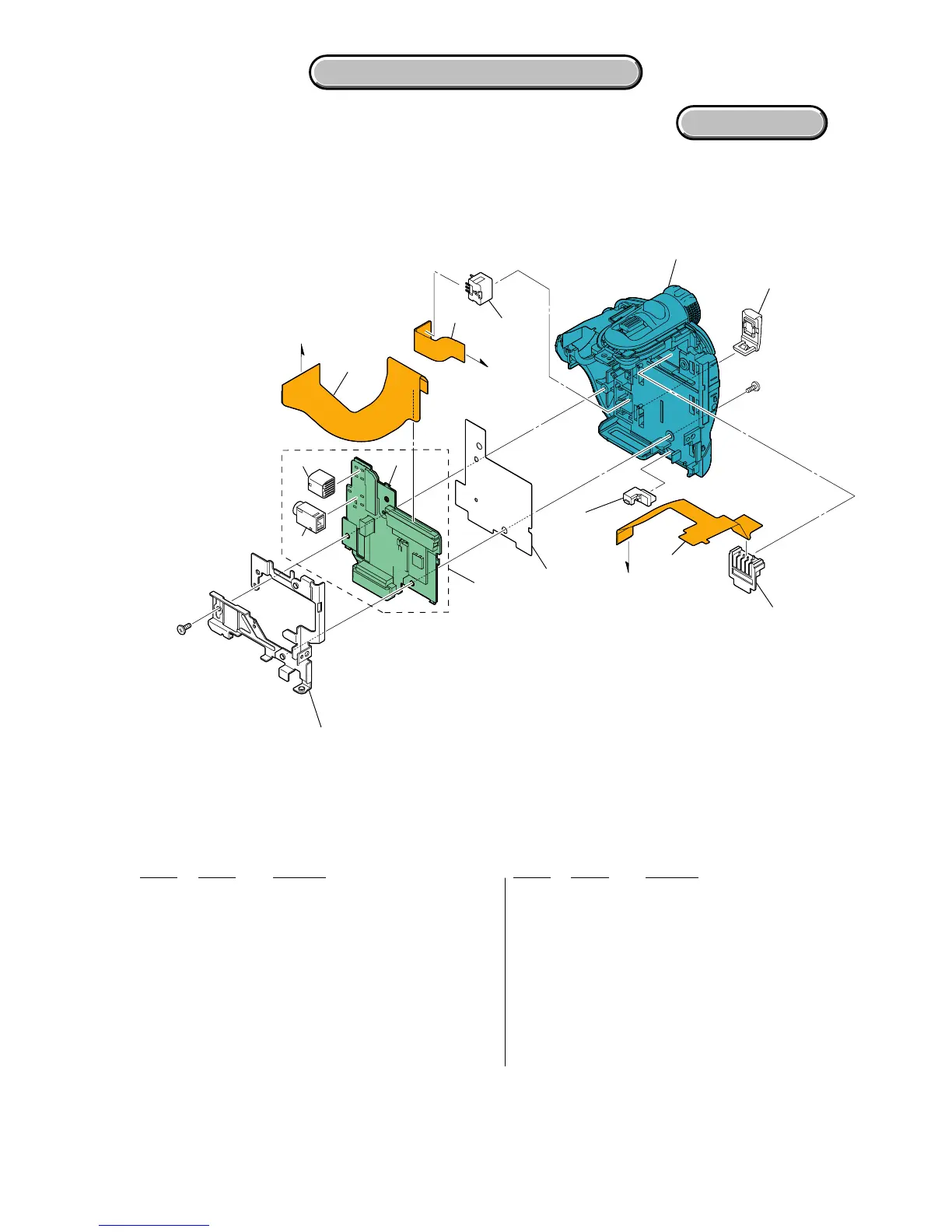

5-1-8. SWITCH BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
301 1-480-010-11 SWITCH BLOCK, CONTROL (PS23700)
(SR300: J)
301 1-480-010-21 SWITCH BLOCK, CONTROL (PS23700)
(SR290E/SR300: EXCEPT J/SR300C/SR300E)
301 1-480-010-31 SWITCH BLOCK, CONTROL (PS23700)
(SR190E/SR200/SR200C/SR200E)
302 3-098-172-01 COVER, DC-IN
303 1-871-456-11 FP-609 FLEXIBLE BOARD
* 304 3-098-246-01 CLAW, LOCK
305 A-1244-884-A JK-326 BOARD, COMPLETE
306 X-2178-023-1 PLATE ASSY, BT BASE
307 1-871-458-11 FP-611 FLEXIBLE BOARD
308 1-871-459-11 FP-612 FLEXIBLE BOARD
0 BH001 1-780-064-21 BATTERY TERMINAL BOARD
CN7301 1-815-794-13 CONNECTOR (MULTIPLE) (AV OUT)
0 J001 1-815-792-11 CONNECTOR, DC-IN (7.2V)
J7301 1-793-995-21 JACK, SUPER SMALL TYPE (REMOTE)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
ns: not supplied
301
302
303
304
305
307
306
308
#12
#2
BH001
J001
J7301
CN7301
ns
ns
JK-326
FP-611
FP-609
to DR-042 Board
CN4005
()
to JK-326 Board
CN7309
()
to DR-042 Board
CN4007
()
HARDWARE LIST
Ver. 1.2 2007.06
