Sony DMW-C1 - DMW-C3 Audio Control Panel

Names and Functions of Parts
23

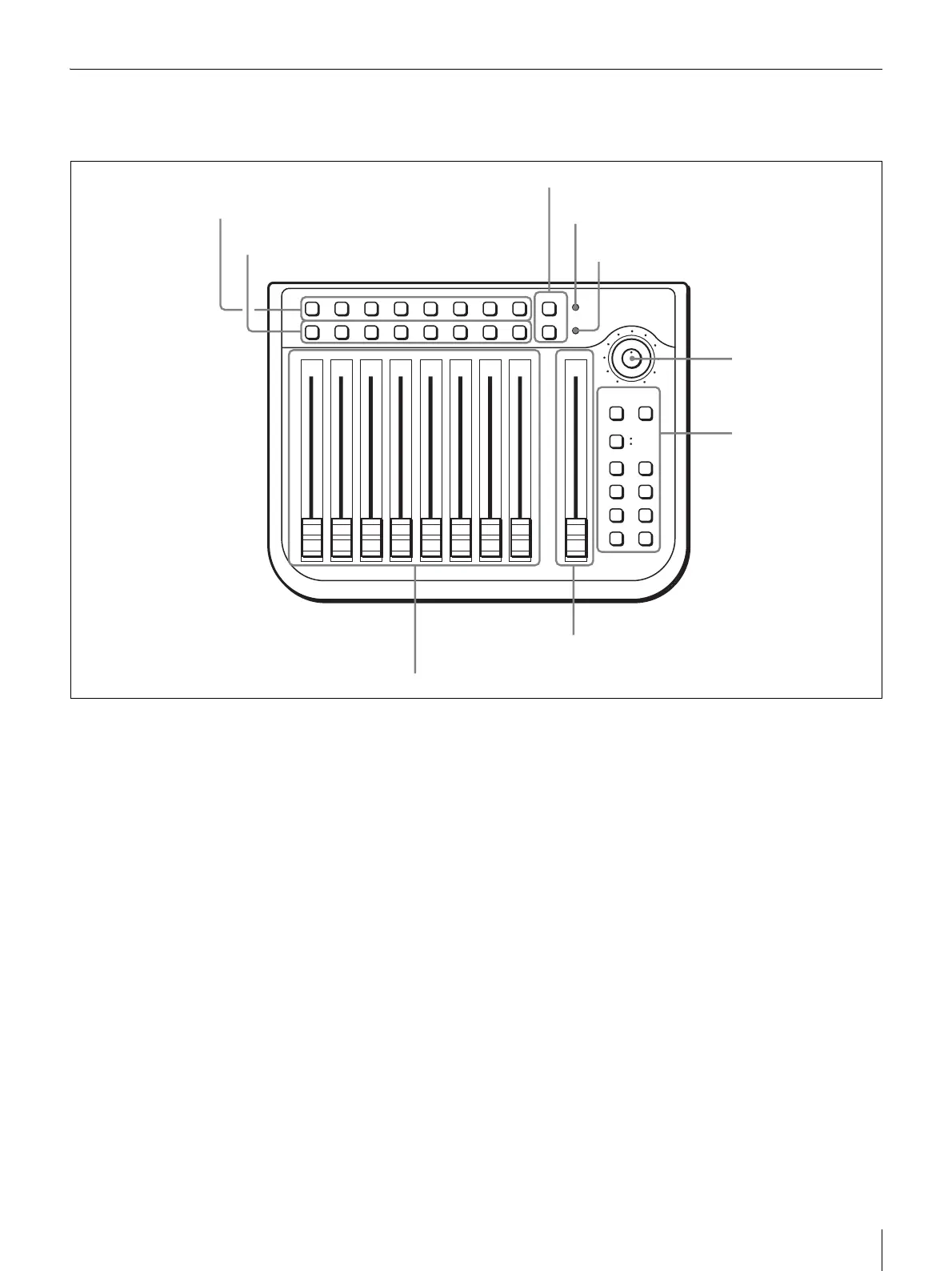

DMW-C3 Audio Control Panel
Operation panel
a Function buttons 1 to 8
A number of functions are assigned to these buttons.
Refer to the XPRI/XPRI NS Operation Manual for
information about functions assigned to the buttons.
b MUTING buttons 1 to 8
When you press one of these buttons, the corresponding
track is muted or the solo function is applied (the only
track played is the one whose button was pressed)
according to the mode of the MUTING button.
c FUNCTION/MUTING buttons
FUNCTION button: A number of functions are assigned
to this button.
Refer to the XPRI/XPRI NS Operation Manual for
information about functions assigned to the button.
MUTING button: Lights when the muting function is
enabled, and goes out when the solo function is
enabled.
d OVER indicator
Lights to indicate that the recording or playback audio
signals are over the threshold level.
e DATA indicator
Lights when audio data is recognized.
f MONITOR LEVEL knob
Adjusts the audio level of the headphones (when used in
the XPRI NS system).
g Monitor setting section
The buttons in this section allow you to select tracks to
monitor and the monitoring method.
SOLO RESET button: Cancels the solo function.
MONO button: The monitor output from the XPRI/XPRI
NS system becomes monaural.
BANK button and indicators: For the audio signals to
monitor, selects and indicates channels 1 to 4 or 5 to 8.
Monitor channel selection buttons: After selecting
channels 1 to 4 or 5 to 8 with the BANK button, press
the 1/5, 2/6, 3/7, 4/8 buttons (L/R) to select one or
several channels.
