Sony DP-RF6000 - 3 Exploded Views; Processor Section

20
DP-RF6000
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 3
EXPLODED VIEWS

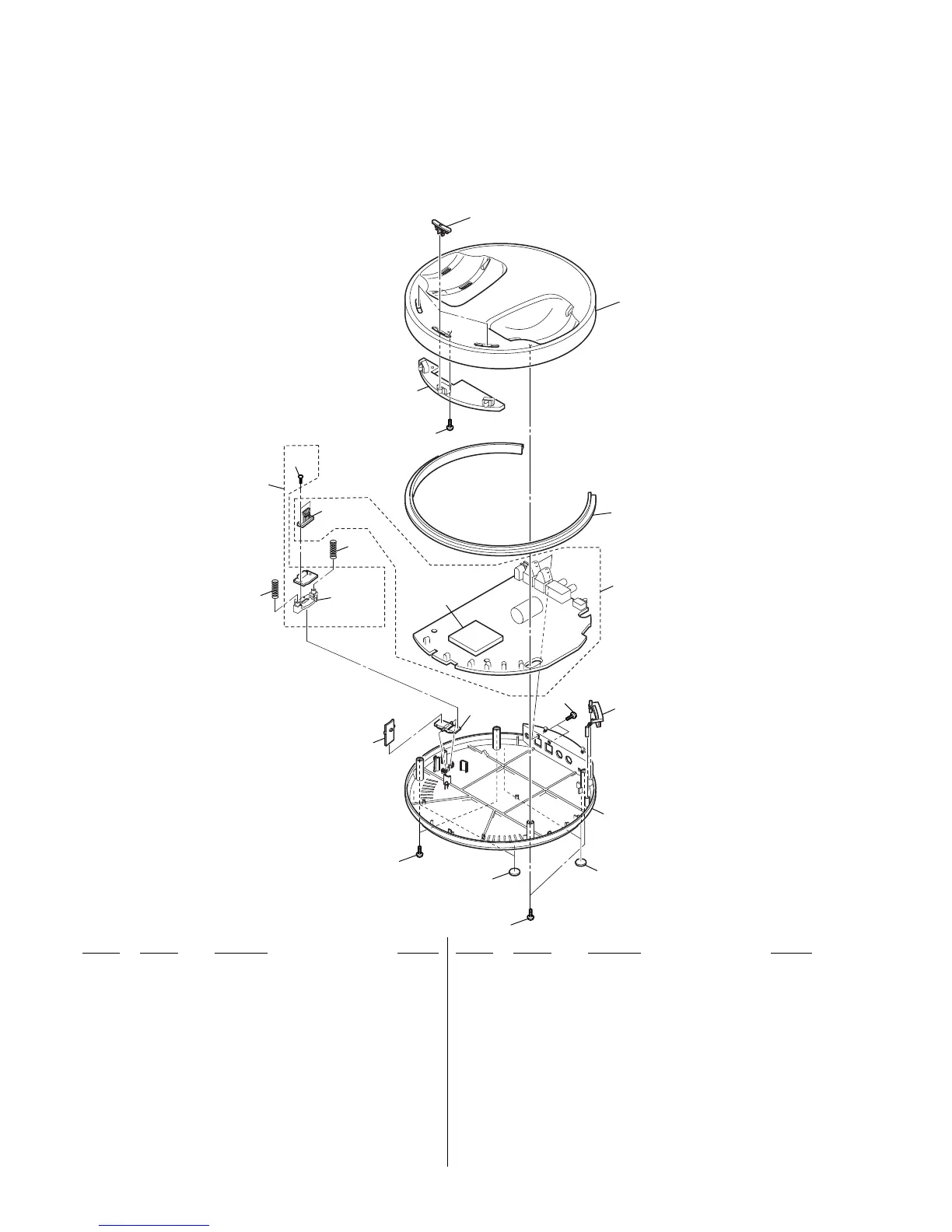

3-1. PROCESSOR SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.
4
3
5
8
7
1
1
1
2
2
6
7
10
9
17
11
12
13
14
15
16
not
supplied
1 3-254-151-01 SCREW (B2.6), (+) P TAPPING
2 4-984-729-11 FOOT, RUBBER
3 2-637-231-01 CABINET, LOWER
4 2-637-229-01 BUTTON
5 2-637-227-01 JOG
6 2-637-228-01 ACTUATOR
7 2-637-700-01 SPRING
8 3-254-058-11 SCREW
9 A-1179-107-A CHARGE BOARD, COMPLETE (US, CND)
9 A-1182-488-A CHARGE BOARD, COMPLETE (AEP, KR)
10 1-819-735-11 CONNECTOR, CHARGE
11 A-1176-713-A TX-RF BLOCK (US, CND)
11 A-1182-505-A TX-RF BLOCK (AEP)
11 A-1188-955-A TX-RF BLOCK (KR)
12 A-1176-716-A TX BOARD, COMPLETE (US, CND)
12 A-1182-486-A TX BOARD, COMPLETE (AEP)
12 A-1188-957-A TX BOARD, COMPLETE (KR)
13 2-637-223-01 PLATE, LIGHT GUIDE
14 3-253-143-01 SCREW (B2.6), (+) P TAPPING
15 A-1179-109-A FUNCTION BOARD, COMPLETE (US, CND)
15 A-1182-490-A FUNCTION BOARD, COMPLETE (AEP, KR)
16 2-636-164-01 CABINET, UPPER
17 2-637-225-01 KNOB
• Abbreviation
CND : Canadian model
KR : Korea model
