DPP-EX50 V2
6-6

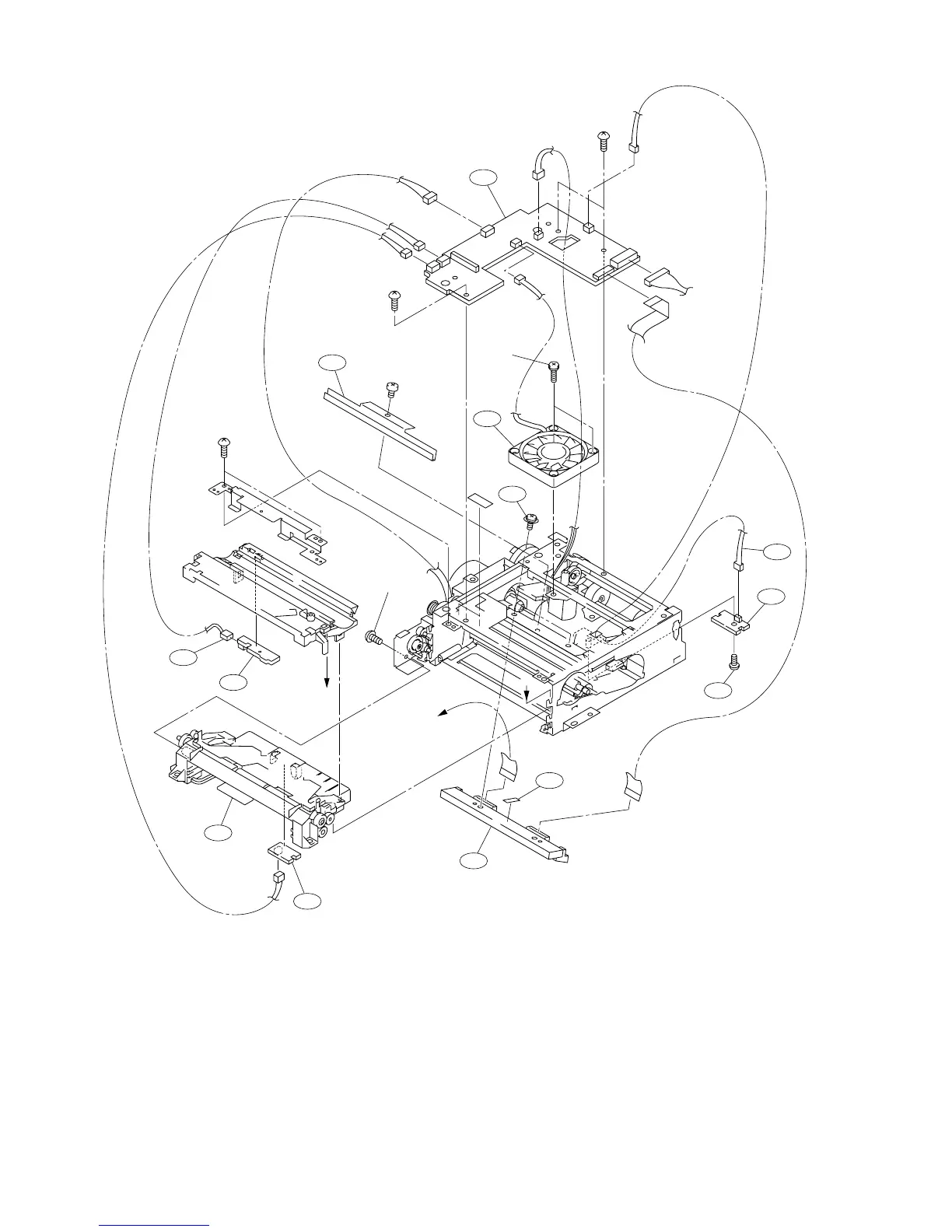

Mecha Deck Block 1
A
A
PS3 x 10
BVTT
2.6 x 5
BTP
2.6 x 8
P2.6 x 3
BVTT
2.6 x 5
BVTT
2.6 x 5
TO
Switching
Regurator
TO DK-46
CN202
201
202
203
204
205
206
207
208
209
212
210
211
213
No. Part No. SP Description
201 A-8347-904-A s MOUNTED CIRCUIT BOARD, PE-46
202 A-8347-905-A s MOUNTED CIRCUIT BOARD, JD-46
203 A-8347-906-A s MOUNTED CIRCUIT BOARD, RM-46
204 A-8348-110-A s MOUNTED CIRCUIT BOARD, MD-46
205 X-3608-771-1 s FRAME ASSY,K
206
!
1-476-408-14 s HEAD, THERMAL
207
!
1-787-134-11 s FAN, DC (50 SQUARE)
208 1-961-875-11 o HARNESS (RM-44)
209 1-962-704-11 s HARNESS, SUB (JD-46)
210 3-826-057-01 s CIM,CENTER
No. Part No. SP Description
211 3-838-829-01 s SCREW(+PSW,2.6X7)
212 3-945-884-21 s SCREW
213 4-650-141-03 s GUIDE, RIBBON
7-621-775-08 s SCREW +B2.6X3
7-682-649-09 s SCREW +PS 3X10(EP-FE/ZNBK/CM2)
7-685-534-14 s SCREW +BTP2.6X8
7-685-861-01 s SCREW +BVTT 2.6X5(EP-FE/ZN/CM2
To Next Page
