Sony DPP-EX50 - Page 23

DPP-EX50 V2
6-7

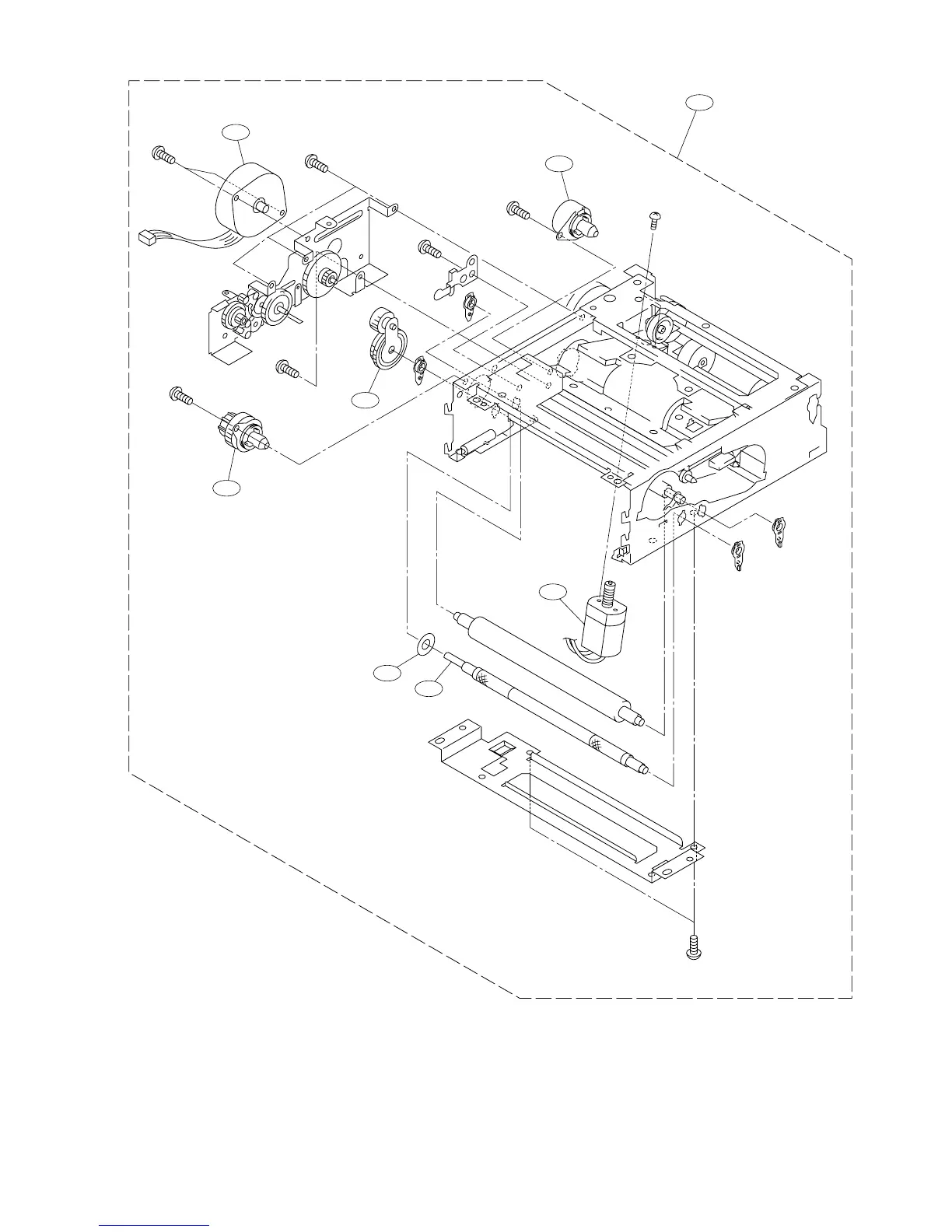

Mecha Deck Block 2
BVTT
2.6 x 5
P2.6 x 3
BVTT
2.6 x 5
BVTT
2.6 x 5
BVTT
2.6 x 5
BVTT
2.6 x 5
BVTT
2.6 x 5
BVTT
2.6 x 5
301
302
303
304
305
306
307
308
No. Part No. SP Description
301 A-8347-954-A s CHASSIS ASSY, F
302 X-3608-757-2 s ASSY,S REEL
303 ! X-3608-776-1 s ASSY,DC MOTOR
304 X-4622-925-2 s REEL ASSY, T
305 X-4622-927-2 s LEVER ASSY, R PENDULUM
No. Part No. SP Description
306 ! 1-787-116-11 s MOTOR, STEPPING
307 3-207-080-01 s ROLLER, E CAPSTAN
308 3-701-441-11 s WASHER PLASTIC (4.1X0.25)
7-621-775-08 s SCREW +B2.6X3
7-685-861-01 s SCREW +BVTT 2.6X5(EP-FE/ZN/CM2
