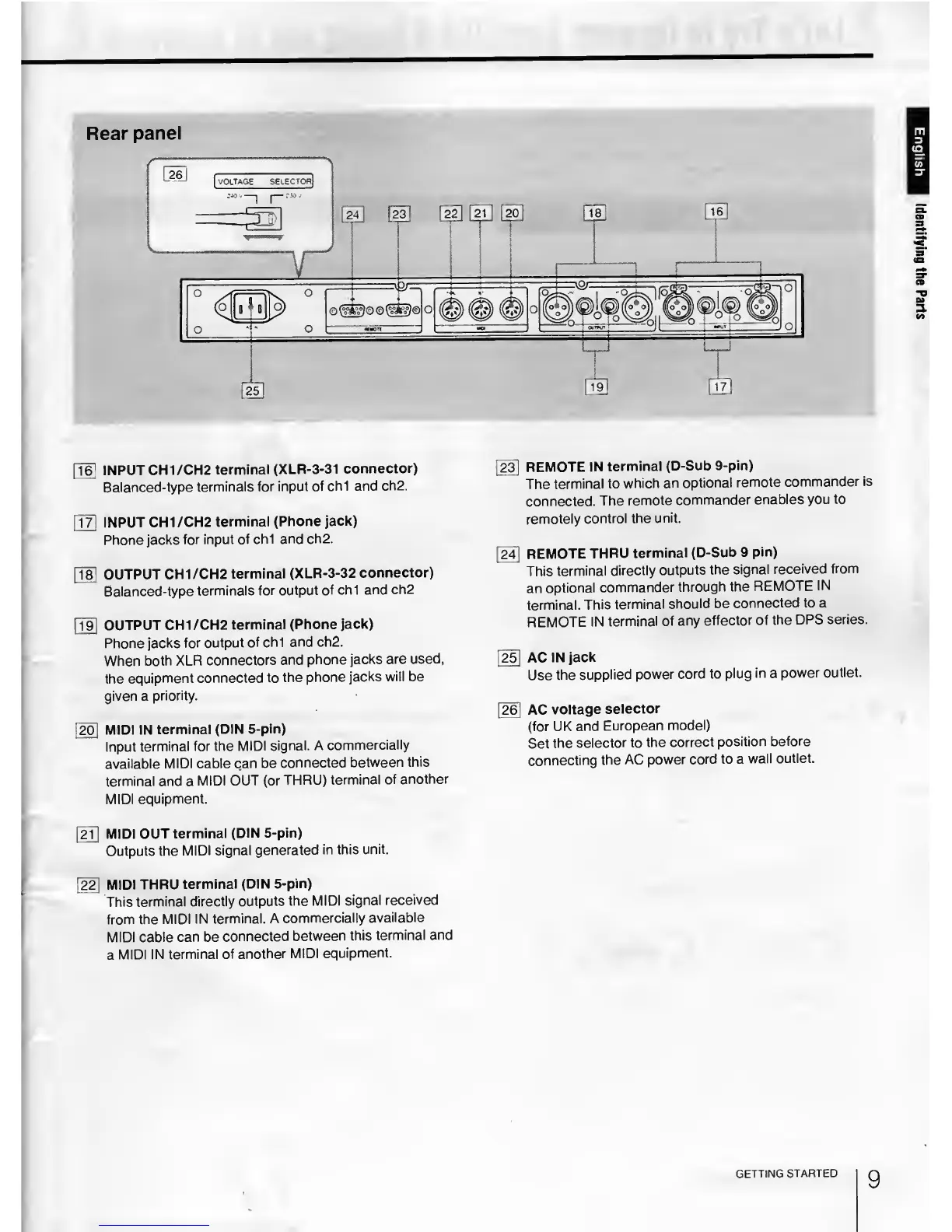

Rear
panel
[T6l
INPUT
CH1/CH2
terminal (XLR-3-31
connector)
Balanced-type
terminals for
input of
chi and
ch2.
rm
INPUT
CH1/CH2
terminal
(Phone
jack)
Phone
jacks for
input of
chi and
ch2.
fT8l
OUTPUT
CH1/CH2
terminal
(XLR-3-32
connector)
Balanced-type
terminals
for output
of
chi and
ch2
[T9l
OUTPUT
CH1/CH2
terminal
(Phone
jack)
Phone jacks
for output
of chi
and ch2.
When both
XLR
connectors
and
phone
jacks are
used,
the
equipment
connected to
the
phone
jacks
will
be
given a
priority.
|20
1
MIDI
IN
terminal (DIN
5-pin)
Input
terminal for the
MIDI
signal. A
commercially
available
MIDI cable
can be
connected
between
this
terminal and a
MIDI OUT
(or
THRU)
terminal
of
another
MIDI equipment.
[211
MIDI
OUT
terminal
(DIN
5-pin)
Outputs
the
MIDI signal
generated
in this
unit.
[22]
MIDI THRU
terminal (DIN
5-pin)
This
terminal
directly outputs
the
MIDI
signal
received
from
the
MIDI IN terminal.
A
commercially
available
MIDI cable
can
be
connected
between
this
terminal
and
a
MIDI IN
terminal
of another
MIDI
equipment.
23]
REMOTE
IN
terminal
(D-Sub
9-pin)
The
terminal
to
which
an
optional
remote
commander is
connected.
The
remote
commander
enables
you to
remotely
control
the
unit.
[24]
REMOTE
THRU
terminal
(D-Sub
9
pin)
This
terminal
directly
outputs
the
signal
received
from
an
optional
commander
through
the
REMOTE
IN
terminal.
This
terminal
should be
connected to a
REMOTE
IN
terminal
of any
effector
of the
DPS series.
[25]
AC
IN
jack
Use
the
supplied
power
cord to
plug
in
a
power
outlet.
[26]
AC
voltage
selector
(for
UK and
European
model)
Set
the
selector to
the
correct
position
before
connecting
the
AC
power
cord to a
wall outlet.
m
3
<D
c/5'
3
"
GETTING
STARTED
9
Identifying
the
Parts
