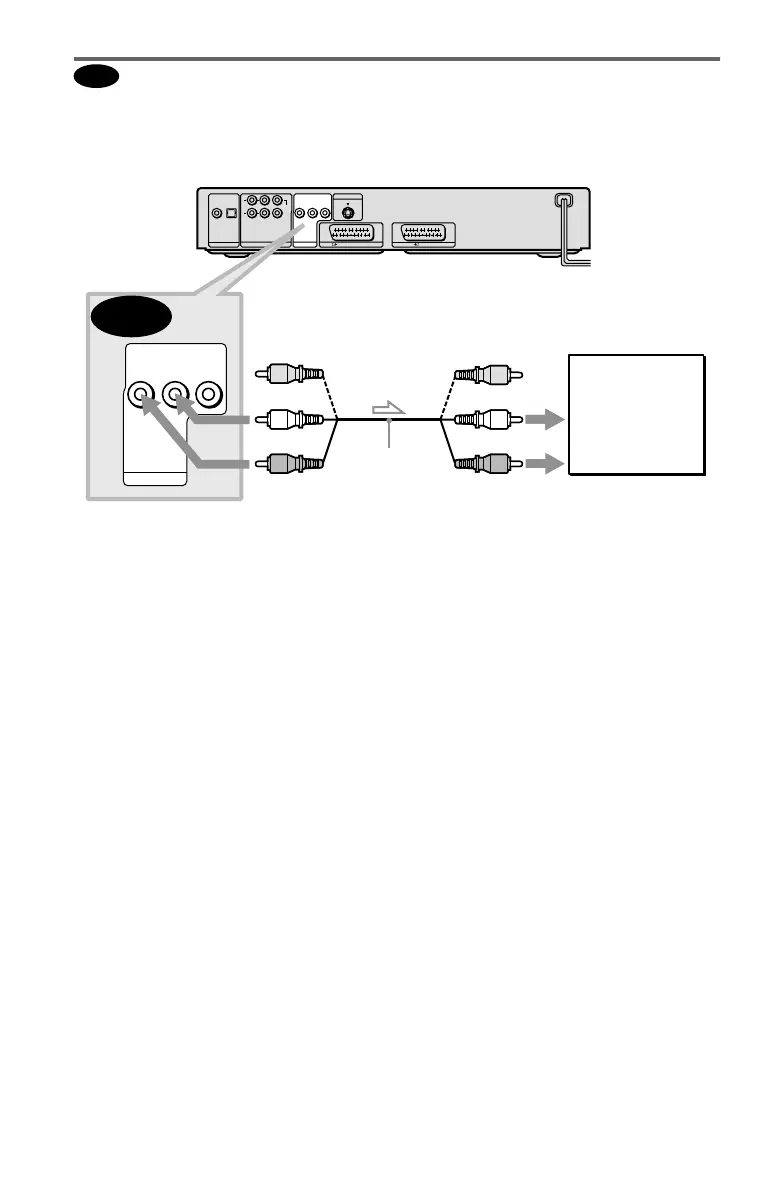

Connecting to your TV
This connection will use your TV speakers for sound. If you use the SCART (EURO AV) cord
in
A of “Step 1: Connecting the Video Cords” (page 19), you do not have to connect audio
cords to your TV.
* The yellow plug is used for video signals (page
19).
z Hint
When connecting to a monaural TV, use a stereo-
mono conversion cord (not supplied). Connect the
LINE OUT L/R (AUDIO) jacks to the TV’s audio
input jack.
A
DIGITAL OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
OPTICAL
5.1CH OUTPUT
WOOFER
L
R
FRONT REAR
CENTER
AUDIO
LR
VIDEO
LINE OUT
LINE 1 (RGB)-TV
S VIDEO OUT
LINE 2
A
AUDIO
LR
VIDEO
LINE OUT
TV
l : Signal flow
CD/DVD player
(white)
(red)
Audio/video
cord (supplied)
to audio input
(yellow)
(white)
(red)
(yellow)*
to LINE OUT L/R (AUDIO)
To Next Page
