Sony DVP-NS705V - Rear Panel

10

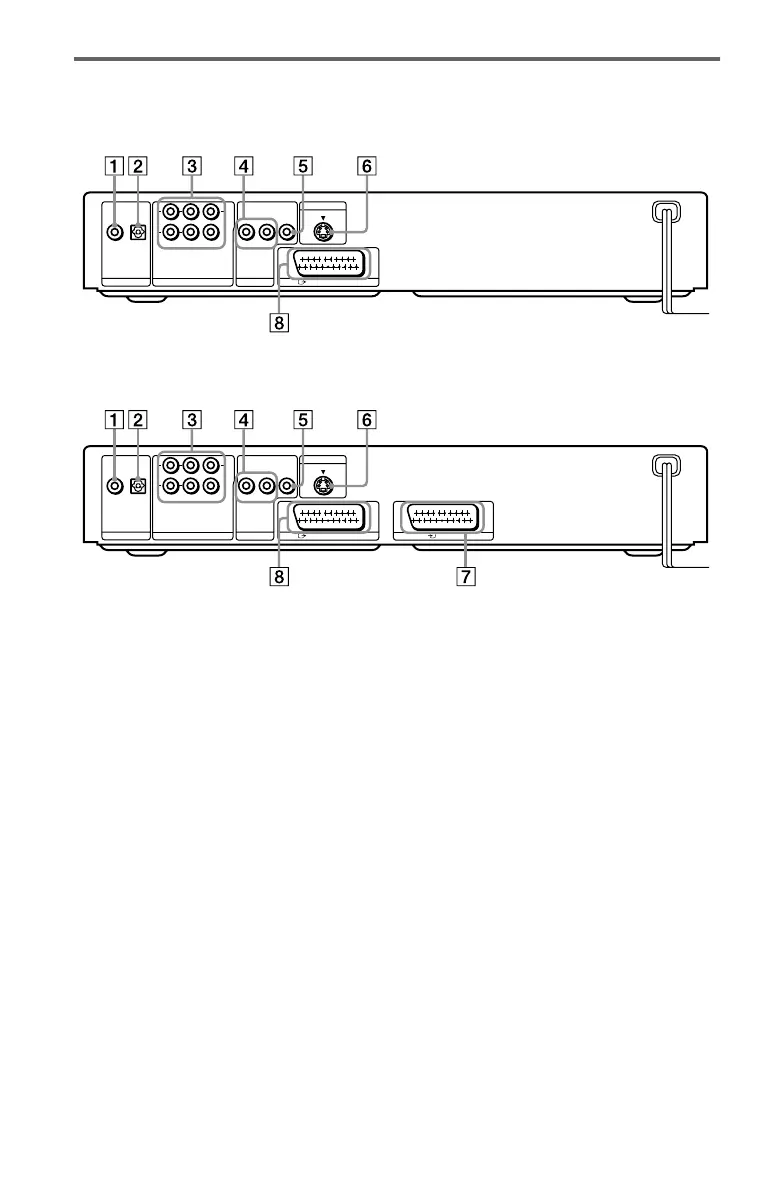

Rear panel
DVP-NS705V
DVP-NS905V
A DIGITAL OUT (COAXIAL) jack (25)
(26) (27)
B DIGITAL OUT (OPTICAL) jack (25)
(26) (27)
C 5.1CH OUTPUT jacks (27)
D LINE OUT L/R (AUDIO) jacks (24)
(25) (26)
E LINE OUT (VIDEO) jack (19)
F S VIDEO OUT jack (19)
G LINE 2 jack (17) (19)
(DVP-NS905V only)
H LINE (RGB)-TV jack (17) (19)
(for DVP-NS705V)
LINE 1 (RGB)-TV jack (17) (19)
(for DVP-NS905V)
