2-6. SWITCHING REGULATOR

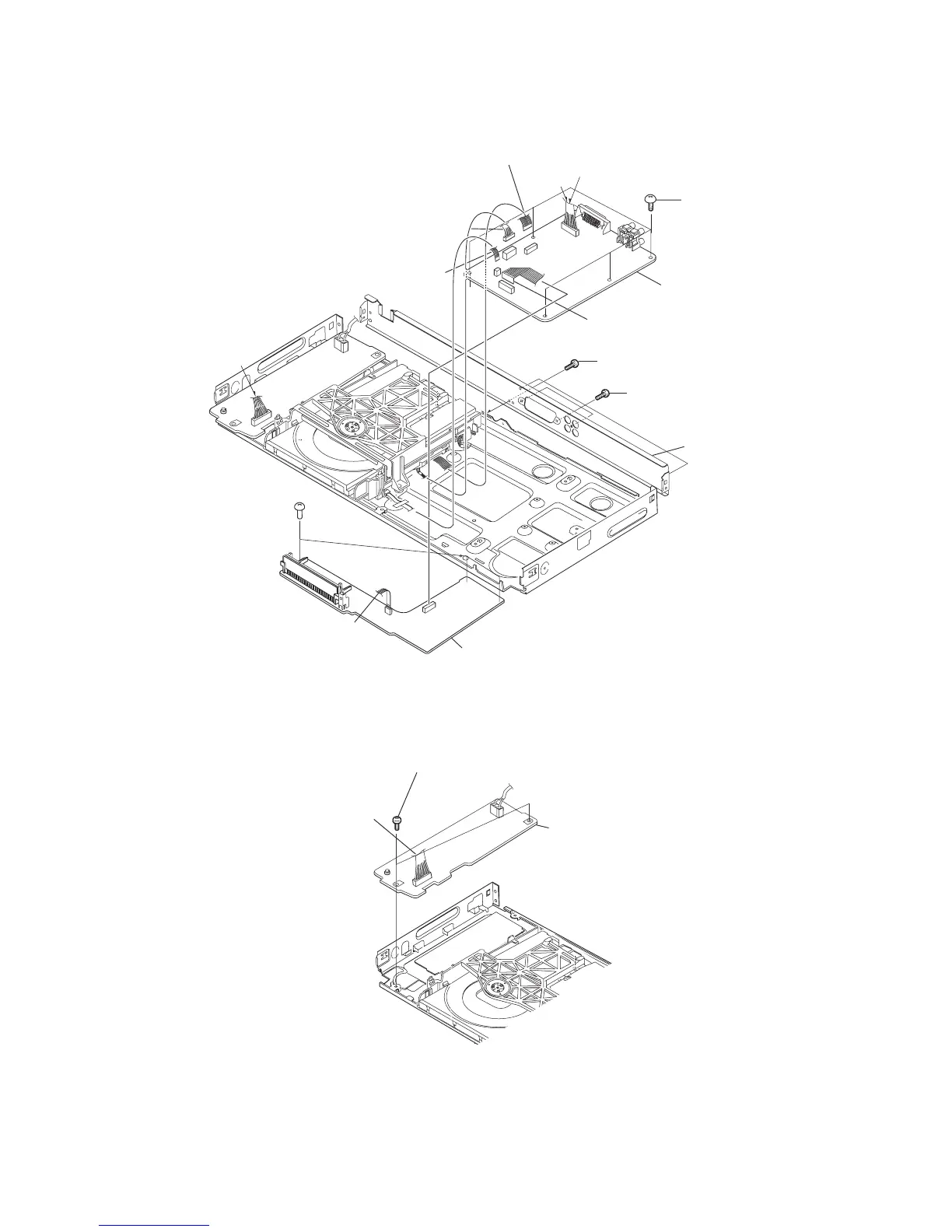

2-5-2. REAR PANEL, MV-50 and IF-144 BOARDS
(DVP-NS36:AEP/NS37)
2 Two Screws
+BV3 (3-CR)
1 Connector
(PM-127 Harness,
CN201, 10P)
3 Power Board
4 FMS-010 Flat Flexible Cable
(CN202, 5P)
6 FIM-013 Flat Flexible Cable
(CN404, 17P)
5 FMO-009 Flat Flexible Cable
(CN101, 24P)
7 MV-50 Board
3 MD-111 Harness
(CN201, 6P)
8 PM-127 Harness
(CN501, 10P)
6 Five Screws
+BV3 (3-CR)
1 Three Screws
+BV3 (3-CR)
2 Rear Panel
1 Tapping Screw
a
a
l
3 FSW-001 Flat Flexible Cable
(CN403, 7P)
0 IF-144 Board
