Sony DVPNS61 - MV-51 Board Schematics

DVP-NS36/NS37/NS45P/NS55P/NS61P/NS63P
CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER
MV-51

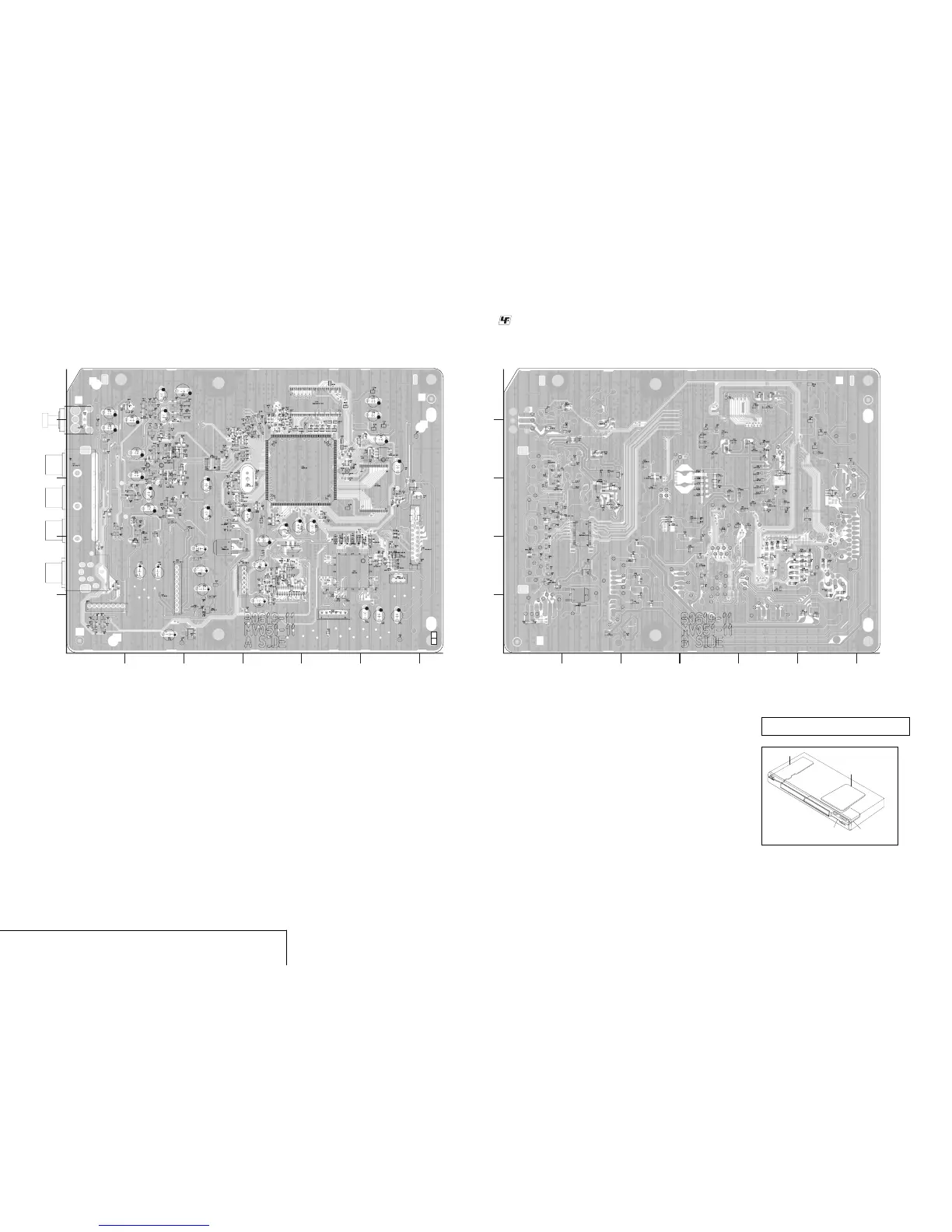

MV-51 (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) PRINTED WIRING BOARD
• : Uses unleaded solder.
MV-51 BOARD (DVP-NS45P/55P/61P/63P) SIDE A MV-51 BOARD (DVP-NS45P/55P/61P/63P) SIDE B
4-30
IF-144 Board (EXCEPT DVP-NS63P)
(INTERFACE)
IF-145 Board (DVP-NS63P )
(INTERFACE)
SW-468 Board (EXCEPT DVP-NS63P)
(SWITCH)
SW-475 Board (DVP-NS63P )
(SWITCH)
MV-50 Board (DVP-NS36/NS37)
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO EURO, AUDIO, POWER)
MV-51 Board (DVP-NS45P/55P/61P/63P)
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
Power Board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
MV-51 BOARD
SIDE A
IC101 D-5
IC102 C-6
IC103 D-6
IC104 E-5
IC108 B-6
IC201 B-5
IC110 B-3
IC401 D-2
IC405 D-1
D402 D-2
Q101 B-4
Q102 B-4
Q103 B-4
Q304 C-2
Q305 B-2
Q502 A-3
SIDE B
IC105 D-5
IC107 C-6
IC303 D-6
IC304 E-5
IC403 B-6
IC501 B-5
D308 B-1
D309 B-1
D401 D-2
D404 C-2
Q407 C-2
Q408 C-1
Q411 E-2
Q416 C-2
1-726-840-
11
(11)
A
B
C
D
E
1
2
5
43
6
A
B
C
D
E
1
2
5
43
6
