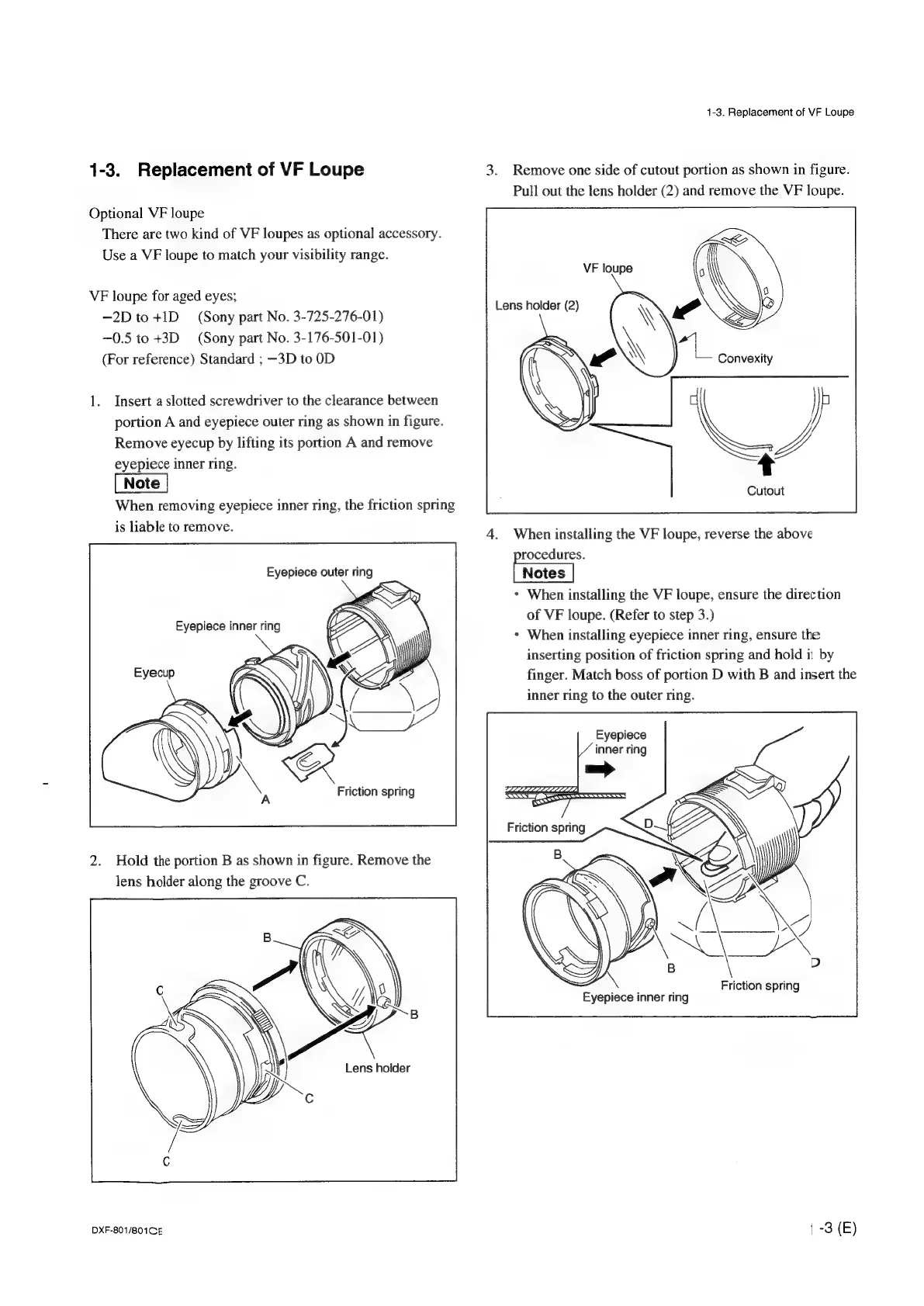

1-3. Replacement of VF Loupe
Optional VF loupe
There are two kind of VF loupes as optional accessory.
Use a VF loupe to match your visibility range.
VF loupe for aged eyes;
—2Dto+1D (Sony part No. 3-725-276-01)
—0.5to+3D (Sony part No. 3-176-501-01)
(For reference) Standard ; —3D to 0D
1. Insert a slotted screwdriver to the clearance between
portion A and eyepiece outer ring as shown in figure.
Remove eyecup by lifting its portion A and remove
eyepiece inner ring.
[Note |
When removing eyepiece inner ring, the friction spring
is liable to remove.
Eyepiece outer ring
2. Hold the portion B as shown in figure. Remove the
lens holder along the groove C.
DXF-801/801CE
1-3. Replacement of VF Loupe
3. Remove one side of cutout portion as shown in figure.
Pull out the lens holder (2) and remove the VF loupe.
VF loupe
Lens holder (2)
"a ga Convexity
wy
Cutout
4. When installing the VF loupe, reverse the above
P rocedures.
* When installing the VF loupe, ensure the direction
of VF loupe. (Refer to step 3.)
* When installing eyepiece inner ring, ensure the
inserting position of friction spring and hold it by
finger. Match boss of portion D with B and insert the
inner ring to the outer ring.
Eyepiece
inner ring
Friction spring
Eyepiece inner ring
| -3 (E)
