Sony EVI-D100 - Locations of Controls; Main Unit

36 Overview
Overview
3
4
1
2
58
9
0
6
7
qa

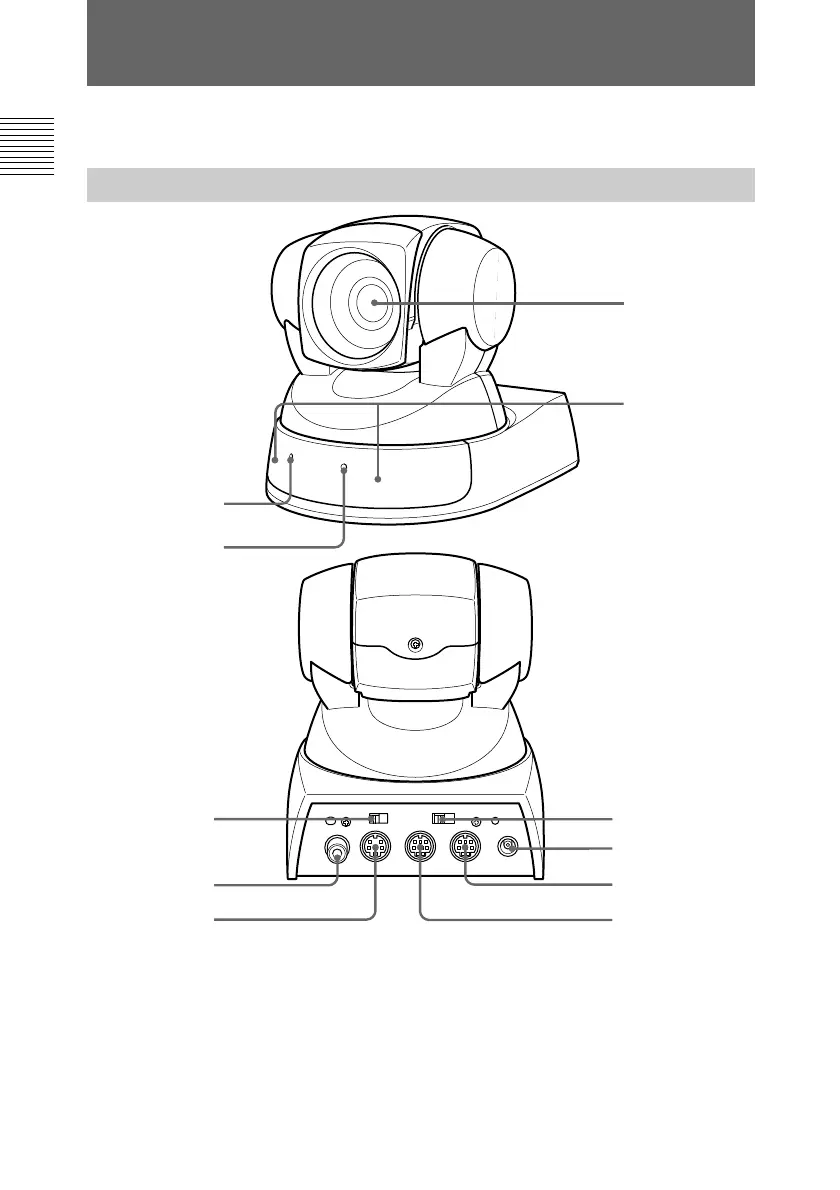

1 POWER lamp (42)
2 STANDBY lamp (44)
3 Lens
4 Sensor for the Remote
Commander (44)
5 BACKUP switch (49)
6 VIDEO jack (41)
7 S VIDEO jack (41)
8 IR SELECT switch (44)
9 DC IN 12V jack (41)
0 VISCA OUT jack (41)
qa VISCA IN jack (41)
Locations of Controls
For details, see the pages indicated in parenthesis.
Main Unit
