When You Discard
Color Video Camera
For environmental reasons, take out
the lithium battery from the camera
and discard it appropriately.

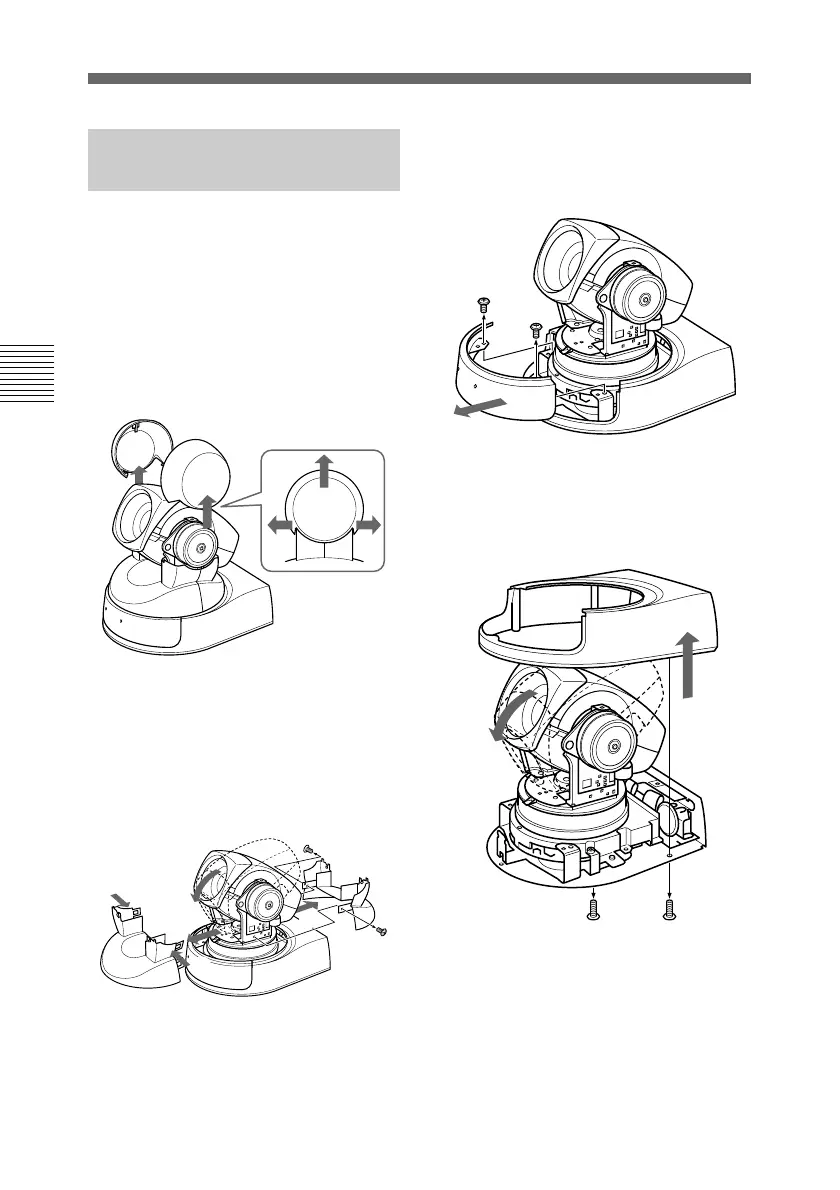

1 Hold the lower part of the pan
cabinet (side) with your fingers,
and pull it up while stretching it
until it comes off.
1
2
1
2 While holding both sides of the
pan cabinet (front) tight, pull it
toward the front. Then, remove
the two screws 4 using a Phillips
screw driver and detach the pan
cabinet (rear).
1
1
2
3
4
4
5
3 Remove the two screws 1 and
detach the cover of the sensor for
the Remote Commander.
1
1
2
4 Remove the two screws 1 and
turn the camera head down, then
pull the base cabinet up until it
comes off.
11
3
2
