Connections
Connect your Color Video Camera to
a computer, TV or VCR equipped
with a video input. Some connections
may require extra cables. Refer to the
instruction manual of the equipment to
be connected.
1) When the camera is connected to a computer with a VISCA cable (RS-232C, cross type), you can
operate the camera with the computer. To obtain a cable, consult the dealer where you bought your
camera.

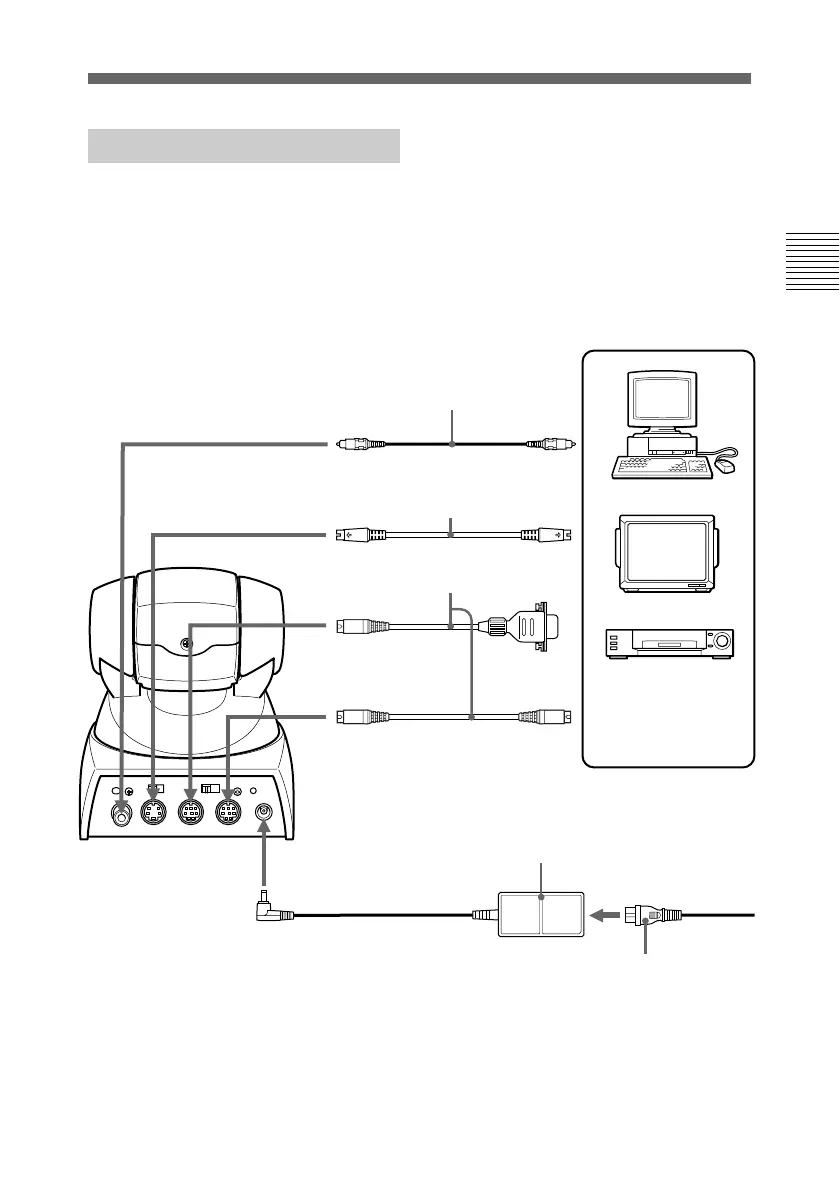

Video cable
(not supplied)
to VIDEO
to S VIDEO
to Video
input
VISCA cable
(not supplied)
1)
to
S-Video
input
to VISCA IN
to VISCA OUT
to
RS-232C
To VISCA IN of
other EVI-D100/D100Ps
(when connecting to more
than one camera)
to DC IN 12V
to AC outlet
Power cord
(supplied)
AC power adaptor
MPA-AC1 (supplied)
Computer, TV or
VCR with a
video input jack
S-Video cable
(1-751-416-11
not supplied)
