Sony FCB-EX1010 - Connector Pin Assignments

52
Specifications

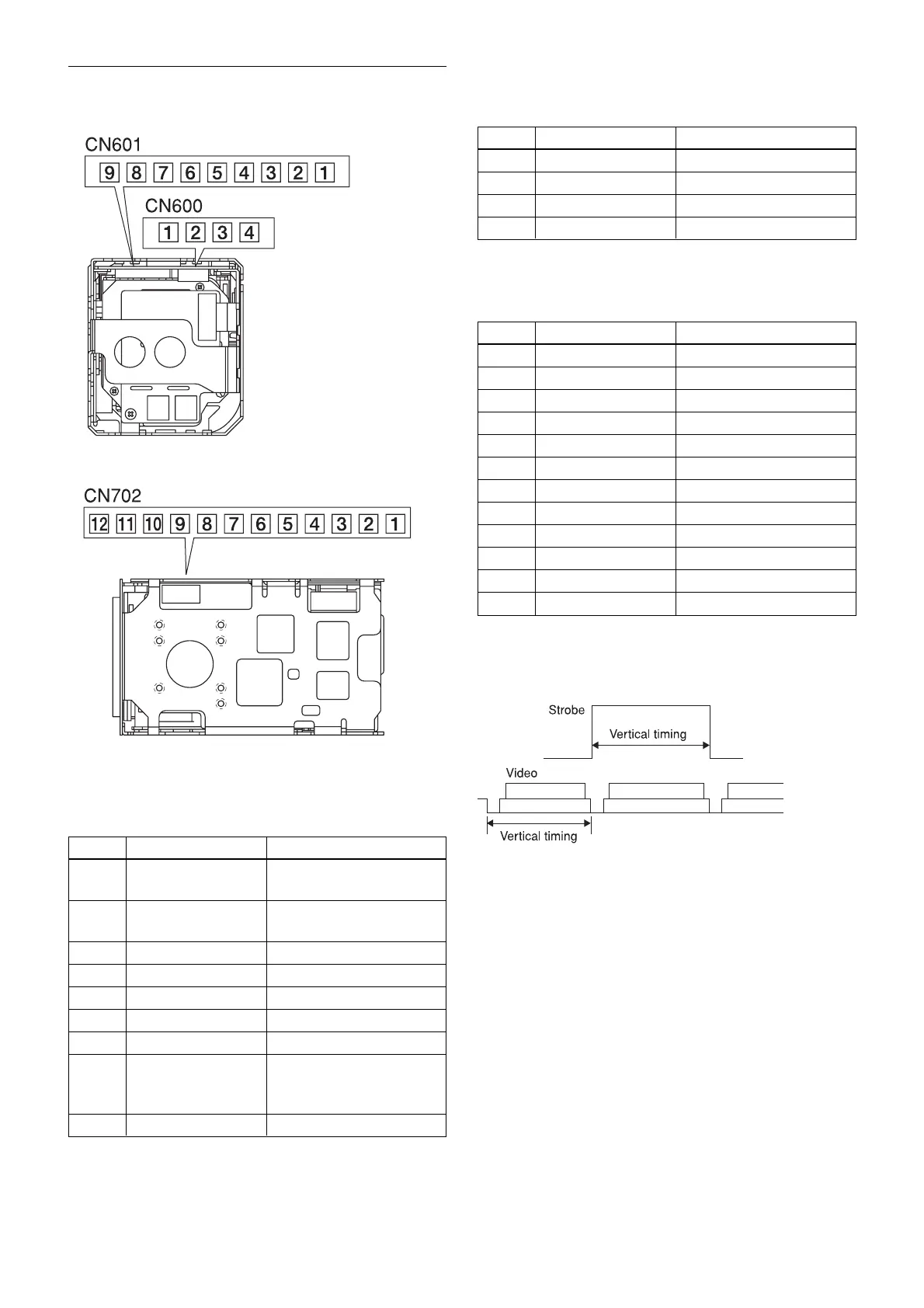

Pin assignment
CN601
KYOCERA ELCO Co. 00 6200 509 130 000+
Pin No. Name Level
1 RxD CMOS 5V (low: max 0.8V,
high: min 2.0V) Read Data
2 TxD CMOS 5V (low: max 0.1V,
high: min 4.4V) Send Data
3 GND (for RxD&TxD)
4 DC IN 9.0V±3V
5 GND (for DC IN)
6 VBS OUT 1.0V±0.2V
7 GND (for VBS OUT)
8V LOCK PULSE External VD-Lock Pulse
(EX.FV: Negative, 3Vp-p
50% duty)
9 GND (VL PULSE)
Pin No. Name Level
1 Y_Out
2 GND (for Y signal)
3 C_Out
4 GND (for C signal)
Pin No. Name Level
1 GND
2 GND
3 KEY AD0
4 KEY AD1
5 KEY AD2
6 KEY AD3
7 KEY AD4
8 KEY AD5
9 KEY AD6
10 KEY AD7
11 NC
12 Strobe
CN600
J.S.T. Mfg Co. S4B-ZR-SM4A-TF(LF)
CN702
KYOCERA ELCO Co. 086222012101848+
Strobe signal specifications
