Sony FLEXICART BFC-1 - Switch on Cpu-107 Board Setting

4-6
BFC-1
4-7. SWITCH ON CPU-107 BOARD SETTING
Set the following switches according to operating conditions.
1. DIP switch (S1)
RS-422A termination switch.
ON: terminated
OFF: not terminated
<Standard setting before shipment:
ON (terminated)>
2. DIP switch (S5)
1) S5-1 : Selects interface port.
ON : RS-232C port active
OFF : RS-422A port active
2) S5-2, 3 : Selects baud rate together.
3) S5-5 : Barcode reader use switch.
ON : Barcode reader not use
OFF: Barcode reader use
4) S5-4 : Not used.
This switceh should be set to OFF.
5) S5-6 : DF mode switch.
OFF : DF mode (NTSC model only)
ON : Non DF mode
DF mode: Drop Frame mode
6) S5-7, 8 : Select video mode together.
<Standard setting before shipment>
Baud rateS5-2 S5-3
OFF
ON
38400 bps
19200 bps
9600 bpsOFF
4800 bpsON
OFF
OFF
ON
ON
Video modeS5-7 S5-8
OFF
ON
NTSC
PAL
SECAMOFF
ReservedON
OFF
OFF
ON
ON

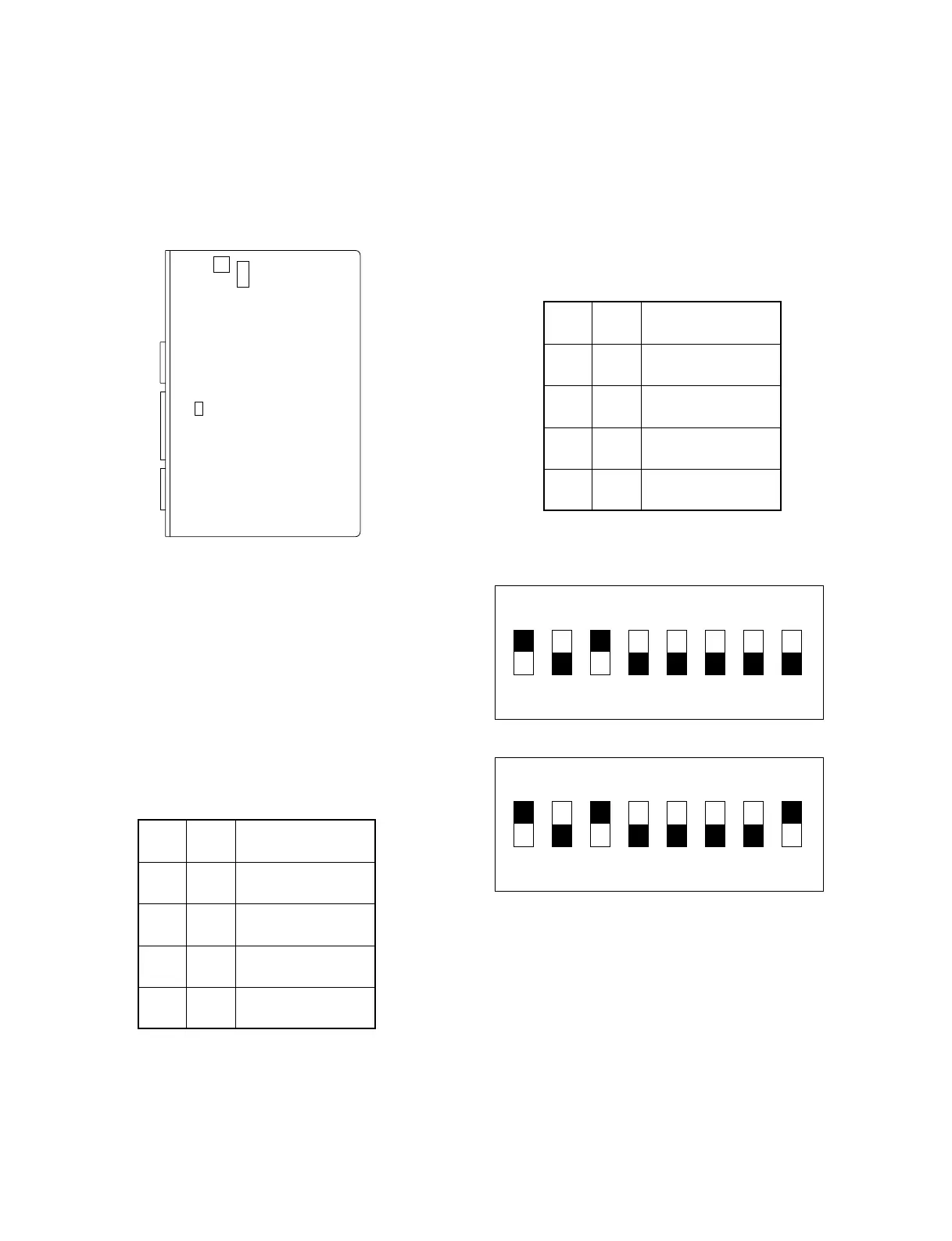

CPU-107 BOARD
(A SIDE)
S6
S5
S1
ON
12345678
*NTSC model (1, 3 ON)
ON
12345678
*PAL model (1, 3, 8 ON)
