4-58
BFC-1

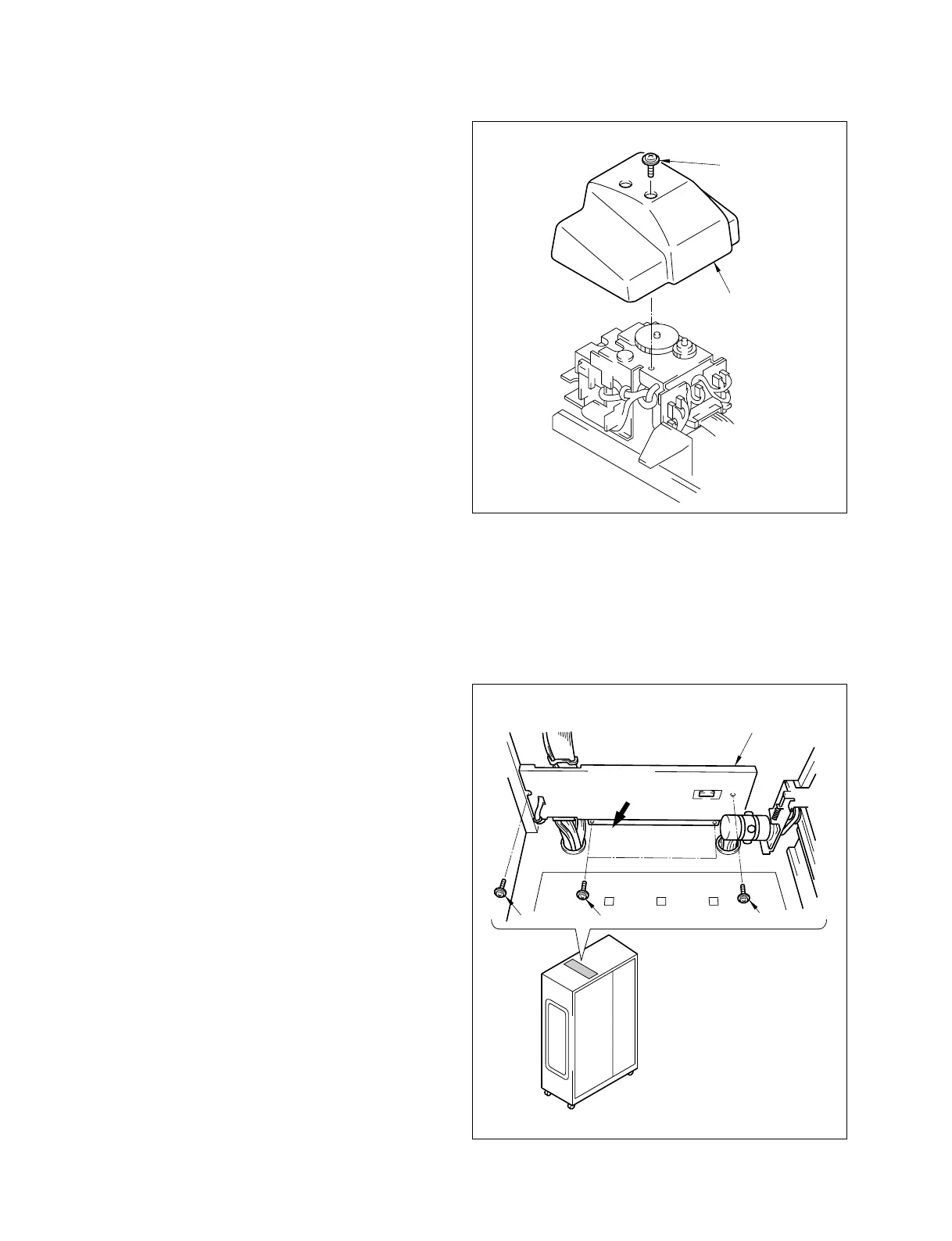

11. Hand cover installation
(For DSR-1600/1800/2000 series VTRs)
Install the hand cover in the elevator with one screw.
4-12-4. Moving of Cassette Sensor Boards
To detect the protrusion or falling from the cassette bin, the cas-
sette sensor boards are installed in the cart machine. Move the
position of these sensor boards because the DV cassette is small.
1. Moving of cassette sensor board (upper)
(1) Remove the four screws (shown in the figure) fixing the
cassette sensor board (upper).
(2) Shift the cassette sensor board (upper) left-obliquely in
the inner direction by approximately 30 mm.
L
C
R
CASETTE SENSOR
BOARD (UPPER)
SCREW SCREWS SCREW
SCREW
(PWH 4x8)
HAND COVER
To Next Page
