4-11-3. Installing the Bin Unit

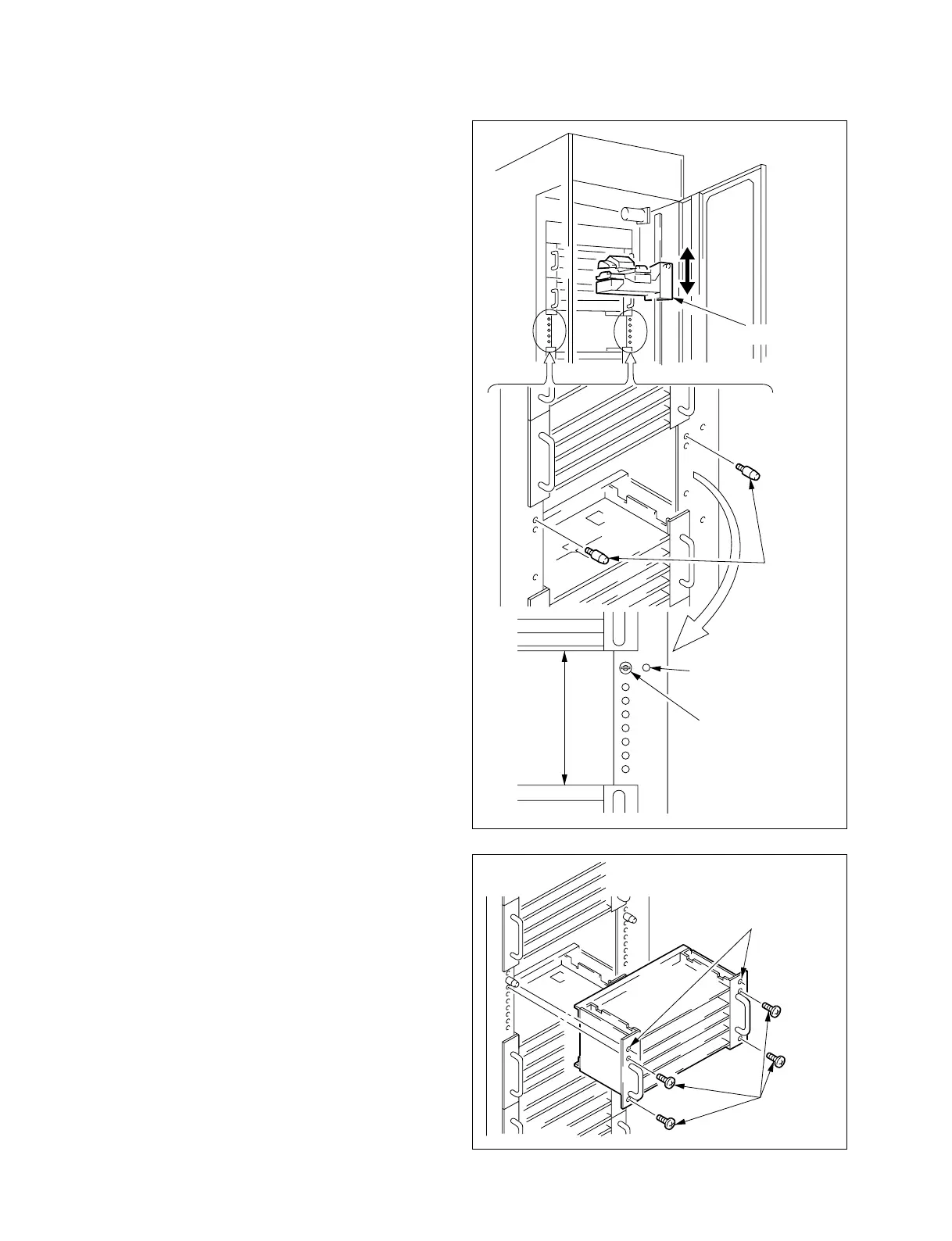

(1) Move the elevator manually to the position where the bin
unit is easily installed.
(2) Install the bin guide pins in two frames.
(3) Insert the guide holes of the bin unit into the bin guide pins
and fix them to the cart machine with four screws.
ELEVATOR
BIN GUIDE
PINS
BIN GUIDE PIN
BIN
(4U)
1U MARK
SCREWS
(+B 5x10)
GUIDE HOLES
