4-11-2. Installing the Rack Mount Kit and VTR
Preliminary Information
. The VTR can be pulled out from the front or rear of a cart
machine by changing how to install the rack mount kit.
Display the type as [front drawer] if you want to pull out the VTR
from the front.
[FRONT|DRAWING]
Display the type as [rear drawer] if you want to pull out the VTR
from the rear. Each installation method is described in this case.
[REAR|DRAWING]

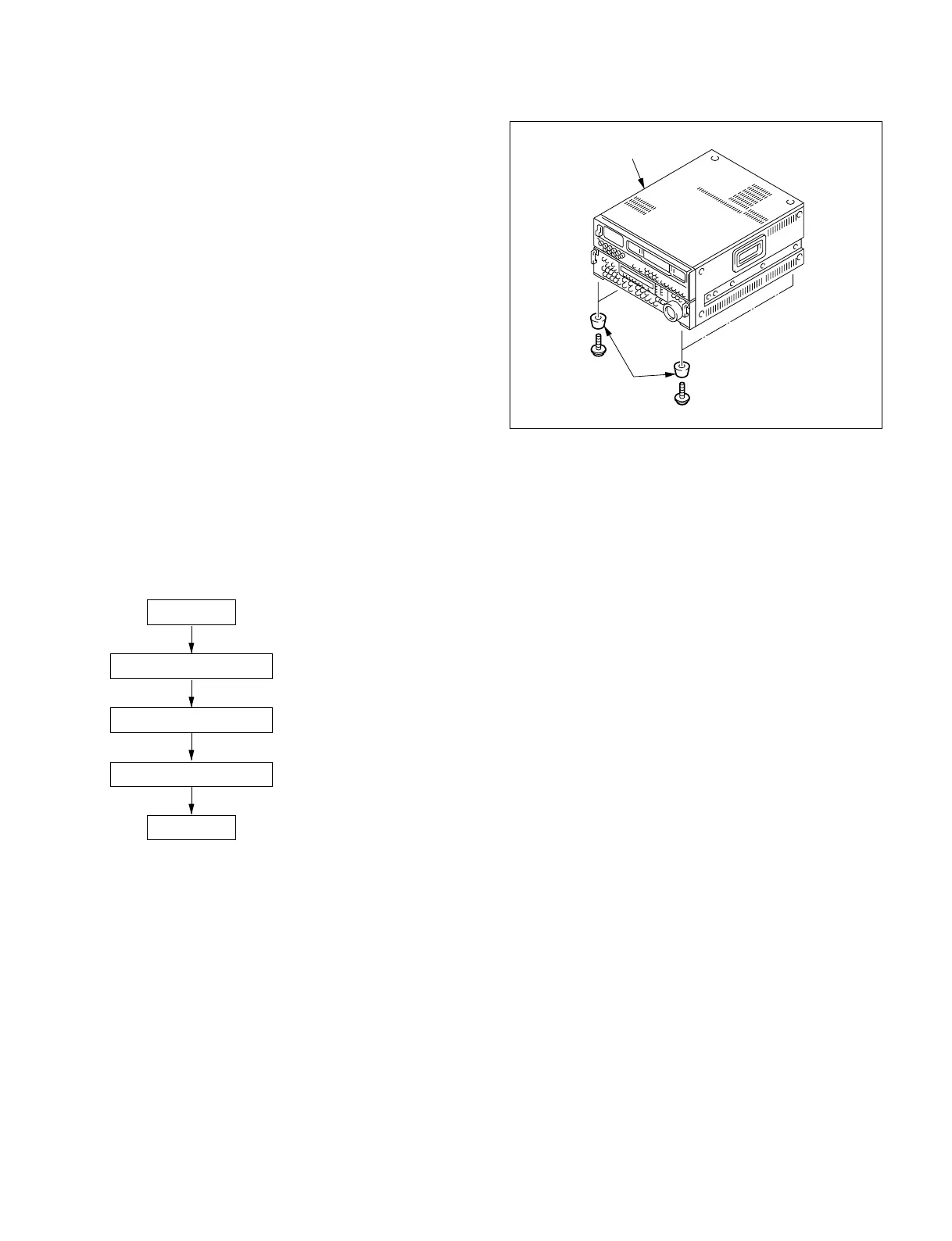

. Remove the feet of the VTR to be installed in advance.
. The figures in this section describe the installation procedure of
a rack mount kit on one side. The installation of a rack mount
kit on the other side is also the same as the procedure below.
(The following figures are explained based on a front drawer
system.)
Flowchart for rack mounting procedure.
Start
Install rack mount rail.
Install VTR.
Install shutter plate.
End
