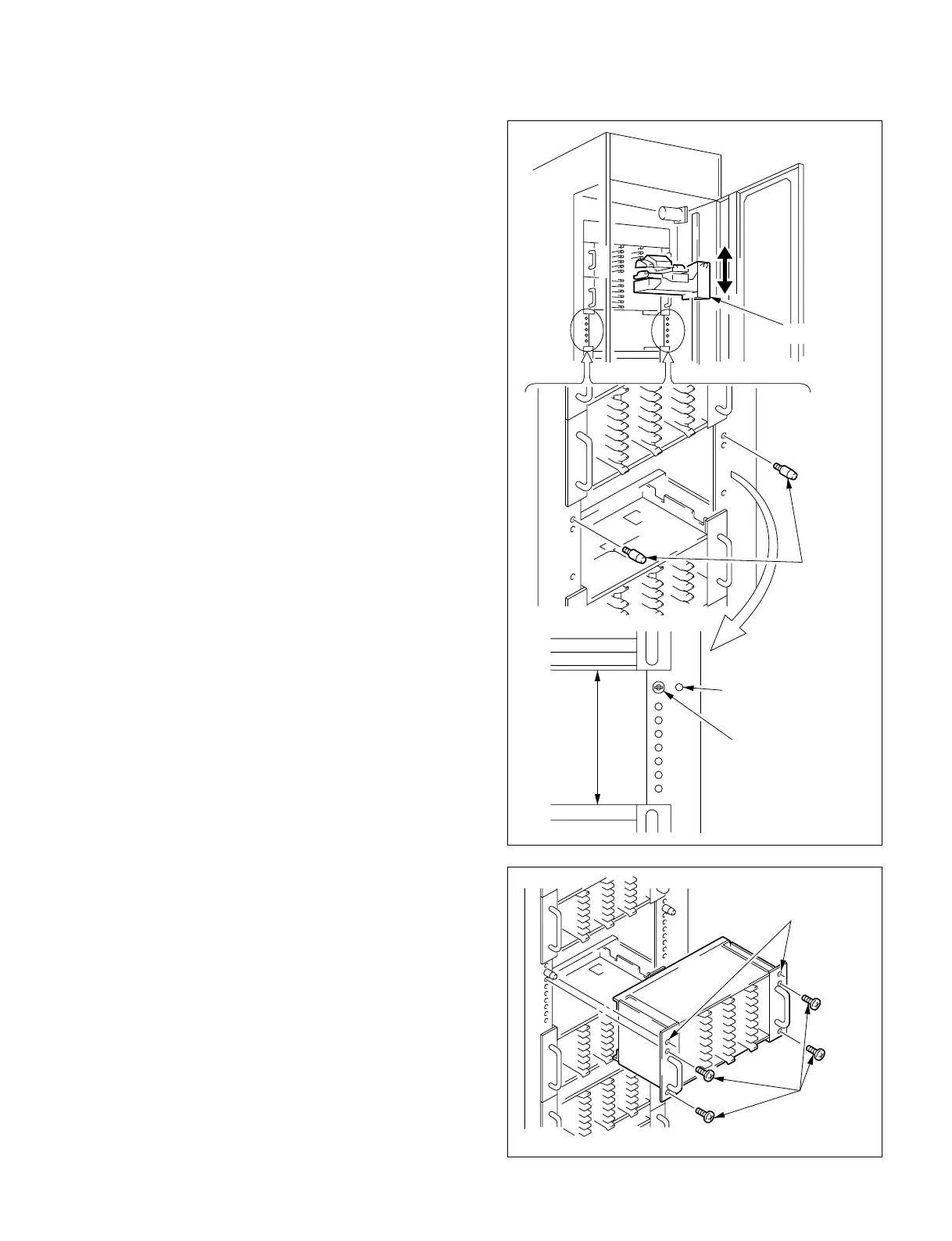

4-12-2. Installing the Bin Unit
(1) Move the elevator manually to the position where the bin
unit is easily installed.
(2) Install the bin guide pins in two frames.
(3) Insert the guide holes of the bin unit into the guide pins and
fix them to the main unit with four screws.
ELEVATOR
BIN GUIDE
PINS
BIN GUIDE PIN
BIN
(4U)
1U MARK
SCREWS
(+B 5x10)
GUIDE HOLES
