4-17
BFC-1

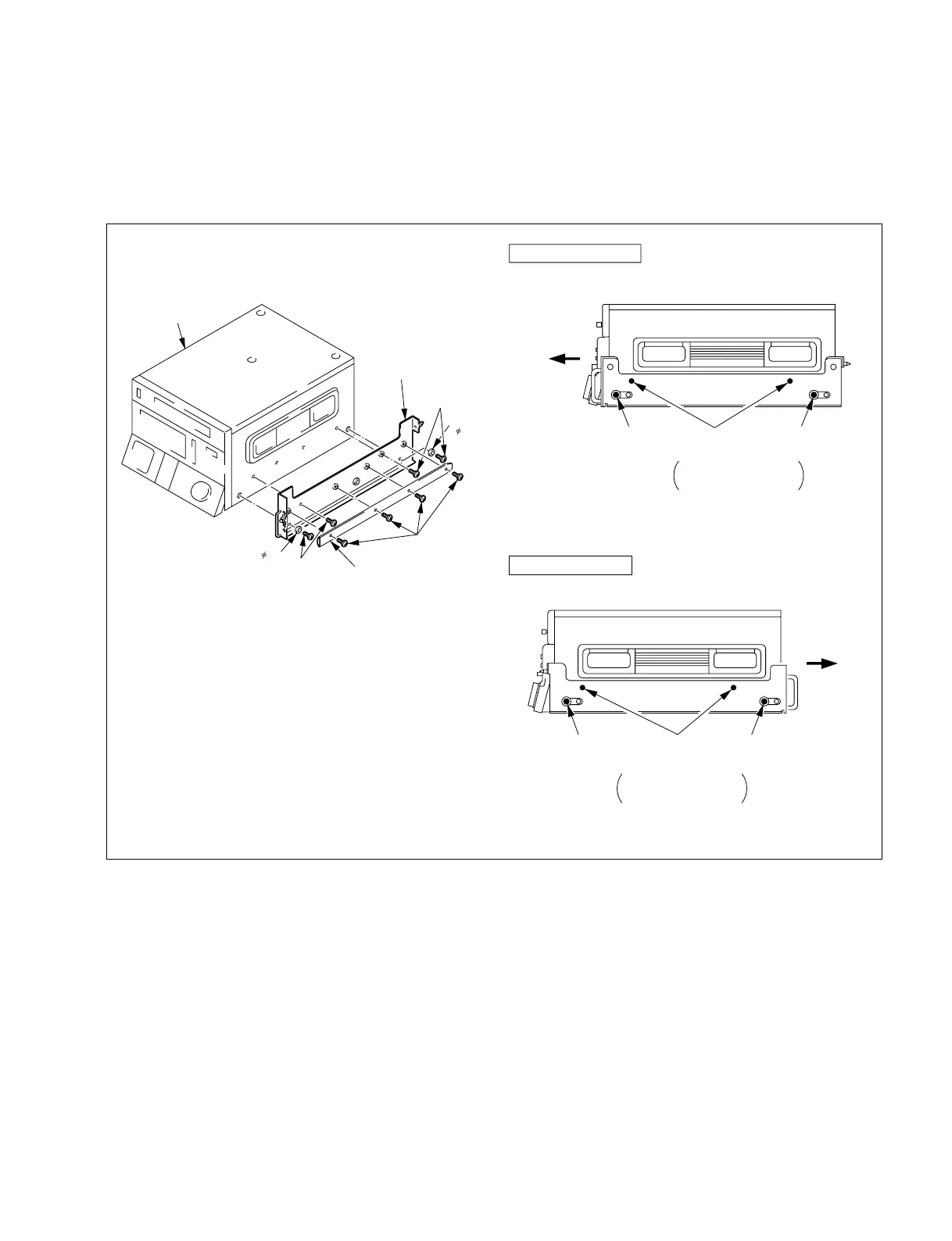

(3) Install the rail installation plate assembly in the VTR with
four screws.
(4) Install the inner rail to the rail installation plate assembly
with four screws.
ATTACHMENT
HOLE
VTR
DRAWING
DIRECTION
ATTACHMENT
HOLE
ATTACHMENT
HOLES
FRONT DRAWING. BKFC-52 (for D-2 VTRs )
REAR DRAWING
WASHER ( 4)
VTR
RAIL BRACKET
ASSY
SCREWS
(
+
B 4
x
8)
NOTE1: A BKFC-52 having a product code ending with –0
can be connected only to the DVR-10/20 series.
SCREWS
(
+
B 4
x
6)
SCREWS
(
+
B 4
x
8)
INNER RAIL
WASHER
(
4)
*1
VTR
DRAWING
DIRECTION
ATTACHMENT
HOLE
ATTACHMENT
HOLE
ATTACHMENT
HOLES
BKFC-52 DVR-10/20 SERIES
DVR-18/28
*1
BKFC-52 DVR-10/20 SERIES
DVR-18/28
*1
Note: The installation method varies depending on the di-
rection in which the VTR to be mounted is pulled
out. Therefore, install it referring to the figure.
