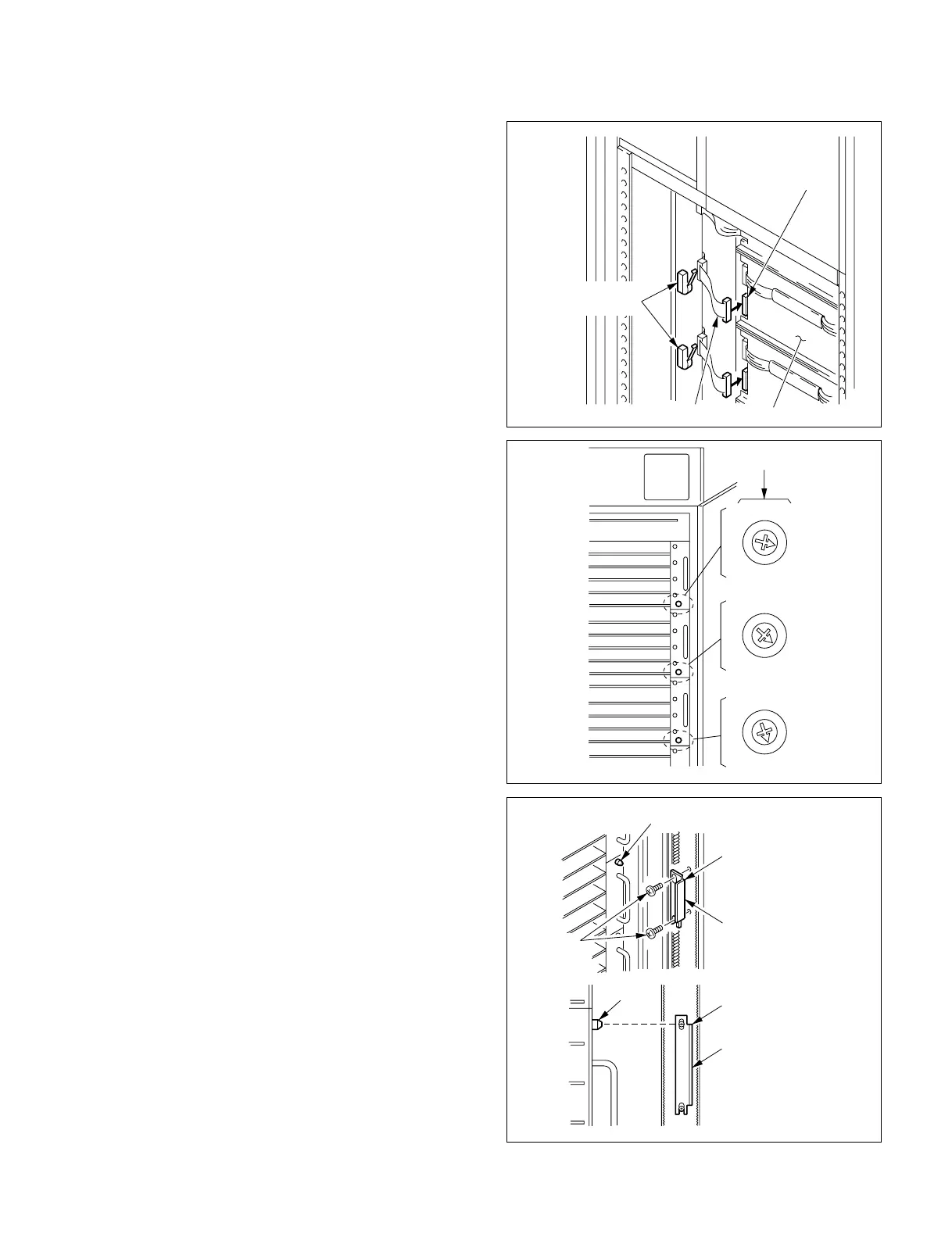

(4) Insert the harness of the cart machine into connector CN1
(on the SE-481 board) of the bin unit from the rear of the
cart machine.
Note: Remove the power panel of the power block
when inserting connector CN1 of the third-block
bin unit from the top.
(5) Set the rotary switch in the order of 0, 1, 2, and 3 from the
top.
(6) Install the bin shutter plate (black) in the cart machine.
Install it with two screws so that the corner of the shutter
plate is the same in height as the center of the bin guide pin.
HARNESS
BIN UNIT
CN1
Release the harness
clampers on the
rear side.
1
5
0
4
2
3
1
5
0
4
2
3
1
5
0
4
2
3
RCL
Rotary switch
BIN GUIDE
PIN
UPPER EDGE
BIN SHUTTER PLATE
(BLACK)
BIN SHUTTER PLATE
(BLACK)
UPPER EDGE
BIN GUIDE PIN
SCREWS
(+PWH 3x6)
