4-59
BFC-1

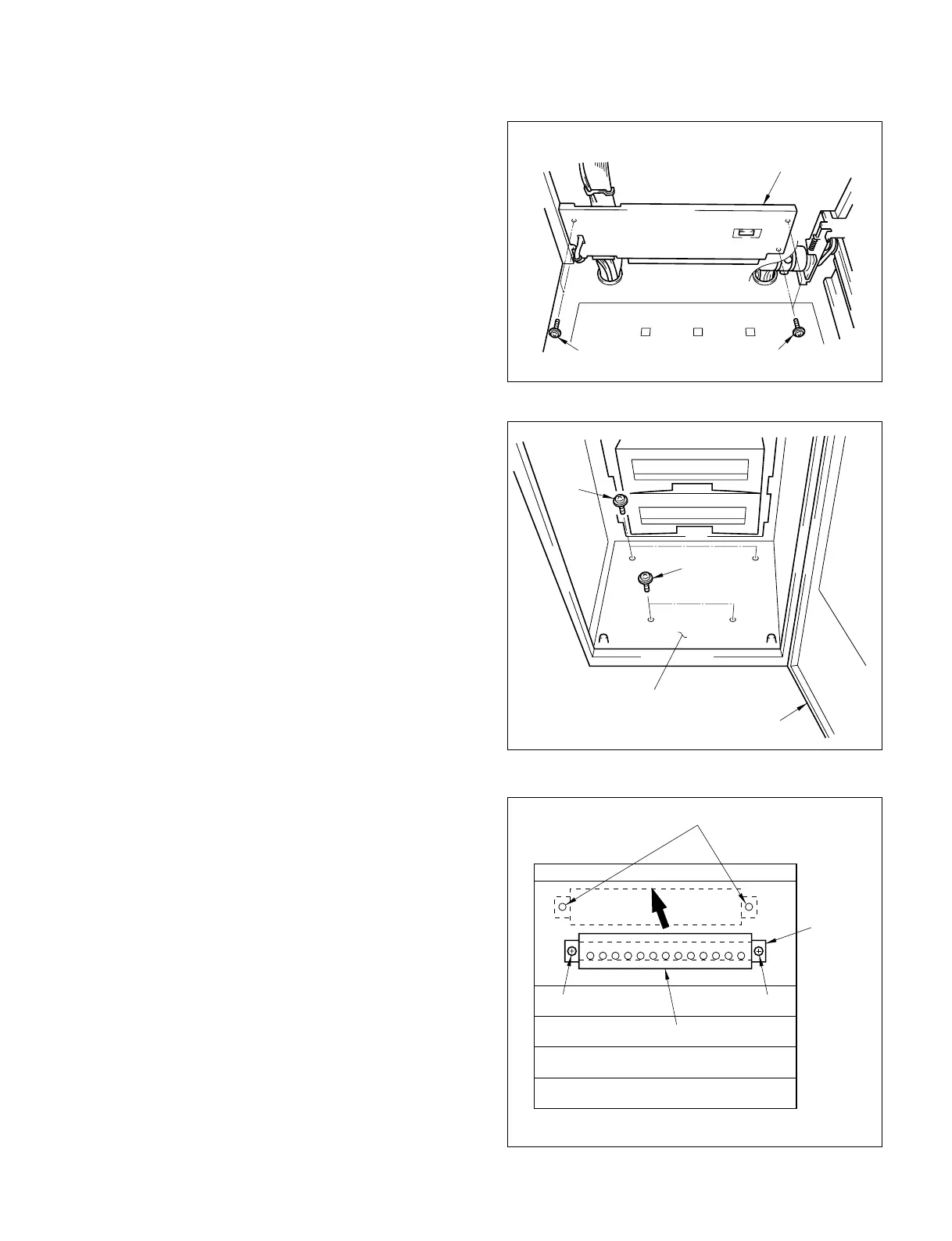

(3) Install the cassette sensor board (upper) in the position
shown in the figure with four screws.
Note: Be careful not to interpose the harness.
2. Moving of cassette sensor board (lower)
(1) Remove the four screws, then remove the bottom plate.
(2) Remove the two screws fixing the cassette sensor board
(lower).
(3) Shift the cassette sensor board (lower) left-obliquely in
the inner direction by approximately 30 mm.
(4) Align the position of the screw hole with the hole of the
bracket of the cassette sensor board (lower) and install
the cassette sensor board (lower) with two screws.
(5) Install the bottom plate with two screws.
Note: Be careful not to interpose the harness.
SCREWS
SCREWS
BOTTOM PLATE
DOOR
<TOP VIEW>
BOARD
BRACKET
SCREW
CASSETTE SENSOR BOARD (LOWER)
SCREW
SHIFT THE BRACKET TO THESE HOLES
L
C
R
CASETTE SENSOR
BOARD (UPPER)
SCREWS SCREWS
