4-47
BFC-1
[FRONT|DRAWER]

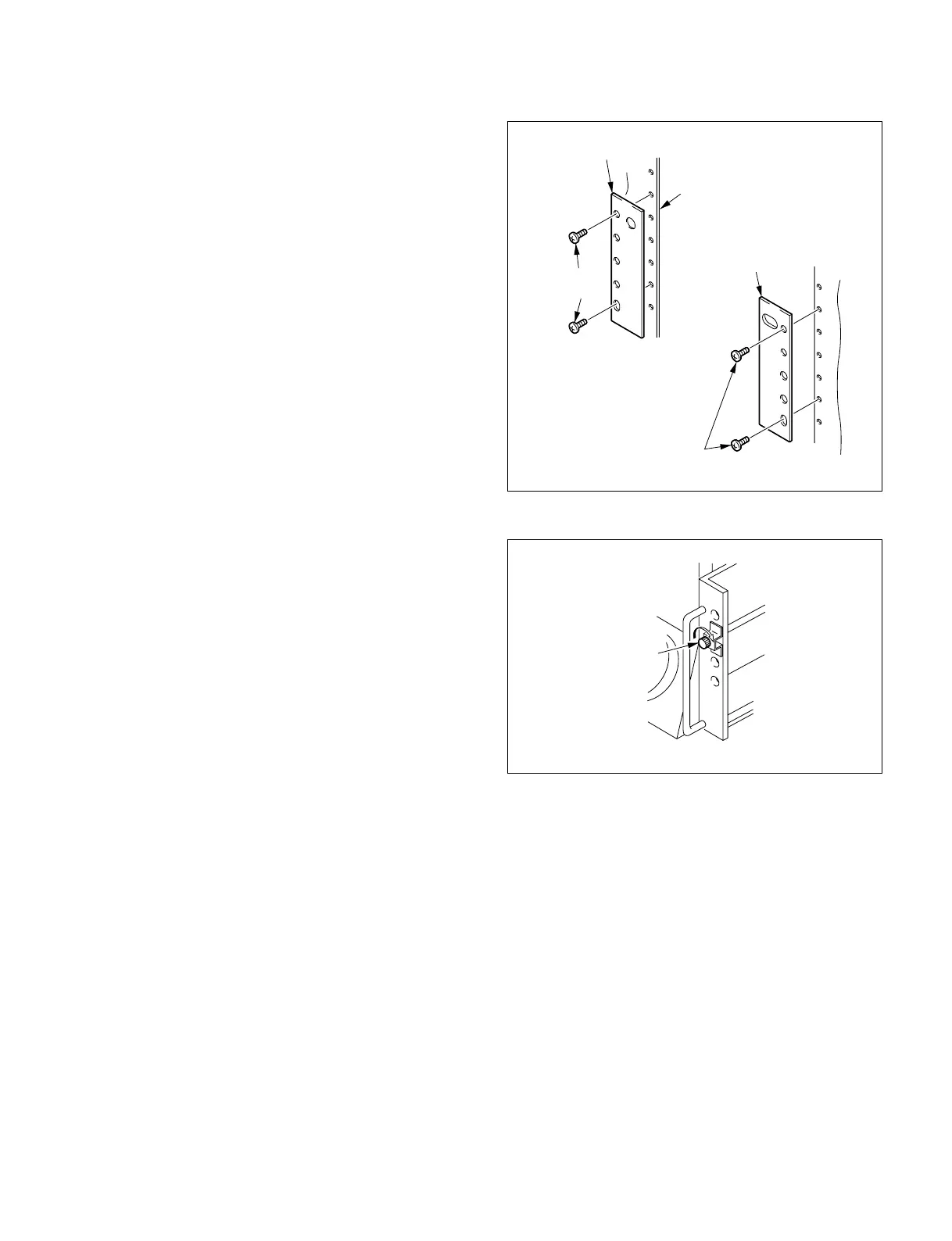

(6) Remove the two screws, then remove guide plates (L) and
(R).
Notes: • With the guide plates installed, the VTR can-
not be fixed to the proper position. Be sure to
remove the guide plates.
• Never remove the guide plates when the
VTRs installed by rear drawer system.
(7) Push the VTR in the rack, tighten the fixing screw shown in
the figure, and fix the VTR.
GUIDE PLATE (R)
SCREWS
(+B 5x10)
SCREWS
(+B 5x10)
GUIDE PLATE (L)
FRAME
FIXING
SCREW
To Next Page
