4-54
BFC-1

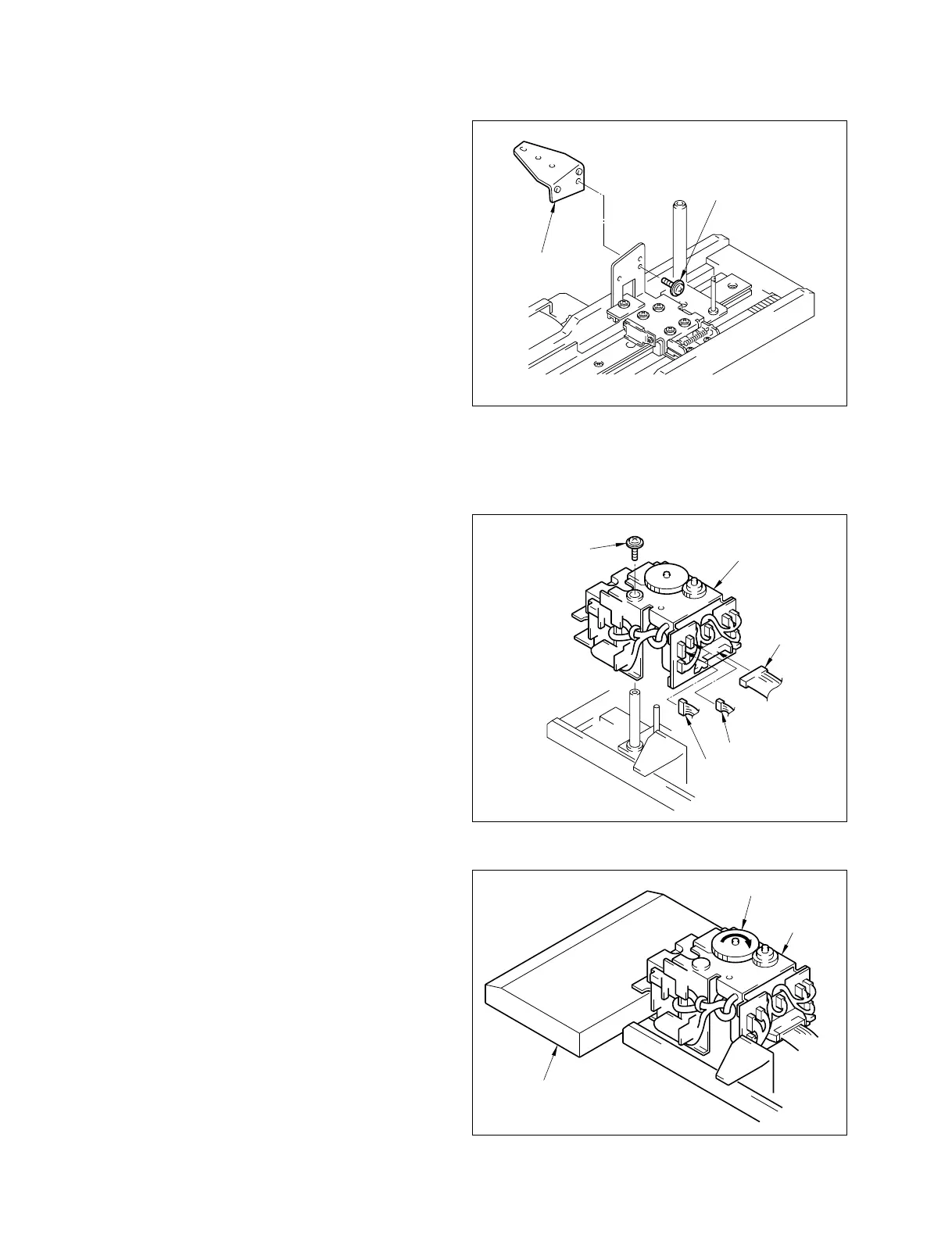

5. Replacement of BCR bracket
(1) Remove one screw, then remove the BCR bracket.
(2) Install the BCR bracket (DV) of BKFC-210 in the eleva-
tor with the screw (PWH 3x5) removed in step (1).
[Reference]
For the installation of a barcode reader, refer to Appendix
A in the Maintenance Manual.
[Note]
The remainder of the procedure vary with models.
.DSR-60/80 series :See procedure 6 through 8.
.DSR-1600/1800/2000 series :See procedure 9 through 11.
6. Hand assembly installation
(For DSR-60/80 series VTRs)
(1) Install the hand assembly in the elevator with one screw.
(2) Connect the harnesses disconnected in step (2) of proce-
dure 1 to the former connectors.
7. Height confirmation of VTR shutter plate
(For DSR-60/80 series VTRs)
(1) Turn the gear shown in the figure so that the hand re-
tains the cassette while pressing the DV cassette against
the finger.
SCREW
(PWH 3x5)
BRC BRACKET
HAND
ASSEMBLY
SCREW
(PWH 4x8)
CN1
CN2
CN8
HAND
ASSEMBLY
GEAR
DV CASSETTE
To Next Page
