1-1. KDL-50W800C/805C/807C/809C

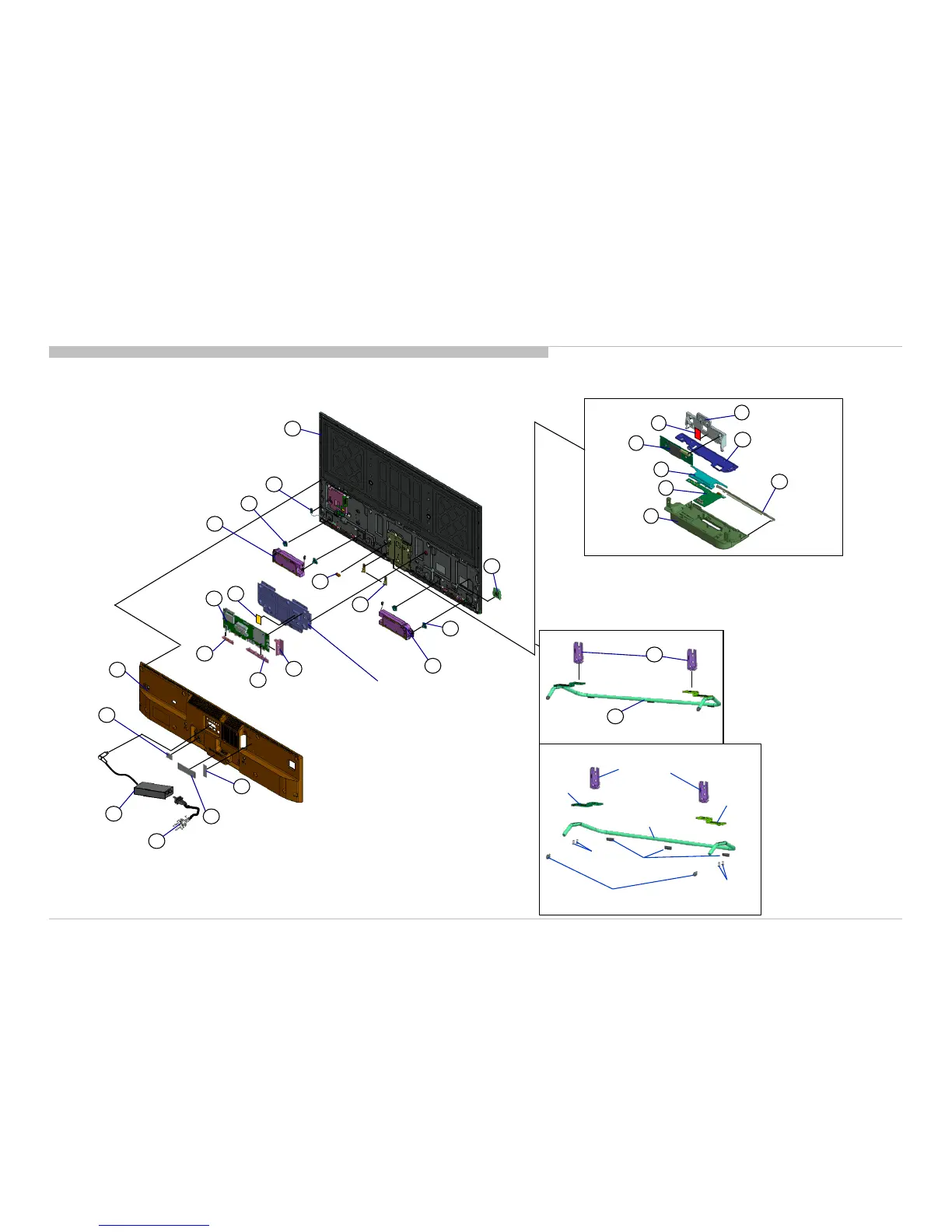

1-1-1. Disassembly, Exploded View
DISASSEMBLY AND PARTS LIST
KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C
9
BRACKET SIDE
BRACKET,
SC
16
5
6
UNDERCOVER
4
LABEL, SIDE
TERMINAL
LABEL, UNDER
TERMINAL
BMX BOARD
7
8
BRACKET UNDER
11
SWITCH
UNIT
LABEL, UNDER
TERMINAL (TU)
3
BRACKET
UNDER, TU
17
55
BRACKET, WIFI
51
PANEL,
ORNAMENT
WLAN/BT
MODULE
COVER, TOP
LIGHT, GUIDE
SHEET,
THERMAL (SC)
HSC3_S M MOUNT
CASE,
BOTTOM (L)
53
54
52
56
57
58
SMART CORE BLOCK
POWER SUPPLY
CORD
2
This part is not stocked.
The purpose of indicated
in this illustrator is just for
reference only.
15
BRACKET, SP
14
SPEAKER BOX ASSY (R)
13
BT ANTENNA
10
SHEET, THERMAL
BRACKET, SP
14
12
SPEAKER BOX
ASSY (L)
19
LCD PANEL
GASKET
18
1
AC ADAPTOR
Stand exploded view are for reference purpose. (Child parts are UNSTOCKED
unless specified at 1-1-2: Screws)
STAND BLOCK
STAND, SHAFT
72
STAND NECK ASSY
71
SCREW, M4 LOCK
FOOT, REAR
FOOT, FRONT
STAND, SHAFT
SCREW, M4 LOCK
ARM L
ARM R
STAND, NECK
