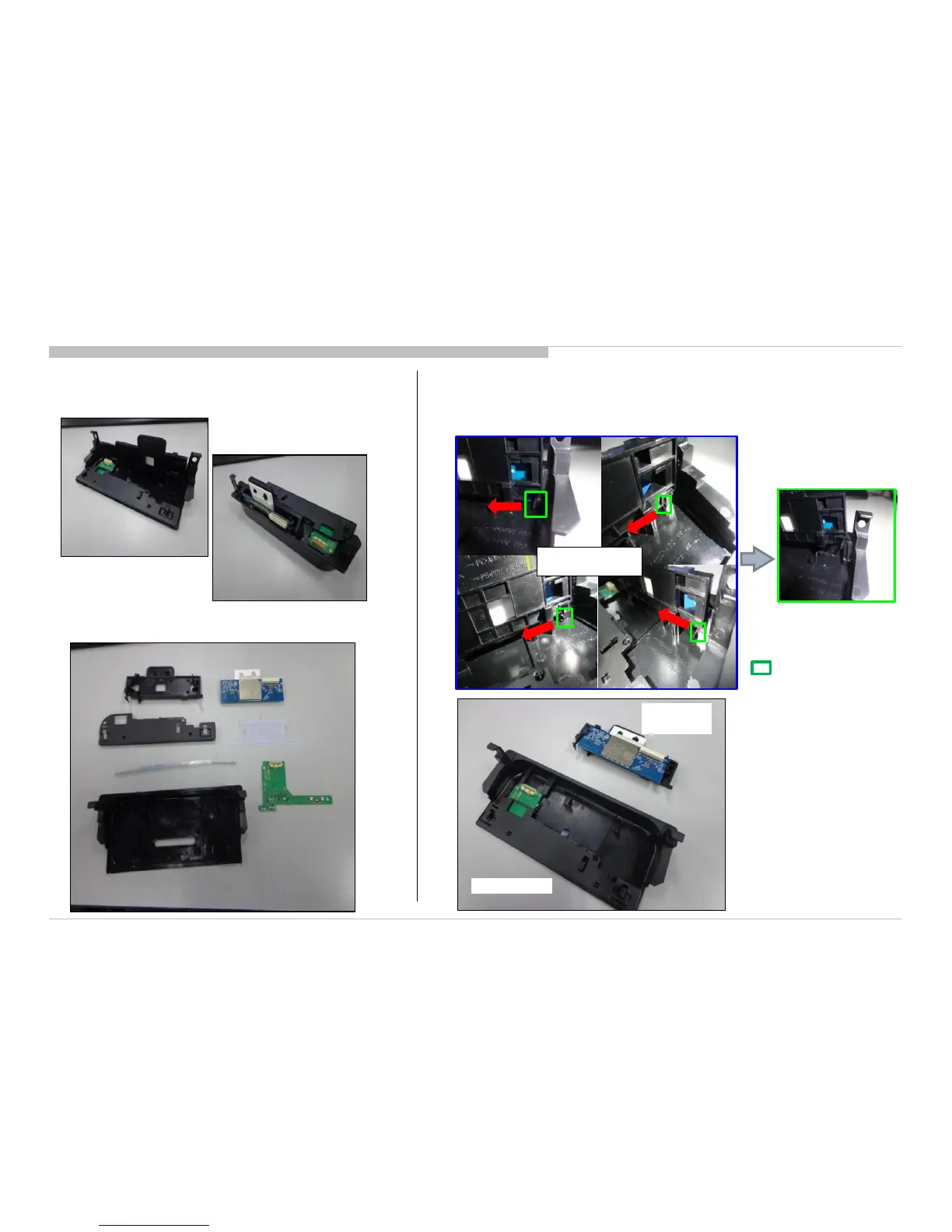

1-2. Procedure To Disassemble Smart Core
1-2-1. General
95
FRONT VIEW
BACK VIEW
SMART CORE PARTS
CASE,
BOTTOM (L)
HSC3_S M
PANEL,
ORNAMENT
LIGHT,
GUIDE
COVER,
TOP
WLAN/BT
MODULE
BRACKET,
WIFI
KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C
Step 1 : Remove WIRELESS CASE by pulling the hook in the direction as shown
HOOK PULL
DIRECTION
: Hook location
WIRELESS
CASE
LIGHT CASE
1-2-2. Smart Core Disassembly
APPENDIX-1
To Next Page
