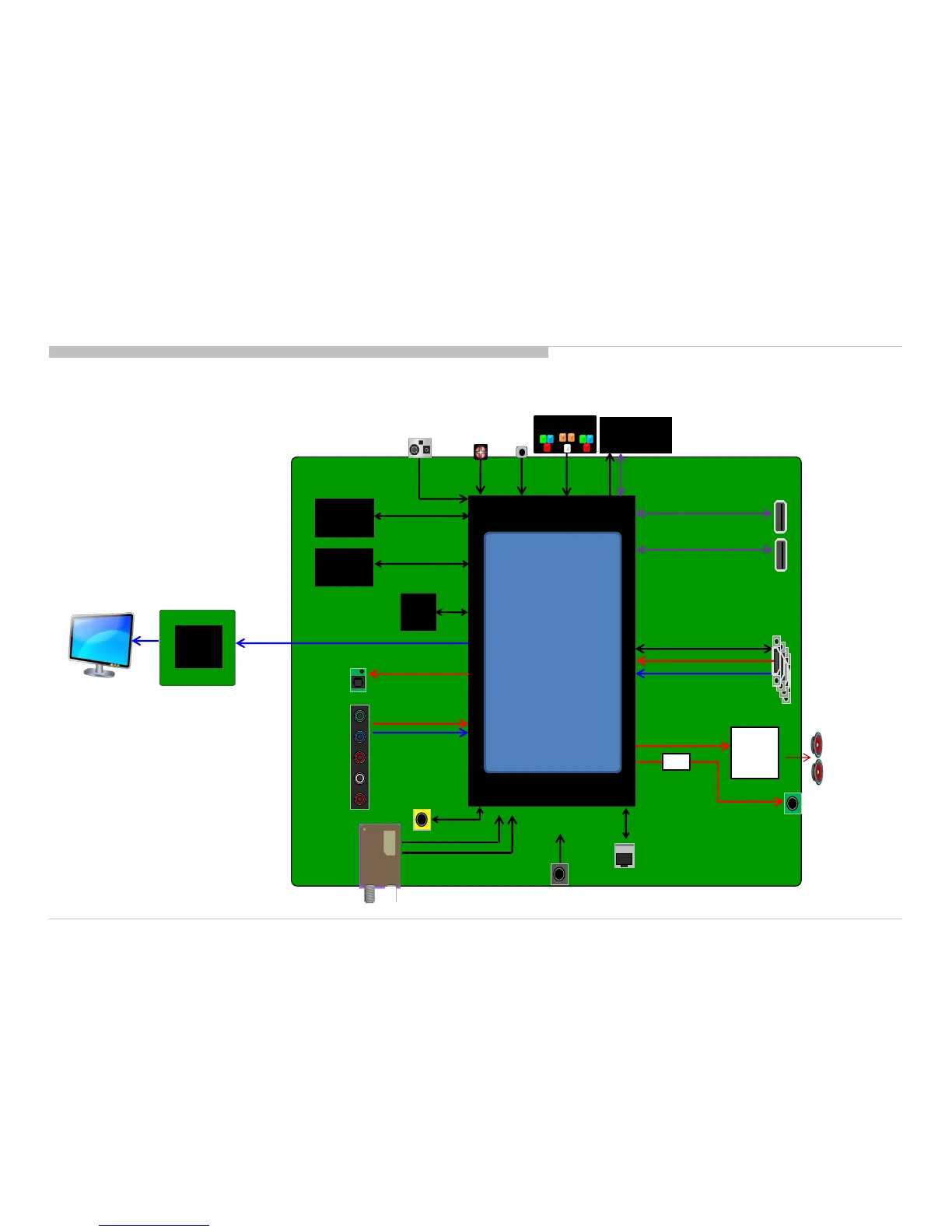

4-1-2. XM-A model (UC)
DIAGRAMS
KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C
Muffin
HDMI×4
SPDIF
HP
L/R
Out
Key
GPIO
SIRCS
OptSens
WIFI &
Bluetooth
Ether
HDMI 1.4
/ MHL2.0
eMMC
16GB
LVDS
Sircs
GPIO
GPIO
AMP
USB2.0
LED
USB1
LVDS
/60Hz
IF
TS
BMX
SP
2ch
I2S
USB2.0
USB2.0
USB2 / HDD
GPIO
u-Con.
SIRCS
C4 Sircs in
HDMI
S-mini
RS232
FRC+Tcon
(120Hz)
ARM Cortex A12 dual
core
Cortex-A12 NEON
X-Reality Pro
Multi-format Decoder.
3D OpenGL ES3.0, DX11
DRAM Controller
USB×4
HDMI 1.4a, MHL2.0
LVDS/V-by-One
TCON,
Local Dimming
Video Processor
Audio Processor
2D/3D Converter
DEMOD(ATSC,DVB-T/C)
ADC/DAC
Ethernet MAC+PHY
120Hz
XM-H: Active 3D
Audio
P-AMP
BD28620
DDR3
2.5GB (4Gb×5)
