HBD-E370/E470/E570/E870/T57
16

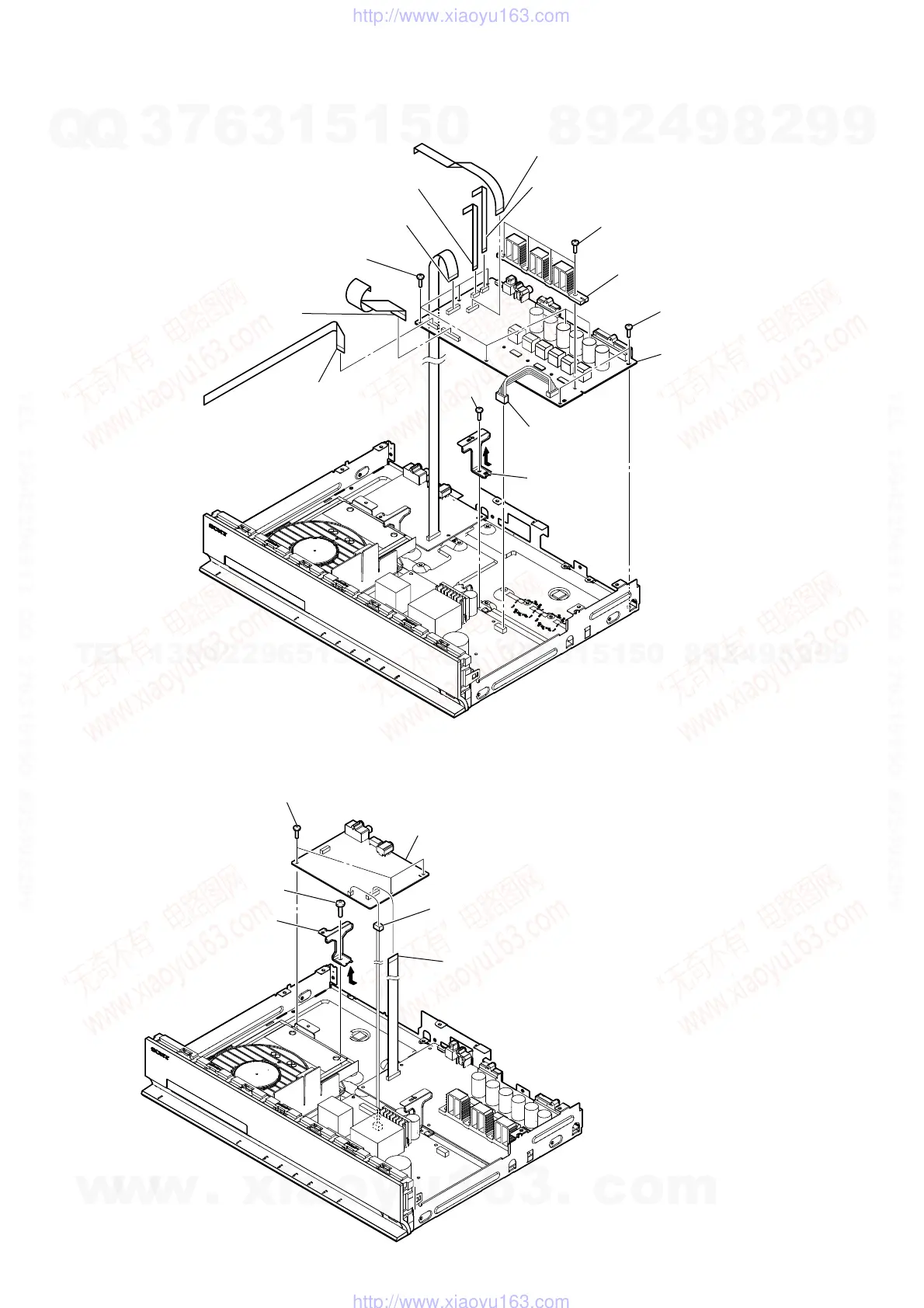

2-10. MAIN BOARD
2-11. AUDIO BOARD
5 wire (flat type) (27 core)
(CN505)
6 wire (flat type) (15 core)
(CN508)
1 screw
(BV3)
3 bracket R
(MB foot)
2
4 connector
(CN904)
7 wire (flat type) (15 core) (CN504) (US, Canadian)
wire (flat type) (17 core) (CN502) (AEP, UK)
8 wire (flat type) (15 core)
(CN702)
q; wire (flat type) (16 core)
(CN703)
9 wire (flat type) (18 core)
(CN701)
qa four screws
(BV3)
qd two screws
(BV3)
qd six screws
(BV3)
qf MAIN board
qs heat sink
(S-master DDV)
6 three screws (BV3)
7 AUDIO board
3 bracket L (MB foot)
1 screw (BV3)
2
4 connector
(CN17)
5 wire (flat type) (15 core) (CN13) (US, Canadian)
