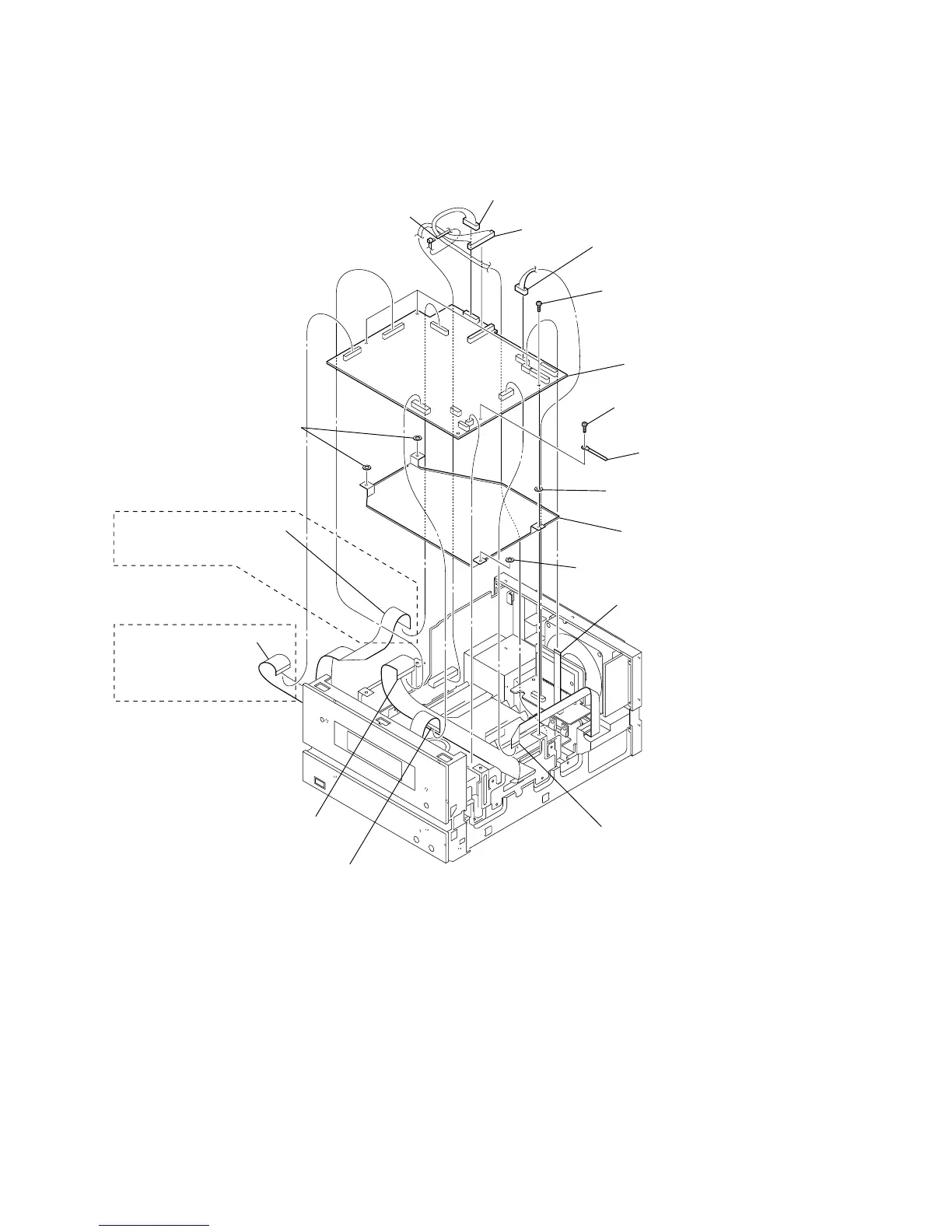

Sony HCD-BX5BT - MAIN BOARD AND SHIELD PLATE REMOVAL; MAIN BOARD AND SHIELD PLATE (PWB MAIN)

HCD-BX5BT/CBX1/CBX3
12
2 flexible flat cable (19 core)
(CN304)
(CBX3)
(BX5BT)
qa three screws
(BVTT3
× 6)
qs screw
(BVTT3
× 6)
qf MAIN board
qd coating clip
qh shield plate (PWB MAIN)
3 flexible flat cable (15 core)
(CN323)
4 flexible flat cable (5 core)
(CN309)
7 Cut the clamp.
1 flexible flat cable (21 core: BX5BT/CBX1)
flexible flat cable (25 core: CBX3)
(CN305)
6 flexible flat cable (13 core)
(CN306)
5 flexible flat cable (9 core: BX5BT/CBX1)
flexible flat cable (11 core: CBX3)
(CN310)
9 connector
(CN303)
0 connector
(CN321)
8 connector
(CN312)
qg washer
qg two washers
qg washer
3-4. MAIN BOARD, SHIELD PLATE (PWB MAIN)
