2
SS-RS550
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

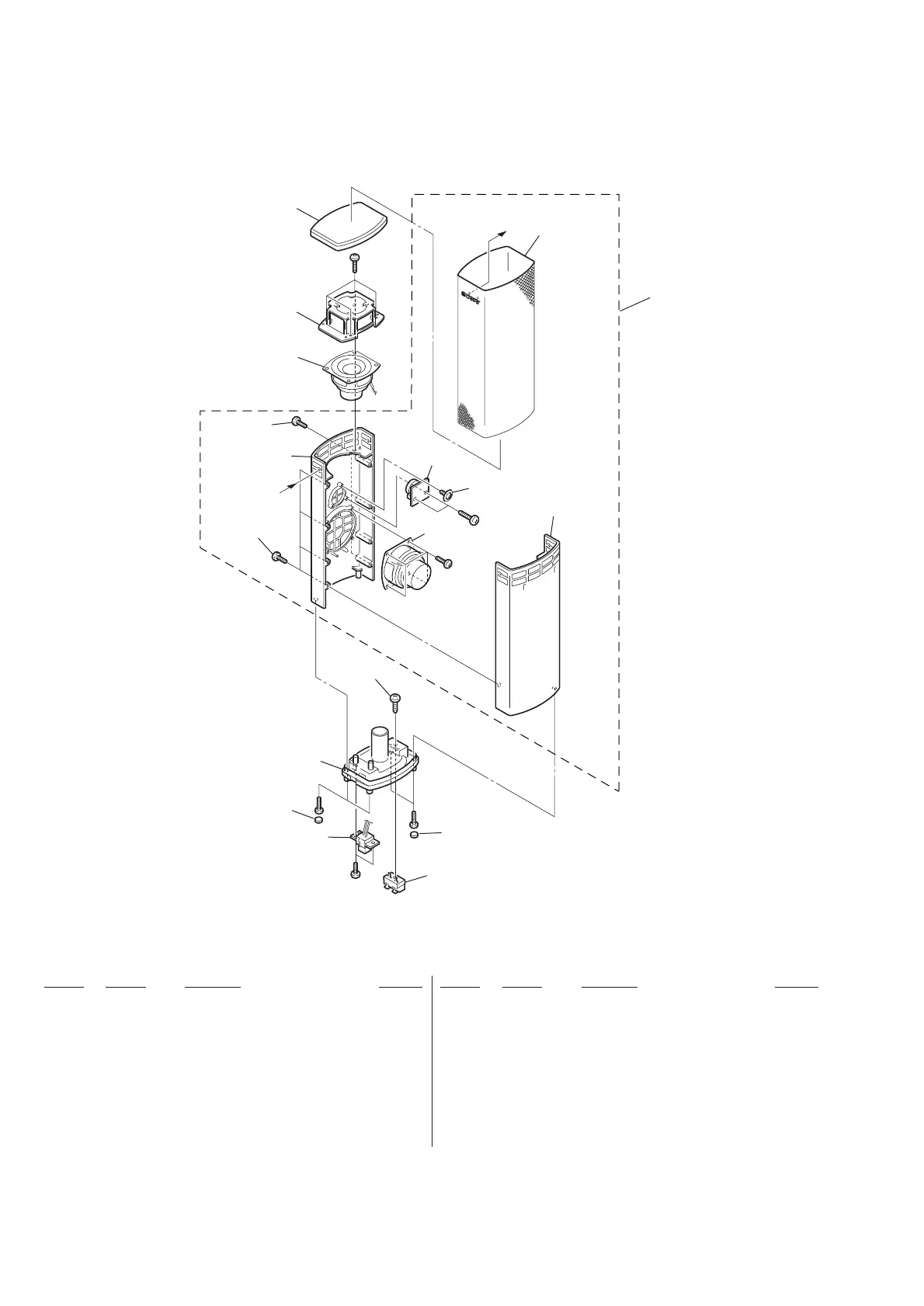

EXPLODED VIEW AND PARTS LIST
1. SPEAKER SECTION
#1
#7
#1
#8
#1
#8
1
2
4
10
4
5
6
7
7
9
8
3
not
supplied
not
supplied
not
supplied
SP1
SP1
SP2
a
a
1 4-236-937-01 CAP, REAR
2 4-236-155-01 REFLECTOR (REAR)
3 X-4954-216-1 BRACKET (REAR.R) SUB ASSY, NET
3 X-4954-217-1 BRACKET (REAR.L) SUB ASSY, NET
4 4-229-428-01 SCREW, +BVTP TAPPING
5 4-237-867-01 SCREW (3.5X10), +BTP TAPPING
6 4-237-080-01 HOLDER (REAR.L), TERMINAL
6 4-237-081-01 HOLDER (REAR.R), TERMINAL
7 4-236-758-01 FOOT (FRONT)
8 1-823-533-11 CORD (WITH CONNECTOR)
9 1-694-836-11 TERMINAL, SPEAKER
10 4-237-868-01 SCREW TAPPING +PWH 2.6X6
SP1 1-544-955-11 SPEAKER (56mm)
SP2 1-544-942-11 LOUD SPEAKER (1.1cm)
#1 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#7 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#8 7-685-137-19 SCREW +P 2.6X14 TYPE2 NON-SLIT
