Sony HCD-C900 - Chassis Section

78
HCD-C700/C900
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-4726-404-A TUNER UNIT (US, CND)
51 A-4726-588-A TUNER UNIT (AEP, UK)
51 A-4726-594-A TUNER UNIT (MX)
51 A-4726-905-A TUNER UNIT (E, MY, SP, HK)
52 1-823-082-11 CABLE, FLEXIBLE FLAT (13 CORE)
53 A-4726-380-A I/O MOUNTED PC BOARD (US)
53 A-4726-818-A I/O MOUNTED PC BOARD
(CND, E, MY, SP, HK, MX, AUS)
53 A-4726-917-A I/O MOUNTED PC BOARD (C900)
53 A-4727-015-A I/O MOUNTED PC BOARD (AEP,UK)
54 1-823-124-11 CABLE, FLEXIBLE FLAT (29 CORE)
55 1-823-355-11 CABLE, FLEXIBLE FLAT (13 CORE)
56 4-234-924-01 FOOT
57 A-4726-386-A AMP BOARD (US)
57 A-4726-816-A AMP BOARD (CND, MX)
57 A-4726-915-A AMP BOARD (C900)
57 A-4727-013-A AMP BOARD (AEP, UK, E, MY, SP, HK)
58 A-4726-918-A COMPONENT MOUNTED PC BOARD
59 X-4953-868-1 BACK PANEL SUB ASSY (C700:US)
59 X-4954-115-1 PANEL SUB ASSY, BACK (C700:CND)
59 X-4954-145-1 BACK PANEL SUB ASSY (C900:US)
59 X-4954-146-1 BACK PANEL SUB ASSY (C900:CND)
59 X-4954-160-1 PANEL SUB ASSY, BACK (AEP,UK)
59 X-4954-162-1 PANEL SUB ASSY, BACK (MY, SP)
59 X-4954-163-1 PANEL SUB ASSY, BACK (HK)
59 X-4954-164-1 PANEL SUB ASSY, BACK (AUS)
59 X-4954-165-1 PANEL SUB ASSY, BACK (E)
59 X-4954-194-1 PANEL SUB ASSY, BACK (MX)
60 4-234-933-01 COVER, MD
61 A-4726-381-A POWER BOARD, COMPLETE (C700:US)
61 A-4726-832-A POWER BOARD, COMPLETE (C700:CND)
61 A-4726-912-A POWER BOARD, COMPLETE (C900:US)
61 A-4726-919-A POWER BOARD, COMPLETE (C900:CND)
61 A-4727-010-A POWER BOARD, COMPLETE
(AEP, UK, E, MY, SP, HK, AUS)
61 A-4727-058-A POWER BOARD, COMPLETE (MX)
62 1-823-080-11 CABLE, FLEXIBLE FLAT (25 CORE)
63 1-823-083-11 CABLE, FLEXIBLE FLAT (9 CORE)
64 1-823-078-11 CABLE, FLEXIBLE FLAT (17 CORE)
65 1-823-125-11 CABLE, FLEXIBLE FLAT (12 CORE)
66 1-823-084-11 CABLE, FLEXIBLE FLAT (17 CORE)
67 A-4726-913-A DVD BOARD, COMPLETE (C900)
67 A-4726-938-A DVD BOARD, COMPLETE (C700:US)
67 A-4726-940-A DVD BOARD, COMPLETE (C700:CND)
67 A-4727-011-A DVD BOARD, COMPLETE (AEP, UK)
67 A-4727-016-A DVD BOARD, COMPLETE (HK, SP)
67 A-4727-018-A DVD BOARD, COMPLETE (E, AUS)
67 A-4727-059-A DVD BOARD, COMPLETE (MX)

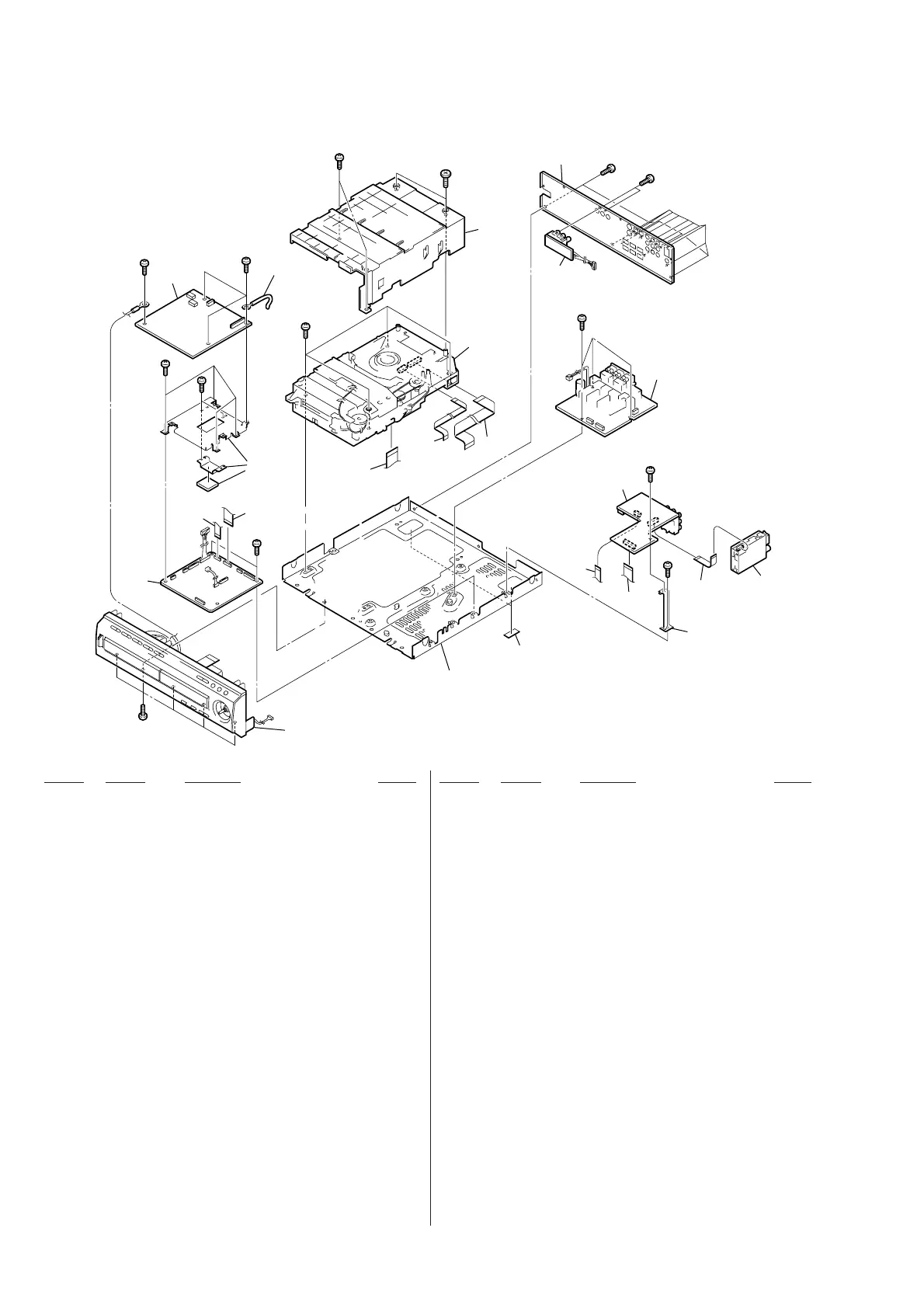

6-2. CHASSIS SECTION
CDM53K
-DVBU7
not
supplied
not
supplied
not
supplied
not
supplied
51
52
53
57
58
59
62
63
64
#3
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
56
54
55
60
61
65
66
67
Front panel section
