SS-CT550
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

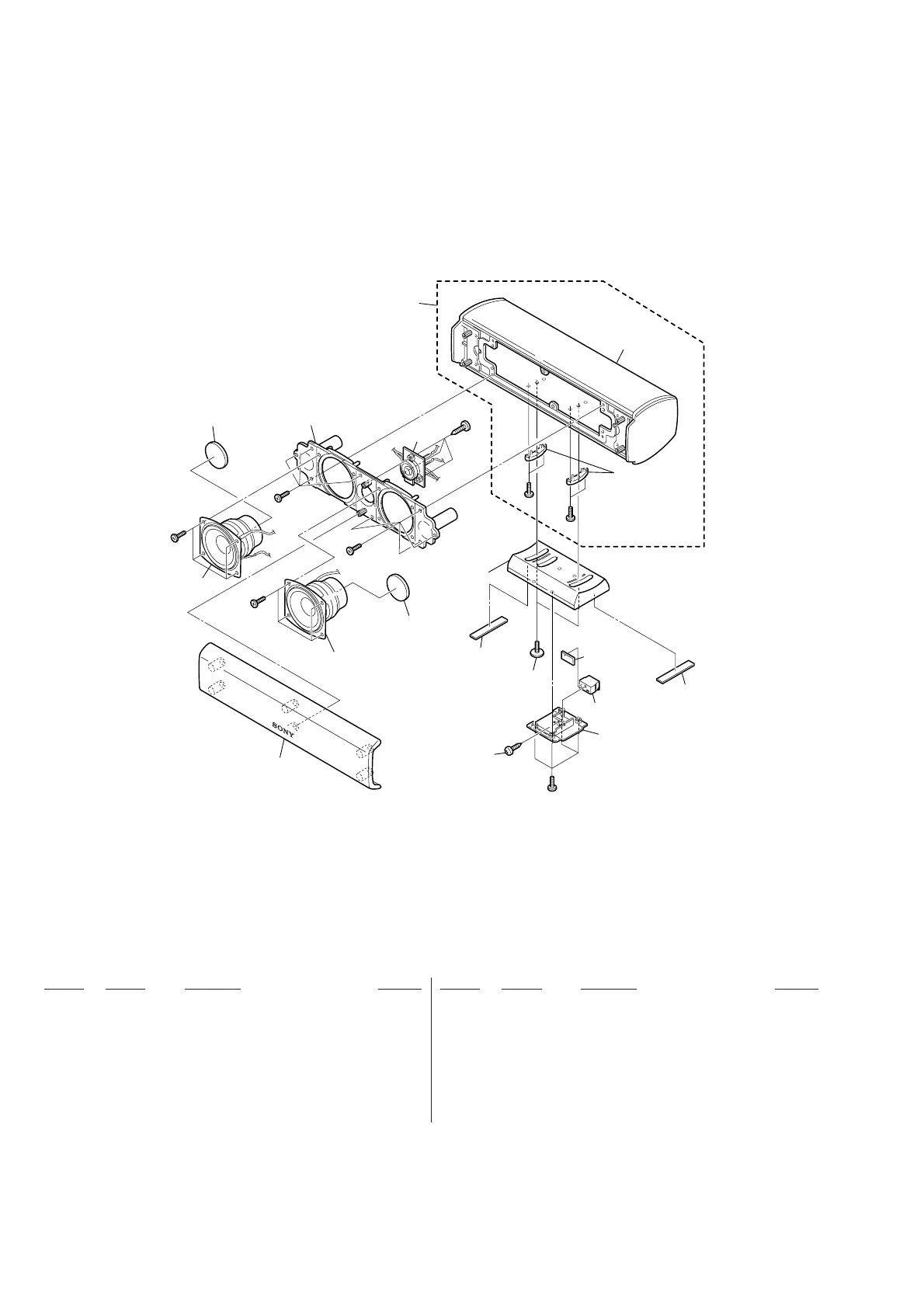

EXPLODED VIEW AND PARTS LIST
#1
#1
#1
#1
#1
#1
#2
#2
not
supplied
not
supplied
not
supplied
not
supplied
4
1
8
6
7
5
5
2
3
2
SP1
SP1
SP2
9
1 X-4954-185-1 BRACKET NET (CENTER) SUB ASSY
2 4-237-441-01 RUBBER (SPK), CUSHION
3 4-236-935-01 PANEL, BUFFLE (CENTER)
4 A-4735-531-A ALMINUM CENTER ASSY
5 4-236-755-01 FOOT (CENTER)
6 1-694-836-11 TERMINAL, SPEAKER
7 4-236-934-01 COVER (JACK)
8 4-237-867-01 SCREW (3.5X10), +BTP TAPPING
9 4-237-082-01 SCREW (2-6X10), PWH TAPPING
SP1 1-544-955-11 SPEAKER (56mm)
SP2 1-544-942-11 LOUD SPEAKER (1.1cm)
#1 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#2 7-685-105-14 TAPPING +P 2X8 NON-SLIT
