SS-WS550
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

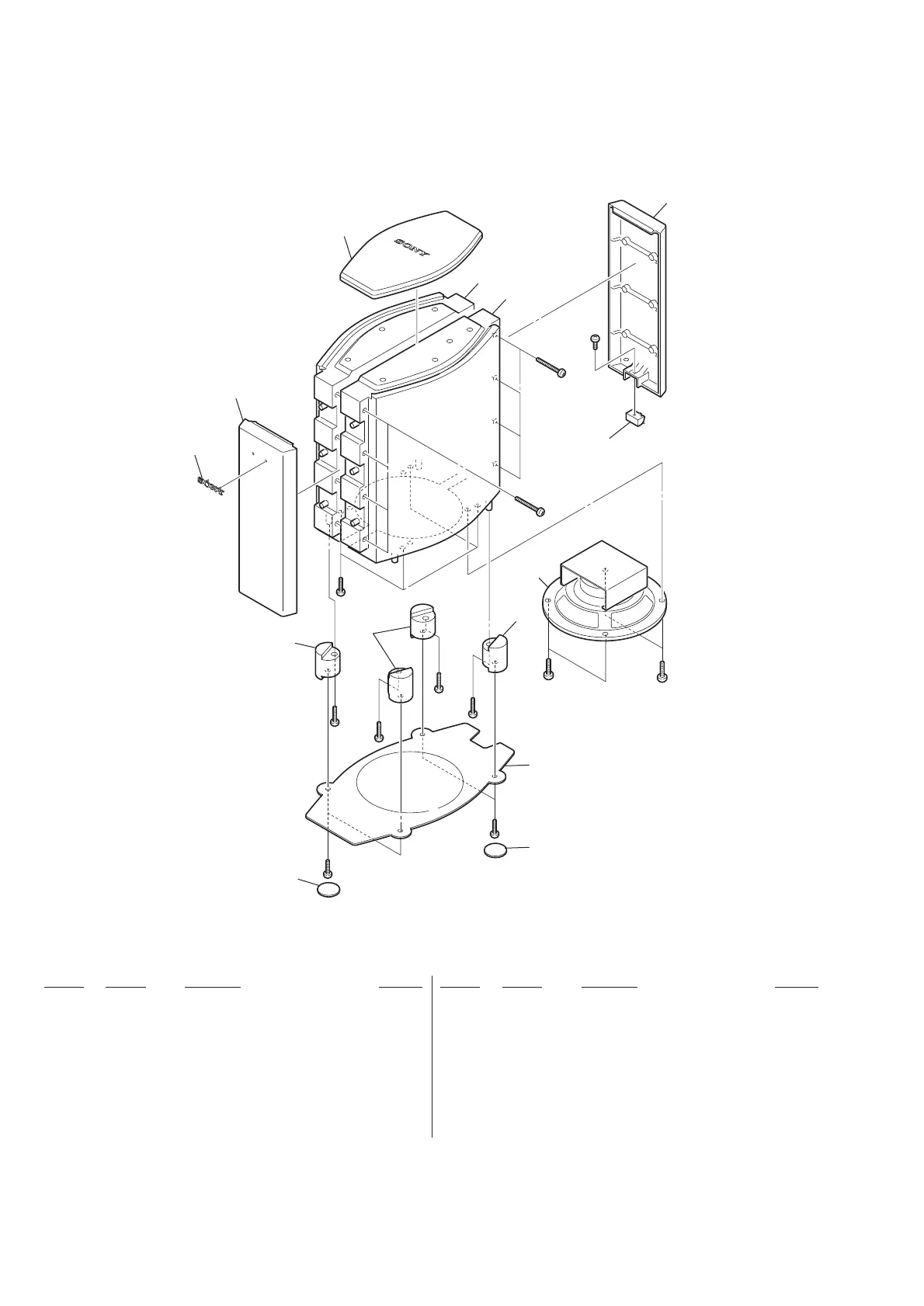

EXPLODED VIEW AND PARTS LIST
1
not
supplied
2
3
4
5
5
5
6
7
7
SP1
#4
#4
#3
#3
#3
#3
#5
#5
#4
#2
#1
8
9
#2
1 4-949-384-11 EMBLEM (NO.6), SONY
2 4-237-097-01 PANEL, FRONT
3 4-237-104-01 PANEL, TOP
4 4-237-098-01 PANEL, BACK
5 4-237-100-01 FOOT
6 4-237-105-01 COVER (BOTTOM)
7 4-237-101-01 FOOT (FELT)
8 4-237-102-01 CABINET (R)
9 4-237-103-01 CABINET (L)
SP1 1-544-962-11 SPEAKER (20cm)
