Sony HCD-D690 - SECTION 2 DISASSEMBLY; CASE

– 22 –

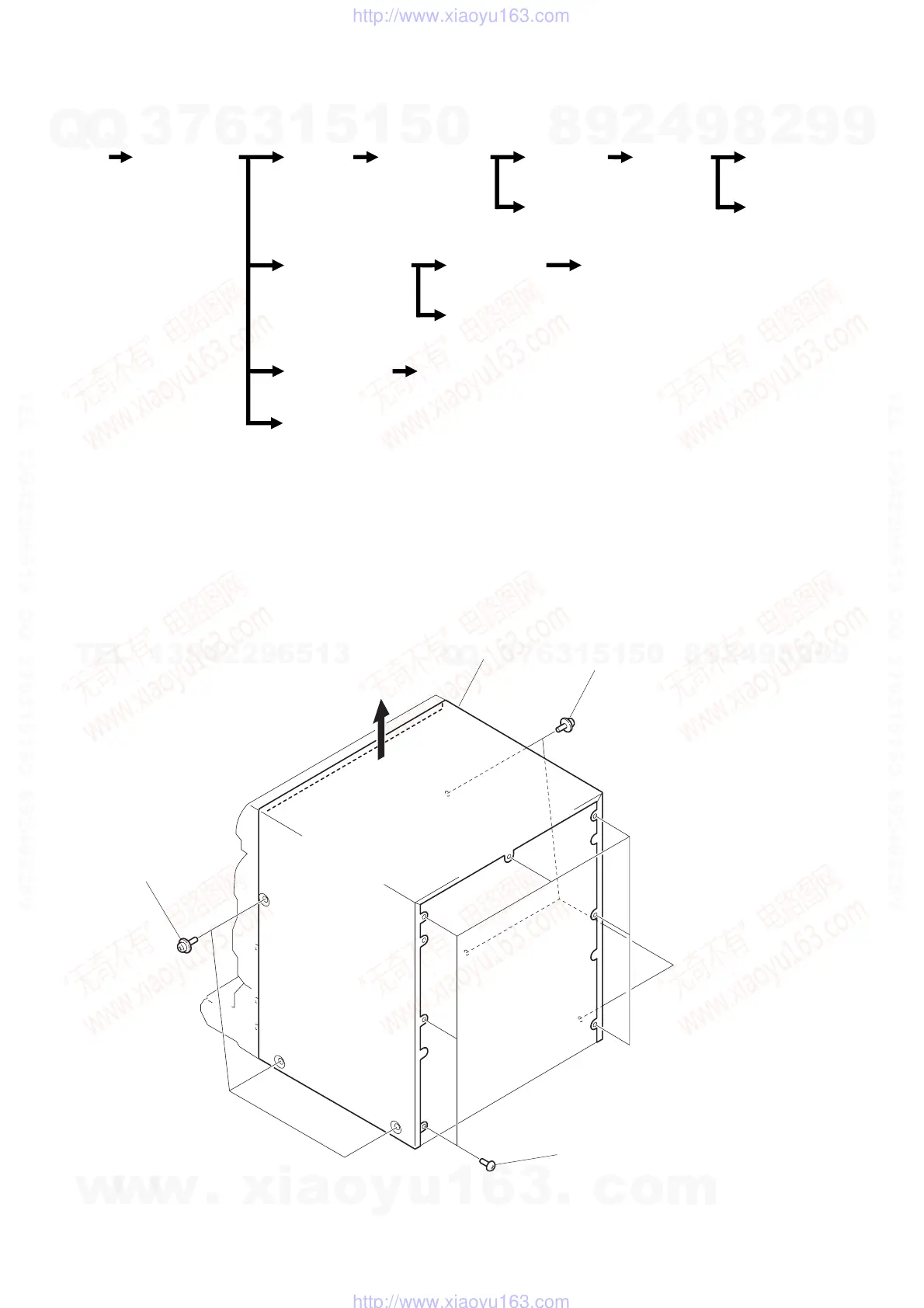

• This set can be disassembled in the order shown below.
SECTION 2
DISASSEMBLY
CASE
Note: Follow the disassembly procedure in the numerical order given.
1
three screws
(case 3 point)
1 three screws
(case 3 point)
2 seven screws
(BVTT 3
× 6)
3 case
MAIN BOARD
(
Pa
g
e 23
)
CD LID ASS’Y
SECTION
(Page 26)
TAPE MECHANISM
DECK SECTION
(Page 25)
MAIN
SECTION
(Page 24)
AUDIO BOARD
(Page 29)
CASSETTE
LID ASS’Y
(Page 25)
CD MECHANISM
DECK SECTION
(Page 24)
DISC TABLE
(Page 27)
BASE UNIT
(Page 27)
BD BOARD
(Page 28)
PANEL (A)/(B)
SUB ASS’Y
(Page 26)
CAPSTAN MOTOR
(Page 29)
OPTICAL
PICK-UP
(Page 28)
SLED
MOTOR
(Page 28)
FRONT PANEL
SECTION
(Page 23)
CASE
(Page 22)
