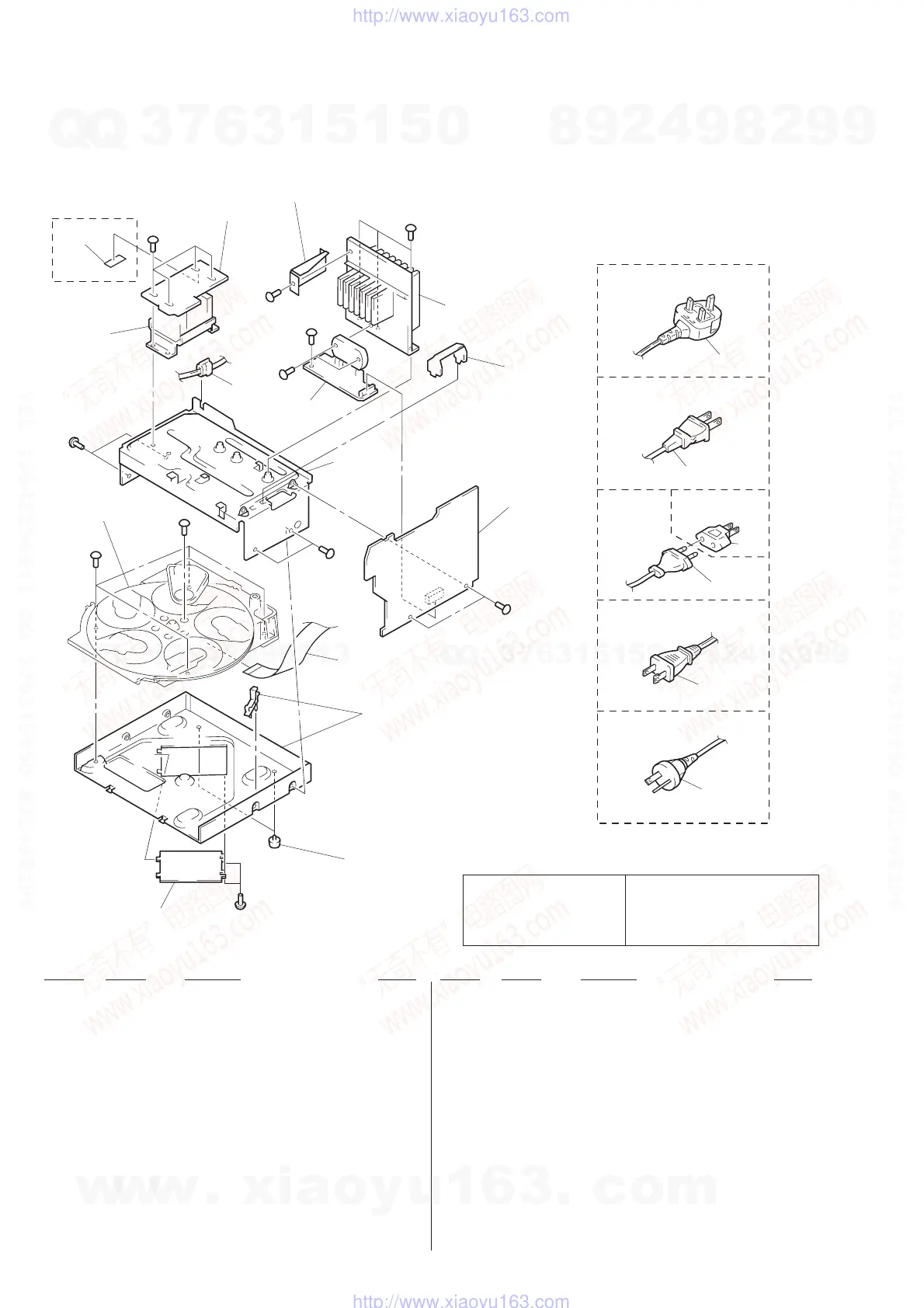

(4) CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
E, AR, MX
152
#2
151
#1
not supplied
#1
not supplied
#1
153
#4
154
#1
#1
#1
#1
#1
#1
not supplied
not supplied
156
155
CDM37L-5BD29AL
UK
E, MX
158
CNP901
AEP, EE,
CIS, AR
AR
CNP901
CNP901
CNP901
US, CND
AUS
157
CNP901
T901
159
not
supplied
* 151 1-664-014-11 TRANS BOARD
152 3-701-948-20 LABEL (T4A), FUSE (E,AR,MX)
153 3-703-244-00 BUSHING (FBS001), CORD
(EXCEPT E,AR,MX)
153 4-966-266-01 BUSHING (S) (FBS002), CORD (E,AR,MX)
* 154 A-4392-410-A POWER AMP BOARD, CONPLETE (US,CND)
* 154 A-4392-425-A POWER AMP BOARD, CONPLETE (AEP,UK)
* 154 A-4392-436-A POWER AMP BOARD, CONPLETE
(E,AR,MX,AUS)
* 154 A-4398-360-A POWER AMP BOARD, CONPLETE (EE,CIS)
* 155 A-4392-407-A MAIN BOARD, CONPLETE (US,CND)
* 155 A-4392-430-A MAIN BOARD, CONPLETE (AEP,UK)
* 155 A-4392-433-A MAIN BOARD, CONPLETE (E,AR,MX)
* 155 A-4392-742-A MAIN BOARD, CONPLETE (AUS)
* 155 A-4398-674-A MAIN BOARD, CONPLETE (EE,CIS)
156 1-777-868-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
158 1-569-008-11 ADAPTOR, CONVERSION 2P (AR)
* 159 4-988-533-01 HOLDER, PCB (MALAYSIA PRODUCT)
* 159 4-988-533-11 HOLDER, PCB (EXCEPT MALAYSIA PRODUCT)
! CNP901 1-558-943-41 CORD, POWER (E,MX)
! CNP901 1-575-042-21 CORD, POWER (US,CND)
! CNP901 1-575-651-21 CORD, POWER (AEP,EE,CIS,AR)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! CNP901 1-751-529-11 CORD, POWER (UK)
! T901 1-431-050-11 TRANSFORMER, POWER (US)
! T901 1-431-051-11 TRANSFORMER, POWER (AEP,UK,EE,CIS)
! T901 1-431-052-11 TRANSFORMER, POWER (E,AR,MX,AUS)
! T901 1-431-294-11 TRANSFORMER, POWER (CND)
