5
HCD-DP1000D
Ver 1.6 2003.01

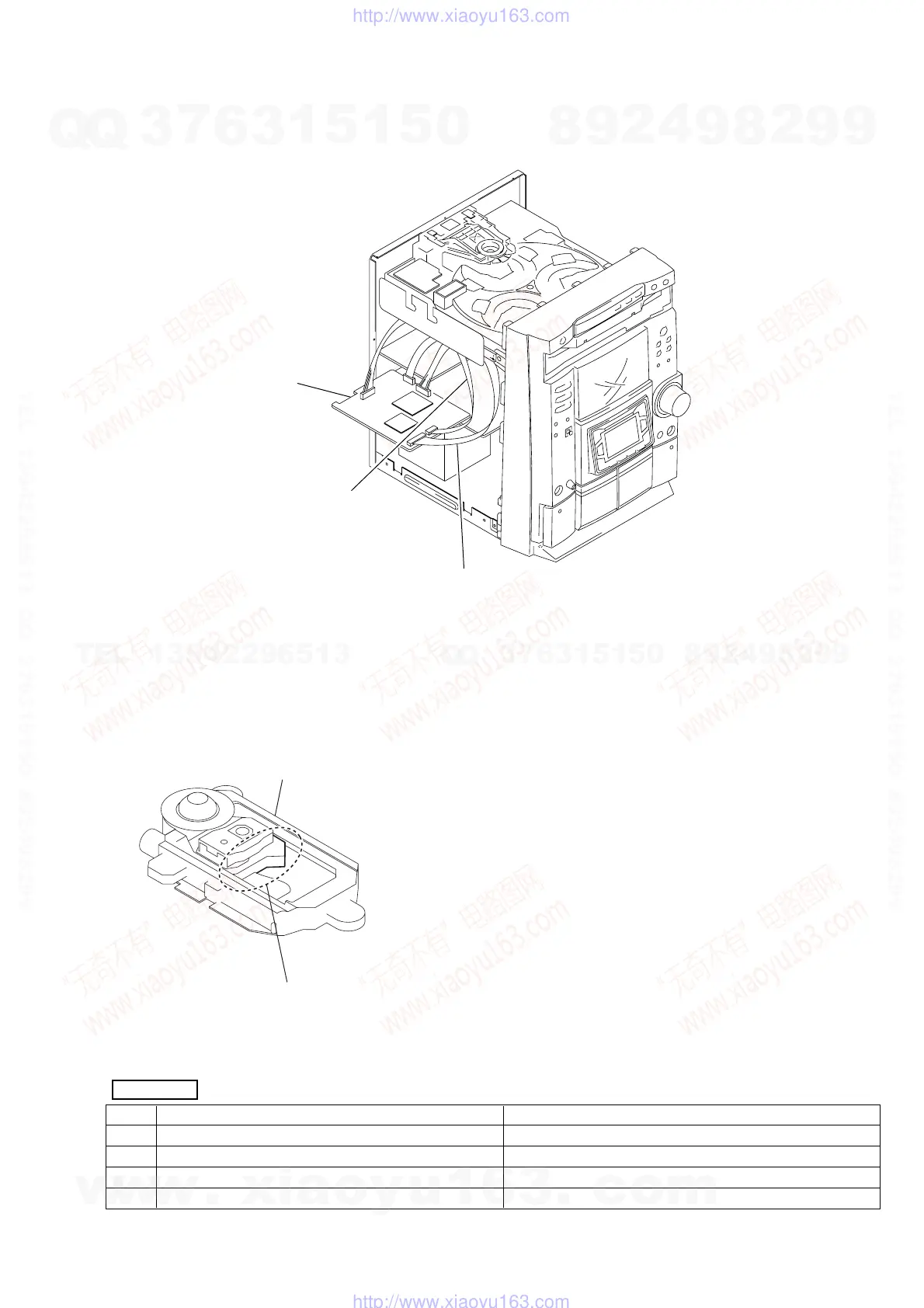

SERVICE POSITION
Jig (J-2501-155-A)
to RF240 board : CN004
Jig (J-2501-199-A)
to RF240 board : CN002
MB board
CHANGE OF OPTICAL PICK-UP
Optical Pick-up has been replaced from KHM-240AAA (TYPE A) to KHM-270AAA (TYPE B) from the middle of production.
In parallel with that, certain parts of MB board have been changed.
TYPE A/B DISCRIMINATION
SILVER: KHM-240AAA (TYPE A)
BLACK: KHM-270AAA (TYPE B)
optical device
PA RTS LIST OF EACH MODEL
MB BOARD
REF TYPE A TYPE B
KHM-240AAA KHM-270AAA
R076 1-216-837-11 METAL CHIP 22K 5% 1/10W No Mount
R077 1-216-815-11 METAL CHIP 330 5% 1/10W 1-216-833-11 METAL CHIP 10K 5% 1/10W
R079 1-216-801-11 METAL CHIP 22 5% 1/10W 1-216-845-11 METAL CHIP 100K 5% 1/10W
