SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

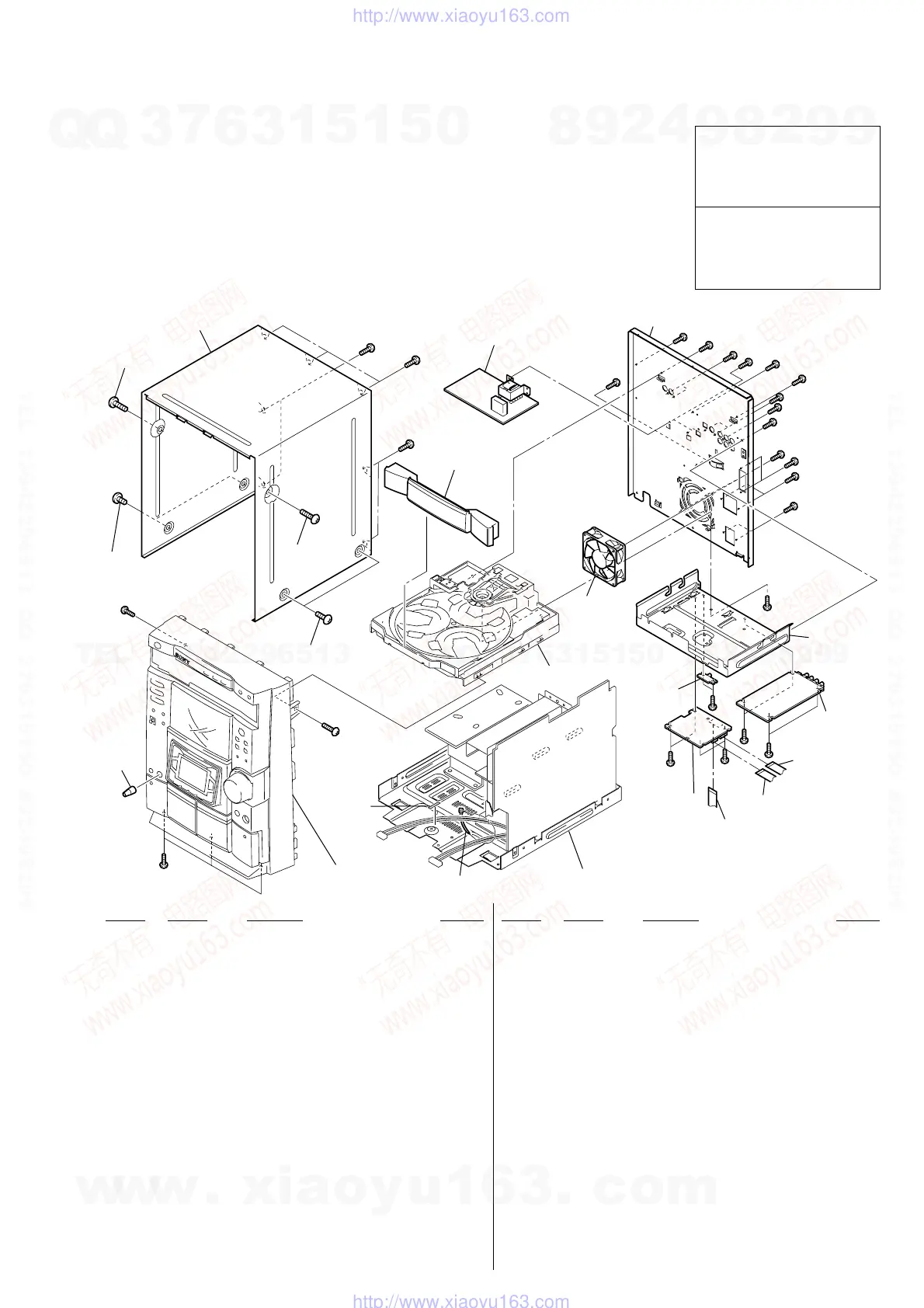

7-1. MAIN SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
CND : Canadian model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
MX : Mexican model
E91 : 220V AC area model
AUS : Australian model
#1
#1
#1
#1
#1
#1
1
6
1
2
2
10
8
11
4
12
15
14
16
13
Front panel section
Chassis section
CD mechanism deck
M961
#1
#2
#6
#1
#2
#1
#1
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#6
#6
#2
3
5
7
9
1 3-363-099-41 SCREW (CASE 3 TP2)
2 3-363-099-01 SCREW (CASE 3 TP2)
3 X-4954-184-1 PANEL ASSY, LOADING (DVD)
4 A-4475-600-A DSP BOARD, COMPLETE (US,CND)
4 A-4475-638-A DSP BOARD, COMPLETE (AEP,UK)
4 A-4475-962-A DSP BOARD, COMPLETE (TH)
4 A-4475-982-A DSP BOARD, COMPLETE
(AUS,E,E91,EA,MX,SP,MY)
5 1-680-190-11 SUB TRANS BOARD
6 4-231-828-11 CASE
7 4-236-826-01 PANEL, BACK (US)
7 4-236-826-11 PANEL, BACK (CND)
7 4-236-826-21 PANEL, BACK (AEP,UK)
7 4-236-826-31 PANEL, BACK (SP,MY)
7 4-236-826-41 PANEL, BACK (E)
7 4-236-826-51 PANEL, BACK (MX)
7 4-236-826-61 PANEL, BACK (EA)
7 4-236-826-71 PANEL, BACK (AUS)
7 4-236-826-81 PANEL, BACK (TH)
7 4-236-826-91 PANEL, BACK (E91)
8 3-701-748-00 CLAMP
* 9 3-378-109-01 CUSHION, SARANET
10 4-231-805-02 KNOB (MIC) (AUS,E,E91,EA,MX,SP,MY,TH)
11 4-231-835-01 BRACKET (DVD)
12 A-4727-088-A MB BOARD, COMPLETE (TH)
12 A-4727-126-A MB BOARD, COMPLETE (US,CND)
12 A-4727-147-A MB BOARD, COMPLETE (AEP,UK)
12 A-4727-152-A MB BOARD, COMPLETE (EA)
12 A-4727-167-A MB BOARD, COMPLETE (SP,MY)
12 A-4727-172-A MB BOARD, COMPLETE (AUS)
12 A-4727-203-A MB BOARD, COMPLETE (E,MX)
12 A-4727-272-A MB BOARD, COMPLETE (E91)
13 1-682-902-11 VIDEO BOARD
14 1-823-367-11 WIRE (FLAT TYPE) (9 CORE)
15 1-823-370-11 WIRE (FLAT TYPE) (6 CORE)
16 1-823-368-11 WIRE (FLAT TYPE) (25 CORE)
M961 1-763-072-11 FAN, DC
