HCD-DZ370/DZ560/DZ570/DZ660/DZ777
SECTION 7
EXPLODED VIEWS
1 3-273-758-01 CASE (DSR)
2 3-363-099-22 SCREW (CASE 3 TP2)
3 3-704-515-32 SCREW (BV/RING)
4 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) (DZ560/DZ660)
4 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)
(DZ370/DZ570/DZ777)
0 5 1-769-079-61 CORD, POWER (KR)
0 5 1-827-597-42 CORD, POWER (TW)
0 5 1-834-965-11 CORD, POWER (MX)
0 5 1-834-966-21 CORD, POWER (AEP,E3,E12,E15,E32,PX)
0 5 1-834-967-21 CORD, POWER (AUS)
0 5 1-835-078-21 CORD, POWER (UK)
6 3-703-244-00 BUSHING (2104), CORD
7 2-677-839-01 +PWH 3X8 (SUMITITE)
8 3-077-331-21 +BV 3 (3-CR)
9 3-273-727-01 PANEL, LOADING (DSR)
10 3-077-331-11 +BV 3 (3-CR)
11 1-828-350-11 WIRE (FLAT TYPE) (17 CORE)
0 12 1-569-008-22 ADAPTOR, CONVERSION 2P (E15,E32,PX)
13 A-1438-875-A S-AIR-CON BOARD, COMPLETE
FAN3001 1-787-331-11 FAN, D.C.
TU401 1-693-759-11 TUNER UNIT (FM/AM) (ANTENNA) (AEP,UK)
TU401 1-693-760-11 TUNER UNIT (FM/AM) (ANTENNA) (KR)
TU401 1-693-761-11 TUNER UNIT (FM/AM) (ANTENNA)
(EXCEPT AEP,UK,KR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-682-547-04 SCREW +B 3X6
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Abbreviation
AUS : Australian model
E3 : 240 V AC Area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110 – 240V AC area in E model
KR : Korean model
MX : Mexican model
TW : Taiwan model

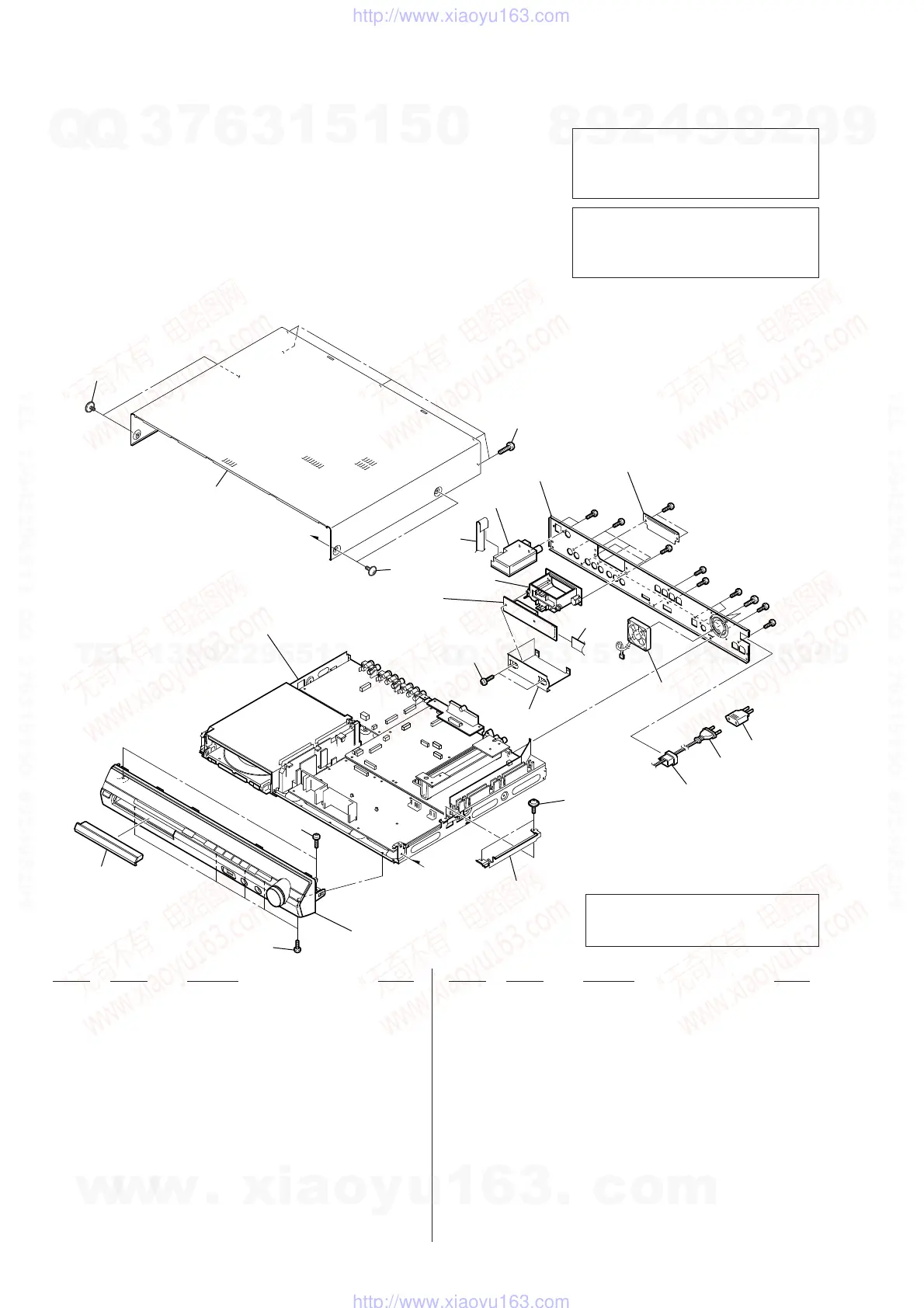

7-1. OVERALL SECTION
Note: If the wire (fl at type) was replaced,
fold it some as the wire (fl at type)
before replacement.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
1
2
2
10
11
4
3
TU401
#1
#1
#1
#1
#1
#1
#1
#4
#3
#2
FAN3001
not supplied
not supplied
not supplied
not supplied
not supplied
front panel section
chassis section
5
12
13
6
7
8
8
9
"
"
