Sony HCD-DZ500F - 5-9. PRINTED WIRING BOARD - MAIN SECTION (SIDE B) -

3434
HCD-DZ500F
HCD-DZ500F

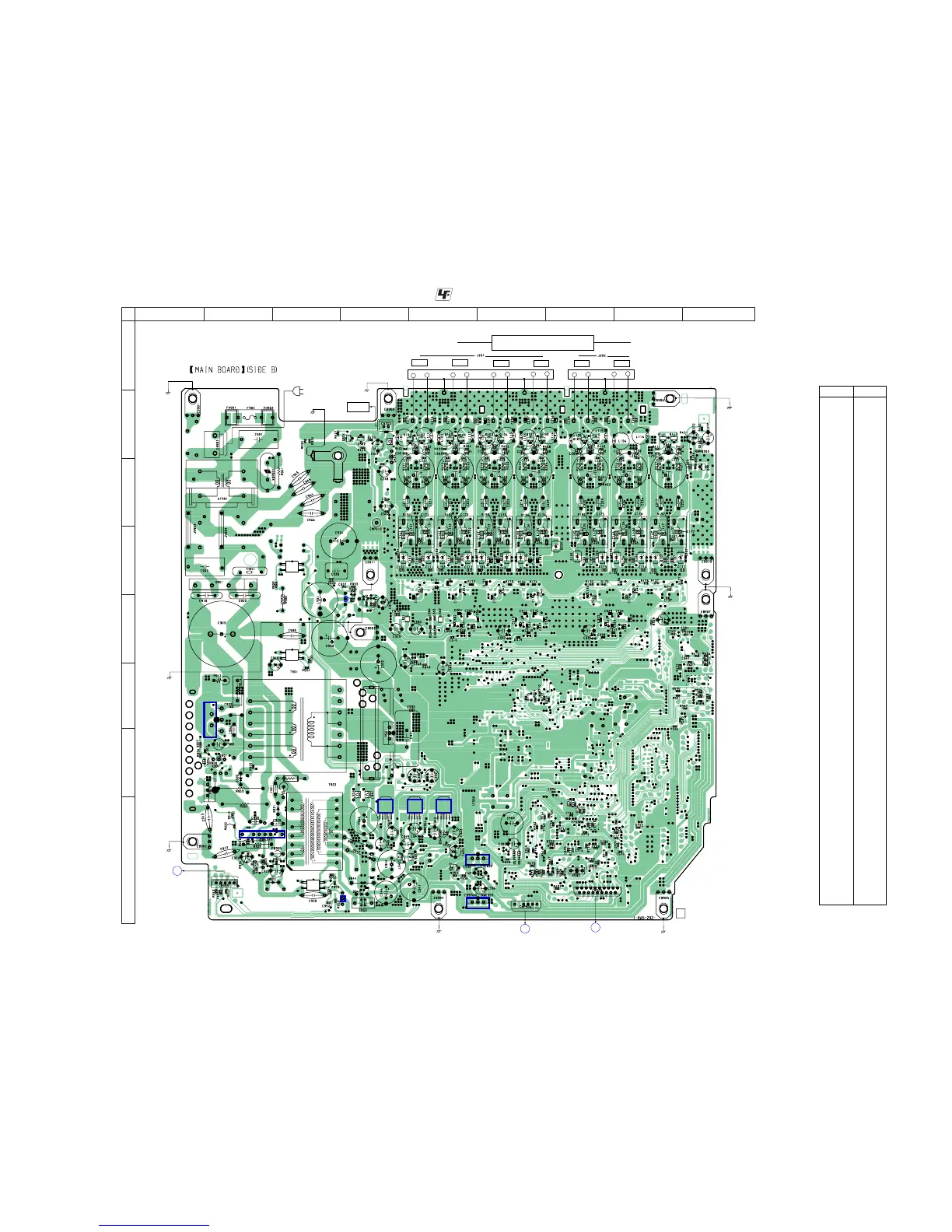

5-9. PRINTED WIRING BOARD – MAIN SECTION (SIDE B) –
• See page 21 for Circuit Boards Location.
IC943
IC951
IC921
IC901
PC901
IC942
IC941
IC931
IC516
IC515
PC902
PC903
(CHASSIS)
(CHASSIS)
1
3
EE
12
(CHASSIS)
(CHASSIS)
EP909
FAN
AC
IN
E
E
E
E
E
1
2
4
5
E
MAIN TRANSFORMER
SUB TRANSFORMER
1
E
1
5
1
3
1
5
5
1
5
1
(CHASSIS)
H/P BOARD
CNP803
(Page 44)
H
(CHASSIS)
13
1
5
E
DMB10
BOARD
CN401
(Page 27)
B
FL BOARD
CN801
(Page 42)
E
19
18
1
2
(CHASSIS)
1
3
C120
(CHASSIS)
(CHASSIS)
E
E
E
E
EE
E
E
+
–
CENTER
SPEAKER
FRONT:ONLY FOR SS-TS46 SURROUND:ONLY FOR SS-TS46B
CENTER:ONLY FOR SS-CT46 WOOFER:ONLY FOR SS-WS42
+
–
WOOFER
+
–
SURR R
+
–
SURR L
+
–
+
–
FRONT R
FRONT L
R535
EXCEPT RU
R536
RU
R584
14
C108
L107
C109
R920
C967
C968
C958
C960
R921
R929
12
A
B
C
D
E
G
H
F
34567 9
8
• Semiconductor
Location
Ref. No. Location
D101 D-4
D102 D-5
D103 D-6
D104 D-6
D105 D-7
D106 D-8
D107 D-8
D201 D-5
D202 D-5
D203 D-6
D204 D-7
D205 D-7
D206 D-8
D207 D-9
D303 B-9
D304 B-9
D504 H-7
D505 H-6
D506 H-6
D901 D-2
D905 G-2
D906 G-2
D907 G-1
D908 G-2
D909 D-3
D910 H-2
D913 G-2
D921 H-3
D922 H-3
D924 H-2
D931 F-4
D941 H-4
D942 H-4
D943 H-4
D944 H-4
D945 H-5
IC515 H-5
IC516 H-5
IC901 F-1
IC921 H-3
IC931 E-4
IC941 G-5
IC942 G-5
IC943 G-4
IC951 H-4
Q101 B-4
Q102 B-5
Q103 B-5
Q104 B-5
Q105 B-6
Q106 B-6
Q107 B-6
Q108 B-6
Q109 B-7
Q110 B-7
Q111 B-8
Q112 B-8
Q301 C-9
Q302 B-4
Q303 B-4
Q304 B-4
Q901 G-2
Q921 H-2
Q945 H-5
:Uses unleaded solder.
