Sony HCD-DZ500F - 3-2. CASE, FRONT PANEL ASSY

9
HCD-DZ500F

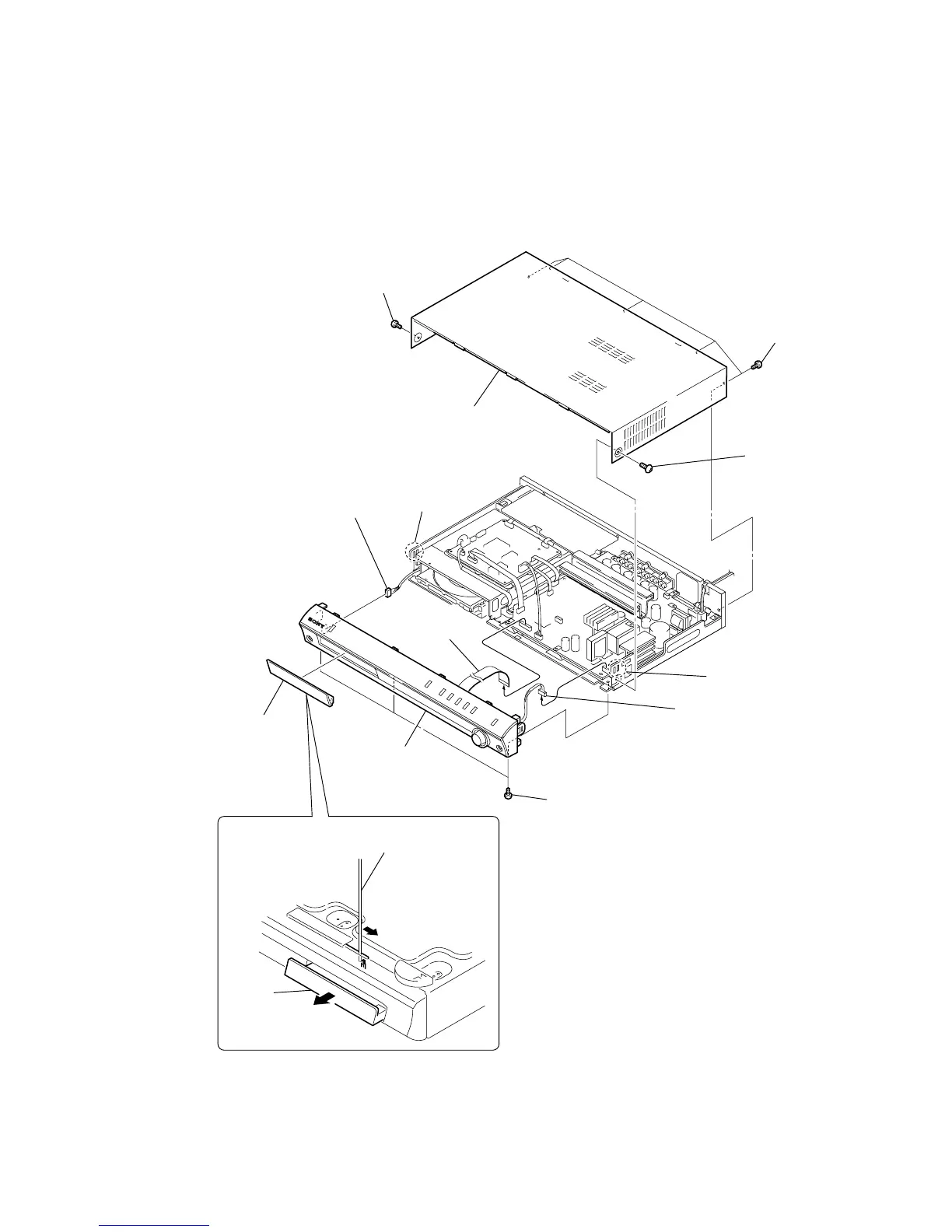

3-2. CASE, FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
DVD lid
1 The lever is moved in the direction
of the arrow with the thin rod.
2
3 DVD lid assy
4 screw (CASE3 TP2)
5 screw
(CASE3 TP2)
6 five screws (+BV 3)
7 case
qf front panel assy
8 three screws (+BV 3)
qs w ire (flat type)
19p(CN509)
qd connector
(CNP309)
qa connector
(CNP602)
0 claw
9 claw
